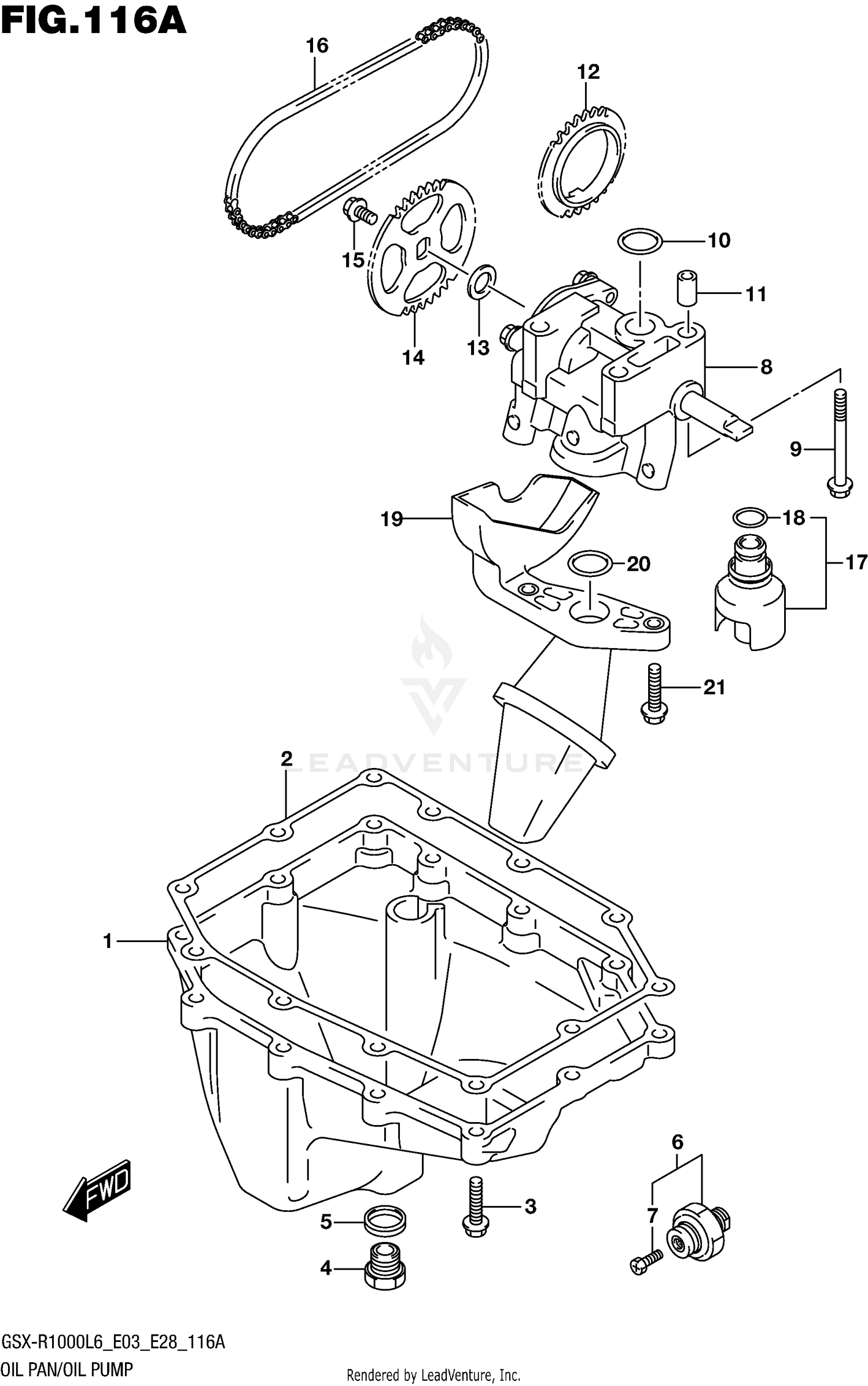

Oil Pan/oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PAN, OIL
11511-47H00
|
$293.68 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, OIL PAN
11489-47H00
|
$26.14 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
01547-0625A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG (14X20)
09247-14036
|
$7.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.83 | ||
|
Unavailable |
|||
|
#6
SWITCH ASSY,OIL PRESSURE
37820-33D10
Superseded by 37820-33D11
|
$27.59 | ||
|
Unavailable |
|||
|
#7
.BOLT,OIL PRESSURE SWITCH
37822-33D00
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
PUMP ASSY, OIL
16400-47H10
|
$316.27 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
01547-0650A
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING (D:2.4,ID:15.8)
09280-15007
|
$2.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PIN
04211-09149
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPROCKET, DRIVE
16321-01H00
|
$86.78 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHIM (10X18X0.5)
09181-10158
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPROCKET, DRIVEN
16331-47H00
|
$32.41 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (6X12)
09103-06285
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#16
CHAIN,OIL PUMP DRIVE
16310-47H00
|
$41.10 | ||
|
Available to order. Add to View Price |
|||
|
#17
VALVE ASSY, OIL RELIEF
16440-47H00
|
$81.27 | ||
|
Available to order. Add to View Price |
|||
|
#18
.O RING (D:1.9,ID:13)
09280-13004
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
STRAINER, ENGINE OIL
16520-47H01
|
$41.85 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING (D:2.62,ID:20.3)
09280-19008
|
$6.90 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
01550-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
