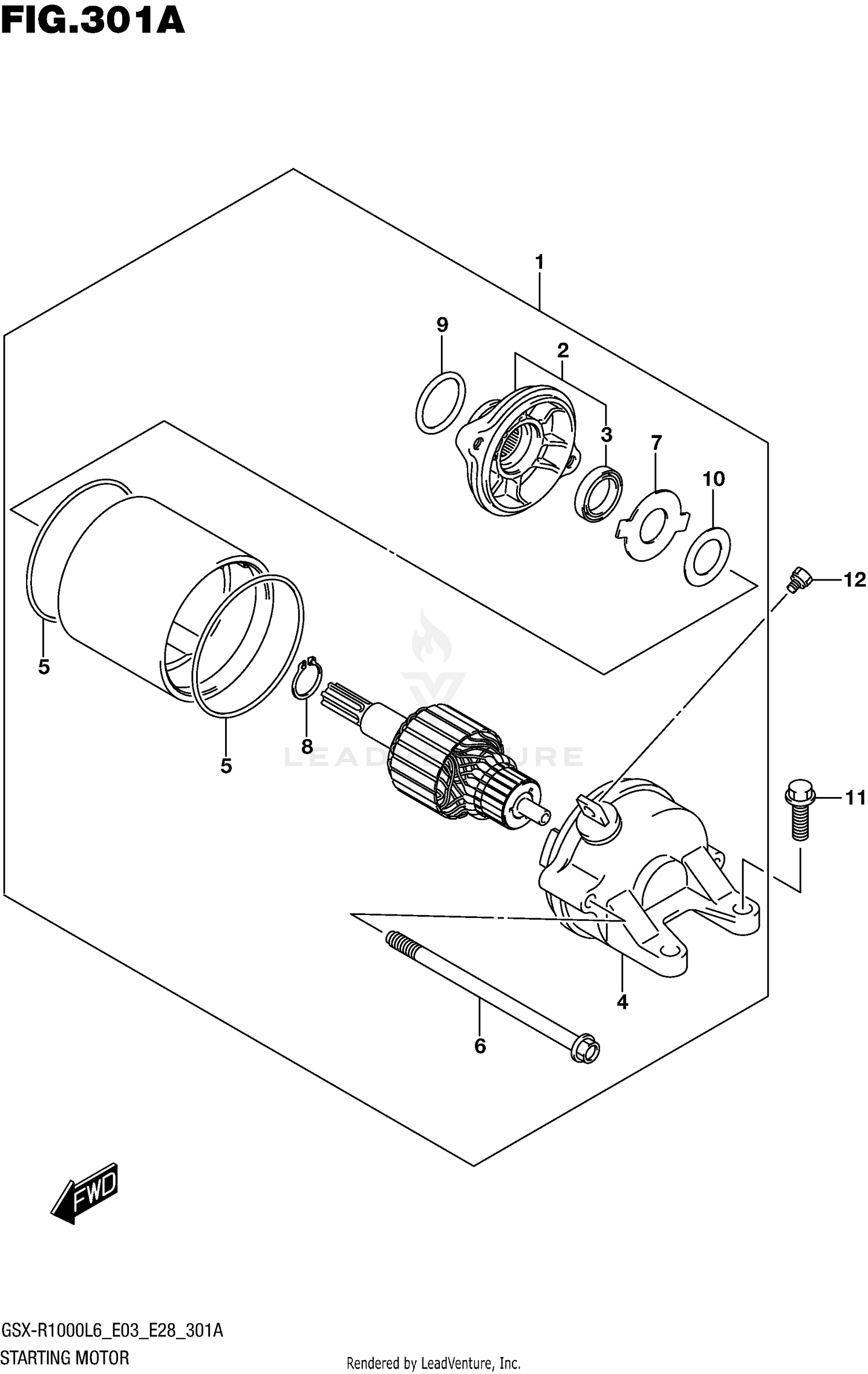

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MOTOR ASSY, STARTING
31100-47H00
|
$858.23 | ||
|
Available to order. Add to View Price |
|||
|
#2
.HOUSING ASSY
31150-40F01
|
$129.27 | ||
|
Available to order. Add to View Price |
|||
|
#3
..OIL SEAL
31153-49210
|
$27.32 | ||
|
Available to order. Add to View Price |
|||
|
#4
.FRAME ASSY
31175-40F01
|
$169.71 | ||
|
Available to order. Add to View Price |
|||
|
#5
.O-RING
31264-32C10
|
$16.03 | ||
|
Available to order. Add to View Price |
|||
|
#6
.BOLT
31281-40F00
|
$11.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
.PLATE, LOCK
31361-32C10
|
$2.41 | ||
|
Unavailable |
|||
|
#8
.RING, SNAP
31361-10200
|
$2.30 | ||
|
Unavailable |
|||
|
#9
.O RING
31156-40F01
|
$13.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
.SHIM
31361-38300
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (6X20)
09103-06223
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW (5X8)
09137-05004
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
