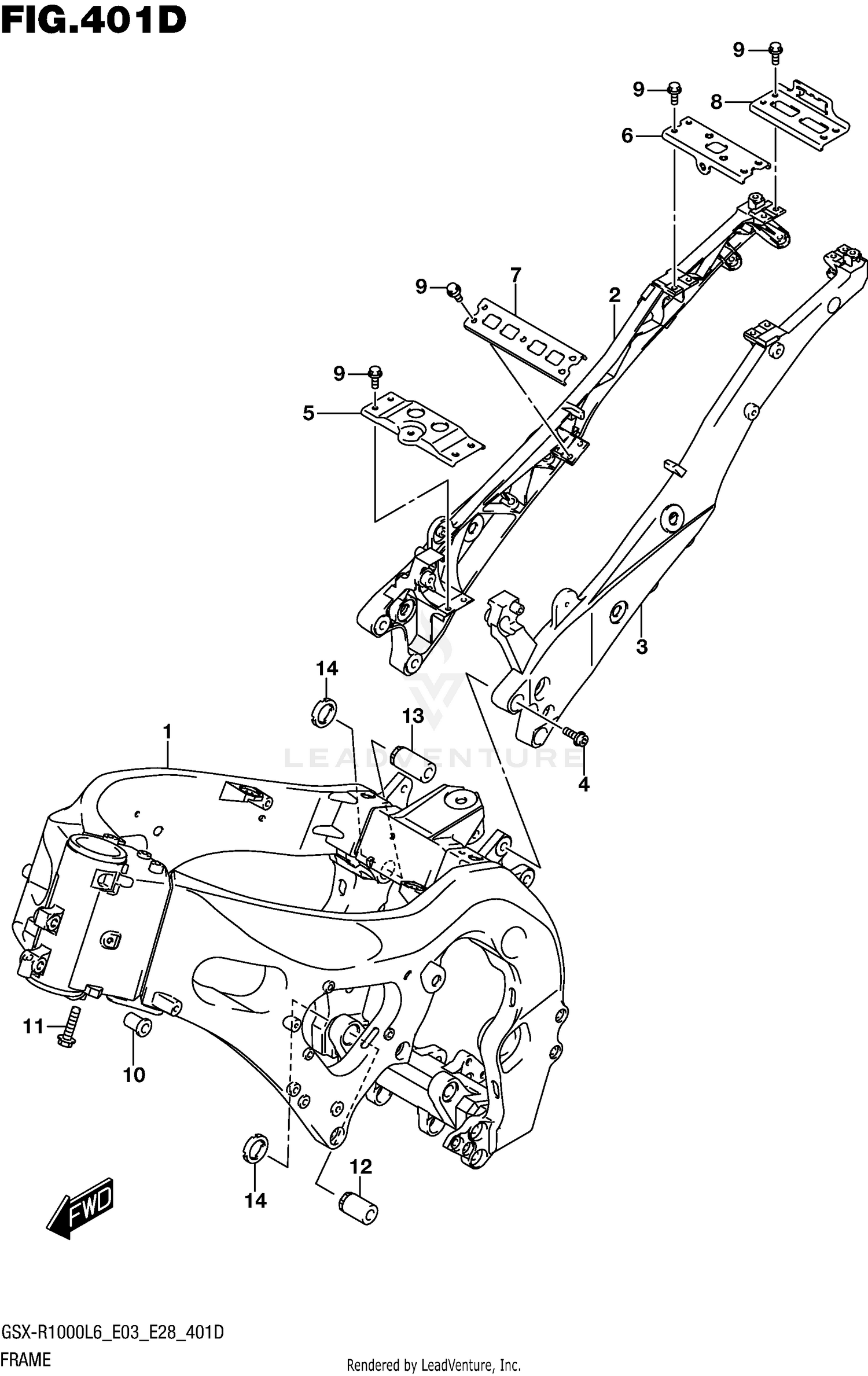

Frame (gsx-r1000al6 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME (BLACK)
41100-47H30-YAP
|
$4,189.71 | ||
|
Available to order. Add to View Price |
|||
|
#2
RAIL, SEAT RH
41211-47H00
|
$581.07 | ||
|
Available to order. Add to View Price |
|||
|
#3
RAIL, SEAT LH
41221-47H00
|
$497.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT,SEAT RAIL
41233-18G20
|
$11.17 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRIDGE,SEAT RAIL FRONT
41770-01H00
|
$69.01 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRIDGE, UPPER
42730-47H00
|
$49.27 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRIDGE, LOWER
42741-37H00
|
$30.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRIDGE, REAR
42751-47H00
|
$30.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (6X12)
09103-06285
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER, MOUNT
41911-40F01
|
$29.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (8X35)
09103-08512
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, ADJUST
41921-47H00
|
$59.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, ADJUST UPPER
41921-47H10
|
$56.48 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT,CRANK CASE ADJUST BOLT
41922-47H00
|
$42.23 | ||
|
Available to order. Add to View Price |
|||
