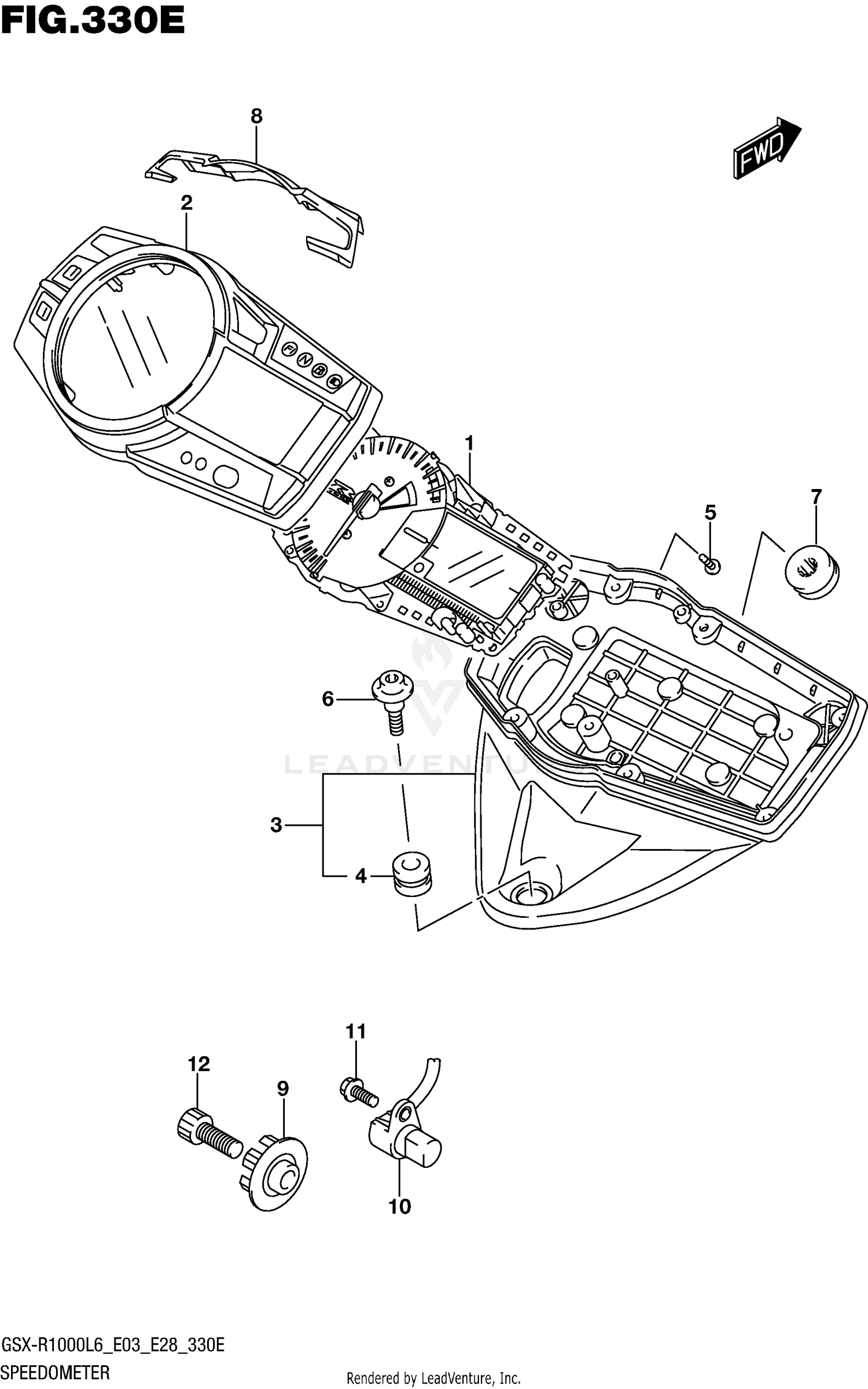

Speedometer (gsx-r1000al6 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COMBINATION METER
34120-47HB0
|
$821.26 | ||
|
Available to order. Add to View Price |
|||
|
#2
CASE ASSY, UPPER
34150-47HB0
|
$162.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CASE ASSY, LOWER
34111-47H00
|
$106.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
.CUSHION, RUBBER
34955-33E00
|
$4.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
.SCREW
09132-03008
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, SPEEDOMETER
34149-18G00
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION,SPEEDOMETER
34955-13E00
Superseded by 34955-13E01
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE
34157-47H00
|
$33.33 | ||
|
Available to order. Add to View Price |
|||
|
#9
ROTOR,SPEED
34981-47H01
|
$28.44 | ||
|
Available to order. Add to View Price |
|||
|
#10
SENSOR, SPEED
34990-35F00
|
$168.77 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
07120-0512B
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
07130-0825A
|
$3.81 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
