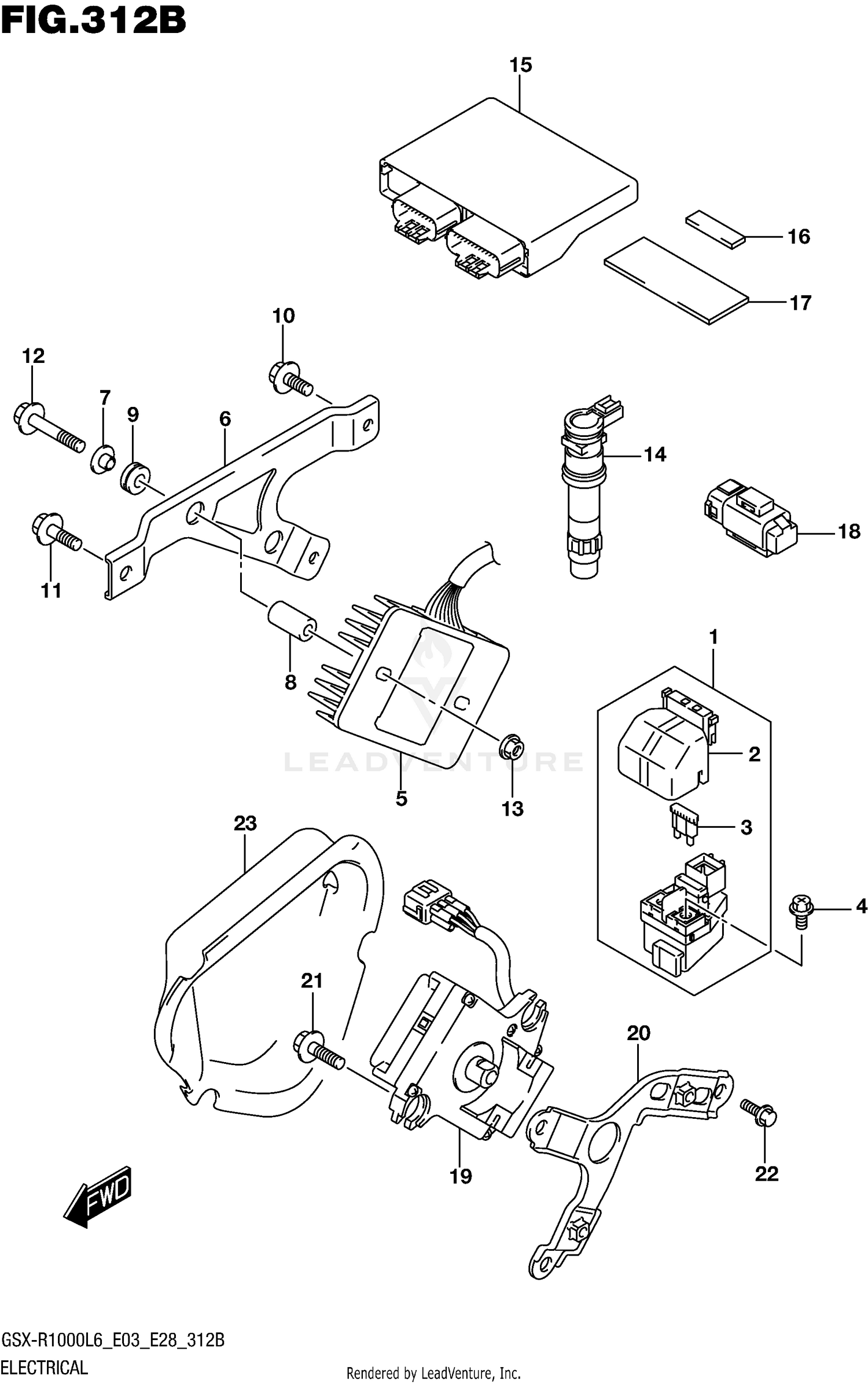

Electrical (gsx-r1000l6 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY, STARTING MOTOR
31800-41G10
|
$118.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
.COVER
31861-38G00
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
.FUSE (30A)
09481-30501
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW (6X8)
09128-06013
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
RECTIFIER ASSY
32800-47H00
|
$338.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, RECT FTG
32831-47H10
|
$44.97 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER (6.2X8.4X6.9)
09180-06325
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER (6.2X14.5X26)
09180-06345
|
$11.18 | ||
|
Available to order. Add to View Price |
|||
|
#9
.CUSHION (8.4X18X6)
09320-08066
|
$10.34 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (6X20)
09103-06286
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01550-0645A
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
08316-1006A
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
COIL ASSY,IGNITION
33410-47H00
|
$199.50 | ||
|
Available to order. Add to View Price |
|||
|
#15
CONTROL UNIT, FI
32920-47HH1
|
$1,842.17 | ||
|
Available to order. Add to View Price |
|||
|
#16
CUSHION, FI CONTROL UNIT
33652-23H20
|
$2.07 | ||
|
Unavailable |
|||
|
#17
PROTECTOR (80X80X2)
33652-34000
Superseded by 33652-07D00
|
$7.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
SENSOR ASSY, FUEL CUT
33960-27G00
|
$124.02 | ||
|
Available to order. Add to View Price |
|||
|
#19
ACTUATOR ASSY
33970-47H01
Superseded by 33970-47H03
|
$465.80 | ||
|
Unavailable |
|||
|
#20
HOLDER, ACTUATOR
33971-47H00
|
$15.62 | ||
|
Unavailable |
|||
|
#21
BOLT (6X25)
09116-06202
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
01547-0612A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#23
COVER, ACTUATOR
33977-47H00
|
$33.38 | ||
|
Available to order. Add to View Price |
|||
