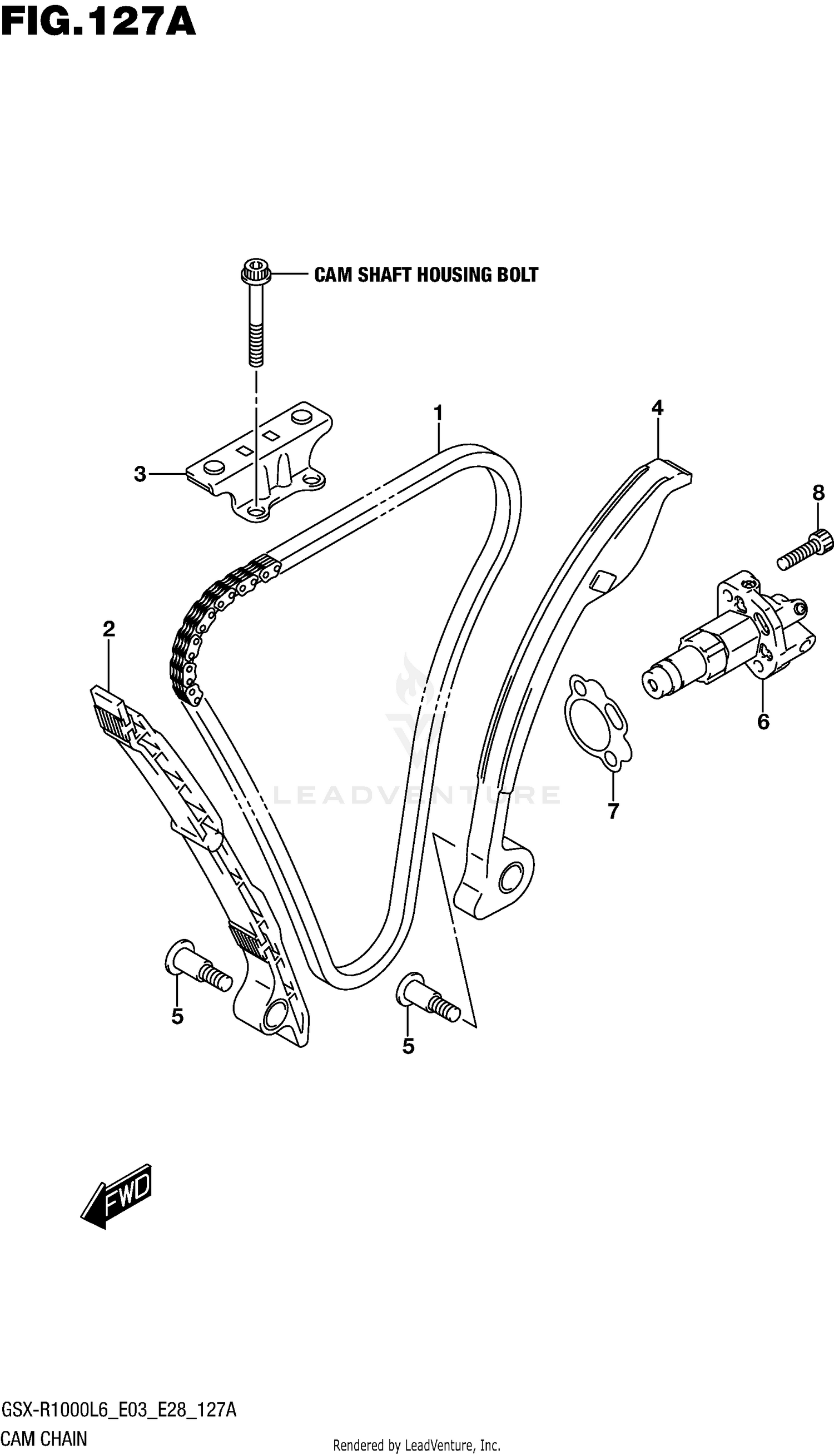

Cam Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN,CAMSHAFT DRIVE
12760-40F01
|
$197.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE,CAM CHAIN
12771-47H00
Superseded by 12771-47H01
|
$47.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE,CAM CHAIN NO.2
12782-35F10
Superseded by 12782-35F11
|
$30.28 | ||
|
Available to order. Add to View Price |
|||
|
#4
TENSIONER, CAM CHAIN
12811-47H00
Superseded by 12811-47H01
|
$92.87 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, CAM CHAIN TENSIONER
12812-31G00
|
$5.92 | ||
|
Available to order. Add to View Price |
|||
|
#6
ADJUSTER ASSY, TENSIONER
12830-47H00
|
$345.28 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET,TENSIONER ADJUSTER
12837-02H00
|
$8.34 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
07130-0625A
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
