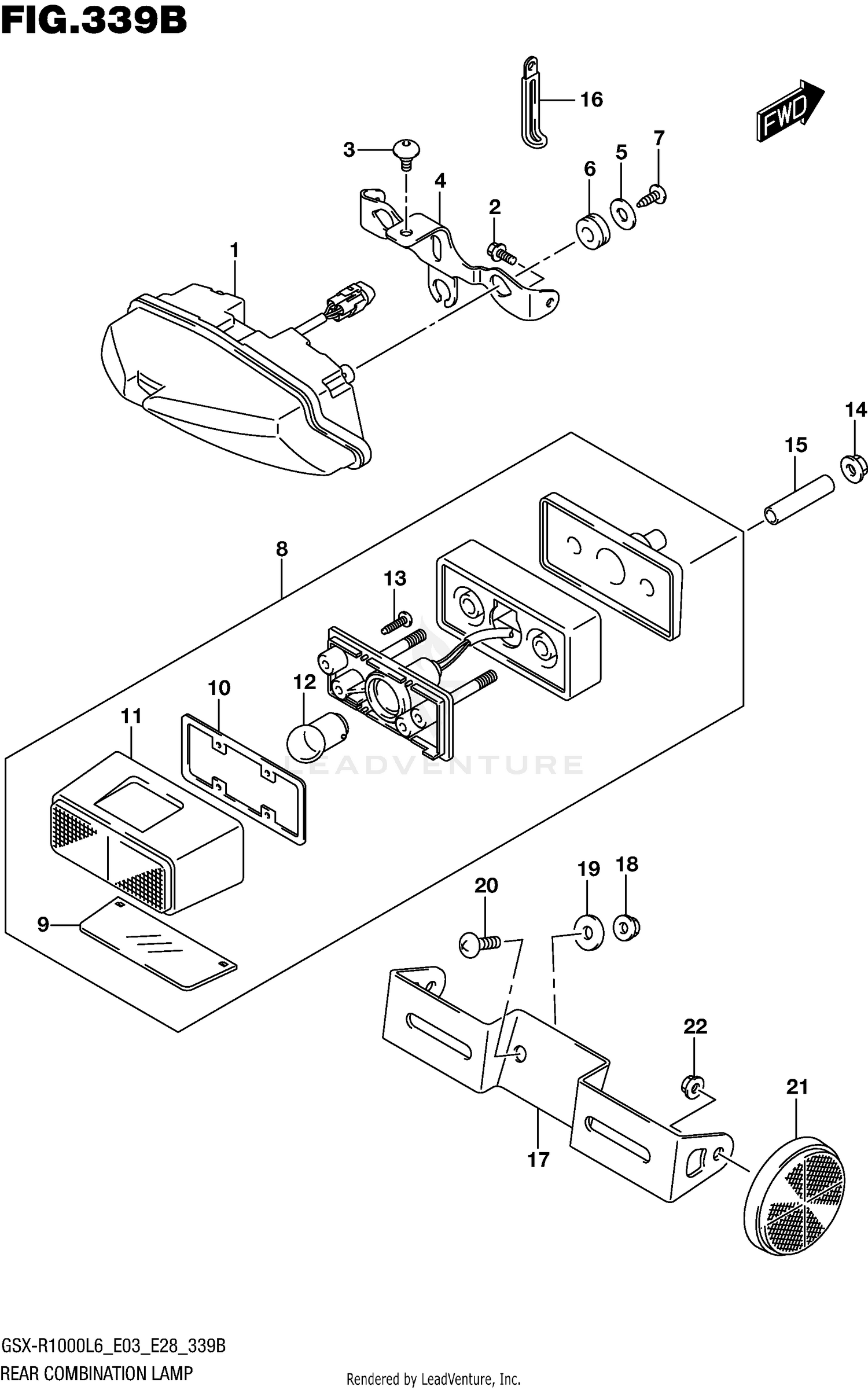

Rear Combination Lamp (gsx-r1000l6 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY,REAR COMB
35710-14JA0
Superseded by 35710-14JC0
|
$141.46 | ||
|
Unavailable |
|||
|
#2
BOLT (5X12)
09106-05031
|
$3.63 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW (6X12)
09139-06152
|
$7.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BRACKET, REARCOMBINATION LAMP
35726-47H00
|
$22.11 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER (5.5X20X1.2)
09160-05501
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION
09320-10049
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
03541-0516A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
LAMP ASSY, LICENSE
35910-41G31
Superseded by 35910-41G32
|
$99.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
.LENS,LICENSE
35912-41G01
|
$15.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
.GASKET
35913-41G00
|
$16.07 | ||
|
Available to order. Add to View Price |
|||
|
#11
.COVER, LICENSE LAMP
35917-41G00
|
$39.86 | ||
|
Available to order. Add to View Price |
|||
|
#12
BULB (12V5W)
09471-12140
Superseded by 09471-12058
|
$1.72 | ||
|
Available to order. Add to View Price |
|||
|
#13
.SCREW
03211-0416A
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
09159-06096
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER (6.5X9X34)
09180-06356
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP (L:45)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#17
BRACKET, LICENSE PLATE
35927-41G30
|
$17.13 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
08316-1006A
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
WASHER (6.5X20X1.2)
09160-06077
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#20
.SCREW
02142-0616A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
REFLECTOR ASSY,RR SIDE
35970-14A20
|
$20.07 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
08316-1005A
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
