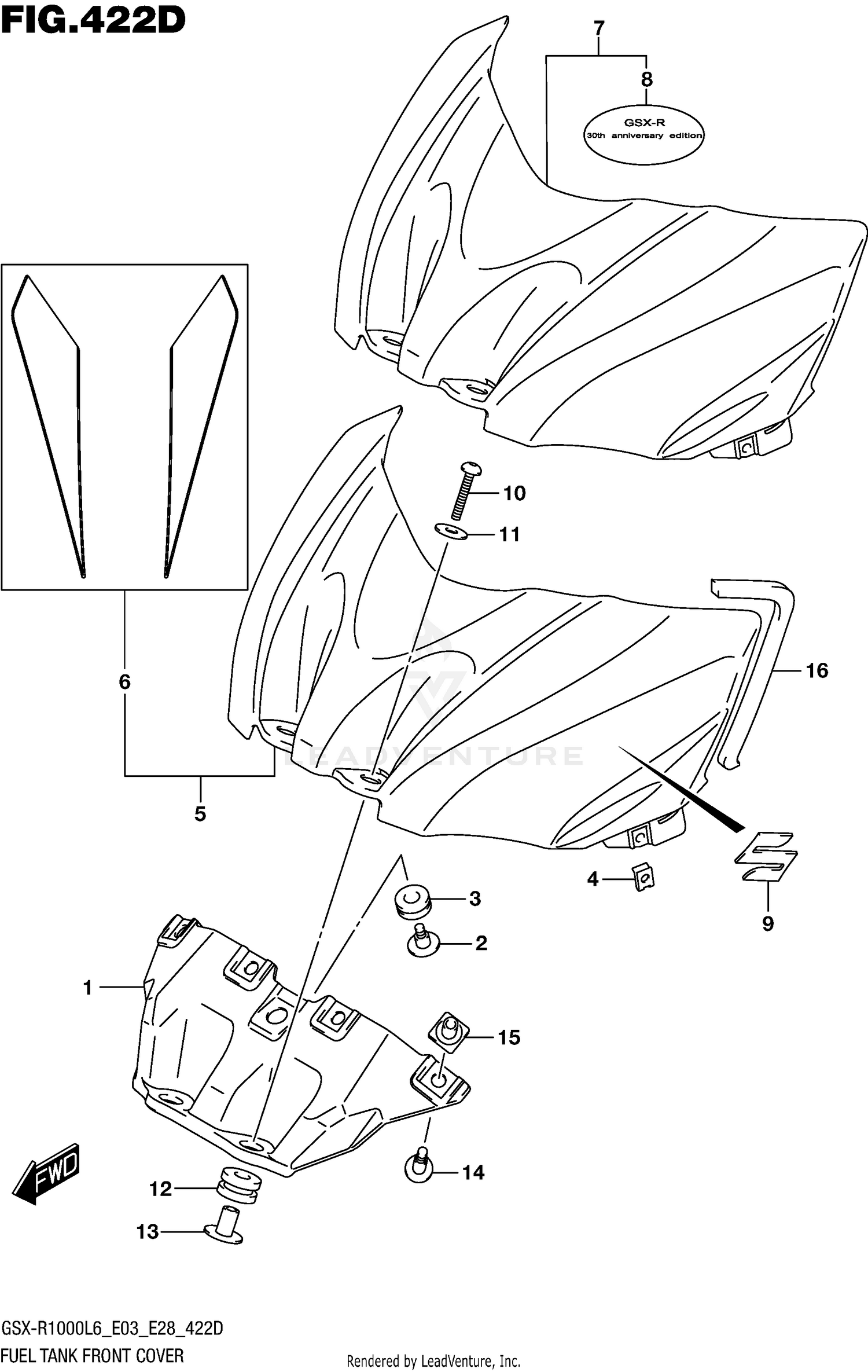

Fuel Tank Front Cover (gsx-r1000al6 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, FRONT
44521-47H00
|
$231.07 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW (5X16.4)
09139-05078
|
$4.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
CUSHION (8.5X20X8)
09320-08021
Superseded by 09320-08510
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
09148-05052
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, FRONT (BLUE)
44290-47H20-YSF
|
$227.23 | ||
|
Available to order. Add to View Price |
|||
|
#6
.TAPE SET, FUEL TANK COVER
68120-47H10-AGQ
|
$50.59 | ||
|
Available to order. Add to View Price |
|||
|
#7-1
COVER, FRONT (BLUE)
44290-47H40-YKY
|
|||
|
Unavailable |
|||
|
#7-2
COVER, FRONT (RED)
44290-47H40-YVZ
|
|||
|
Unavailable |
|||
|
#8
.EMBLEM, FUEL TANK COVER
68121-47H10-QES
|
$28.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
EMBLEM,S
68111-47HA0
|
$52.21 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW (6X40)
09139-06105
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
09160-06012
Superseded by 09160-06054
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION (10X22X13)
09320-10050
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER
44512-47H00
|
$14.47 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW (6X10)
09139-06181
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
44523-47H00
|
$13.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
.CUSHION, FUEL TANK COVER
44277-37H00
|
$6.88 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLOR :
SPECIAL NOTE
|
|||
|
Unavailable |
|||
|
#17
AJP=YKY(BLUE),YWW(WHITE)
SPECIAL NOTE
|
|||
|
Unavailable |
|||
|
#17
:
SPECIAL NOTE
|
|||
|
Unavailable |
|||
|
#17
JSP=YVB(BLACK),YVZ(RED)
SPECIAL NOTE
|
|||
|
Unavailable |
|||
