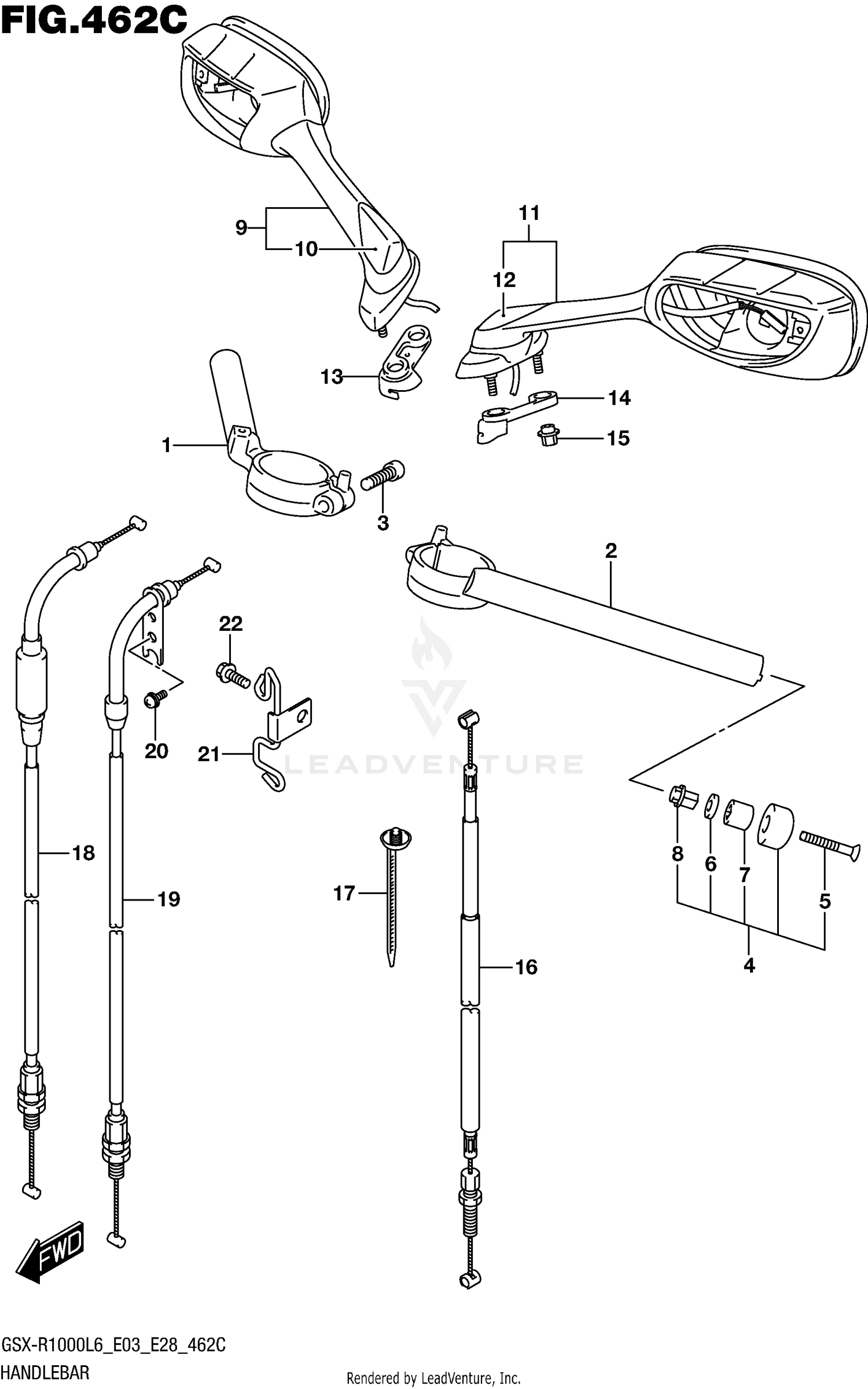

Handlebar (gsx-r1000l6 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR, RH
56111-47H10
|
$184.18 | ||
|
Available to order. Add to View Price |
|||
|
#2
HANDLEBAR, LH
56151-47H11
|
$161.68 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (8X32)
09106-08185
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
BALANCER SET,HANDLEBAR
56200-41822
Superseded by 56200-41823
|
$40.19 | ||
|
Available to order. Add to View Price |
|||
|
#5
.SCREW
02122-0640B
|
$3.46 | ||
|
Available to order. Add to View Price |
|||
|
#6
.WASHER, (6.5X16X4)
09160-06131
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#7
EXPANDER, HANDLE BALANCER
56272-10G00
Superseded by 56272-10G01
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#8
.NUT
56273-10G10
|
$11.17 | ||
|
Available to order. Add to View Price |
|||
|
#9
MIRROR ASSY,REAR VIEW RH
56500-47H01
|
$220.36 | ||
|
Available to order. Add to View Price |
|||
|
#10
.CAP,RH
56515-47H01
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#11
MIRROR ASSY,REAR VIEW LH
56600-47H01
|
$220.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
.CAP,LH
56615-47H01
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION, RH
94575-47H00
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION, LH
94576-47H00
|
$16.37 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT,REAR VIEW MIRROR
56619-41G01
|
$12.02 | ||
|
Available to order. Add to View Price |
|||
|
#16
CABLE ASSY, CLUTCH
58200-47H20
|
$66.08 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP (L:154)
09407-17403
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
|
#18
CABLE ASSY,THRO
58300-47H00
Superseded by 58300-47H01
|
$52.37 | ||
|
Available to order. Add to View Price |
|||
|
#19
CABLE ASSY,THRO
58300-47H10
Superseded by 58300-47H11
|
$49.37 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW (5X10)
09125-05042
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#21
GUIDE, THROTTLE CABLE
58620-47H00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
01547-0612A
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
