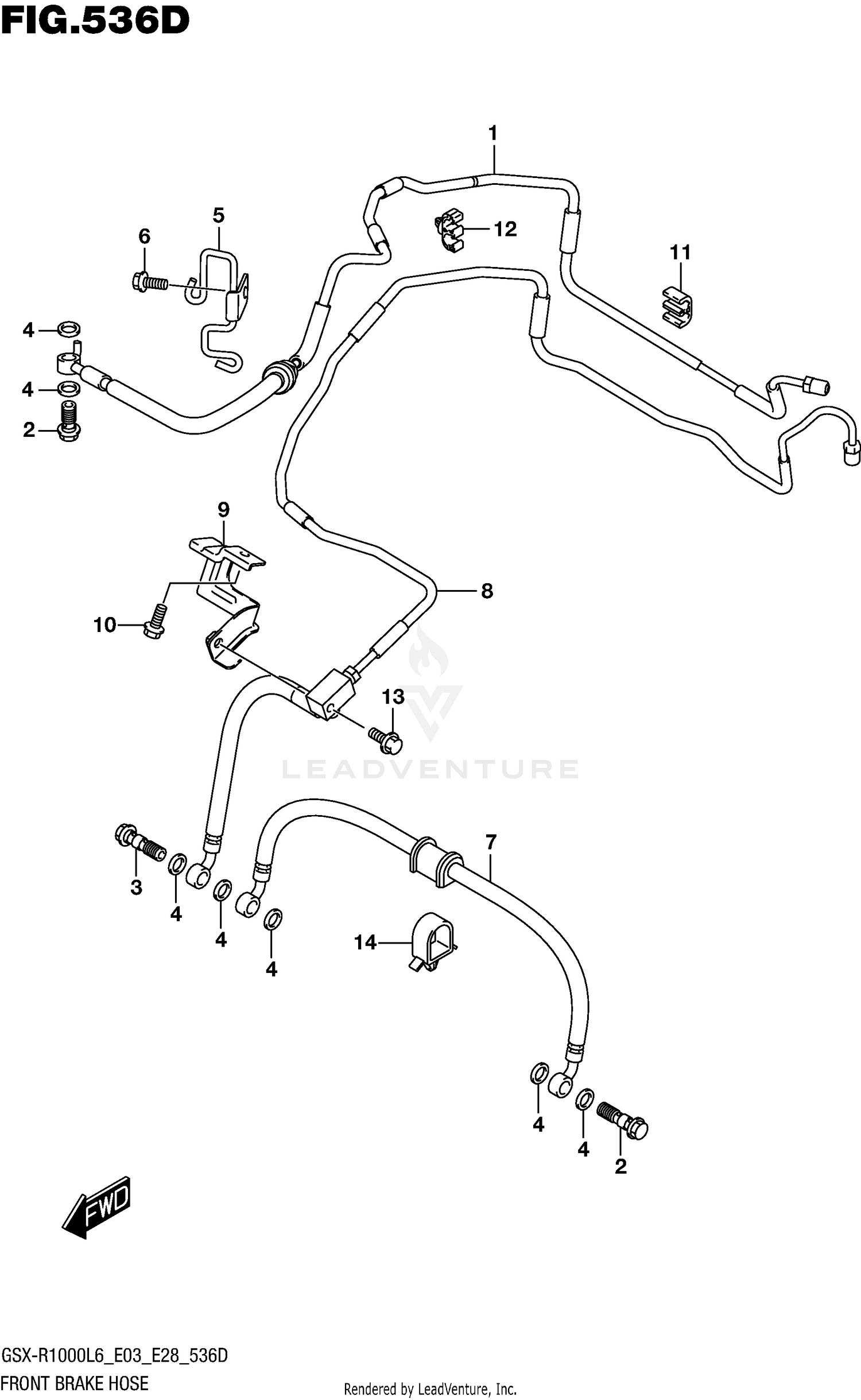

Front Brake Hose (gsx-r1000al6 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE ASSY, FR MASTER TO UNIT
59200-47H00
|
$118.19 | ||
|
Available to order. Add to View Price |
|||
|
#2
UNION
09360-10062
|
$8.08 | ||
|
Available to order. Add to View Price |
|||
|
#3
UNION
09360-10064
|
$8.08 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER (10X15X1.5)
09161-10009
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP, FR BRAKE HOSE
58620-47H10
|
$23.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
01547-0612A
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
HOSE,FR BRAKE NO.2
59240-14J00
|
$131.03 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE ASSY, FR UNIT TO CLPR
59400-47H00
|
$212.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP, FR BRAKE HOSE
59260-47H10
|
$20.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01547-0616B
|
$3.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
CLAMP
09403-06324
|
$2.48 | ||
|
Unavailable |
|||
|
#12
CLAMP
09403-07335
|
|||
|
Unavailable |
|||
|
#13
BOLT
01547-0625A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
09403-16412
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
