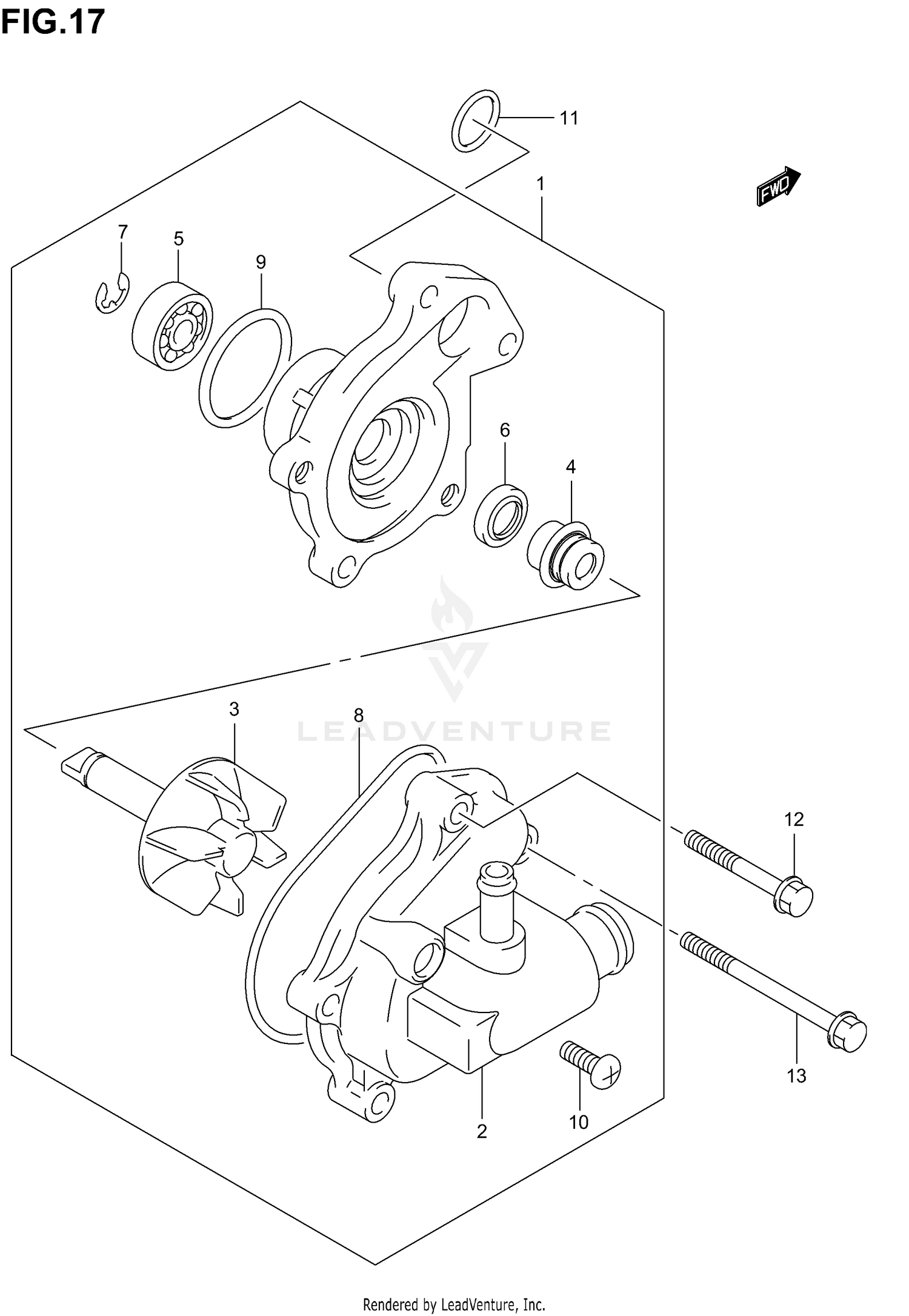

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY,WATER
17400-14G01
Superseded by 17400-14G02
|
$271.72 | ||
|
Available to order. Add to View Price |
|||
|
#2
CASE ASSY
17411-14G00
|
$58.18 | ||
|
Unavailable |
|||
|
#3
IMPELLER
17491-21F00
|
$53.27 | ||
|
Available to order. Add to View Price |
|||
|
#4
.SEAL,MECHANICAL
17470-02F10
Superseded by 17470-02F11
|
$37.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING, 10X26X8
09262-10014
|
$20.17 | ||
|
Available to order. Add to View Price |
|||
|
#6
.OIL SEAL (10X21X5)
09283-10004
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#7
.E RING
08332-11086
Superseded by 08332-1108A
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#8
.O RING
17418-14F00
Superseded by 17418-14F01
|
$6.06 | ||
|
Available to order. Add to View Price |
|||
|
#9
.O RING
17435-33400
|
$19.74 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
02112-06163
Superseded by 02112-0616A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
O RING (D:2.4,ID:21.8)
09280-22001
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, WATER PUMP
01547-06353
Superseded by 01547-0635B
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01547-06603
Superseded by 01547-0660B
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
