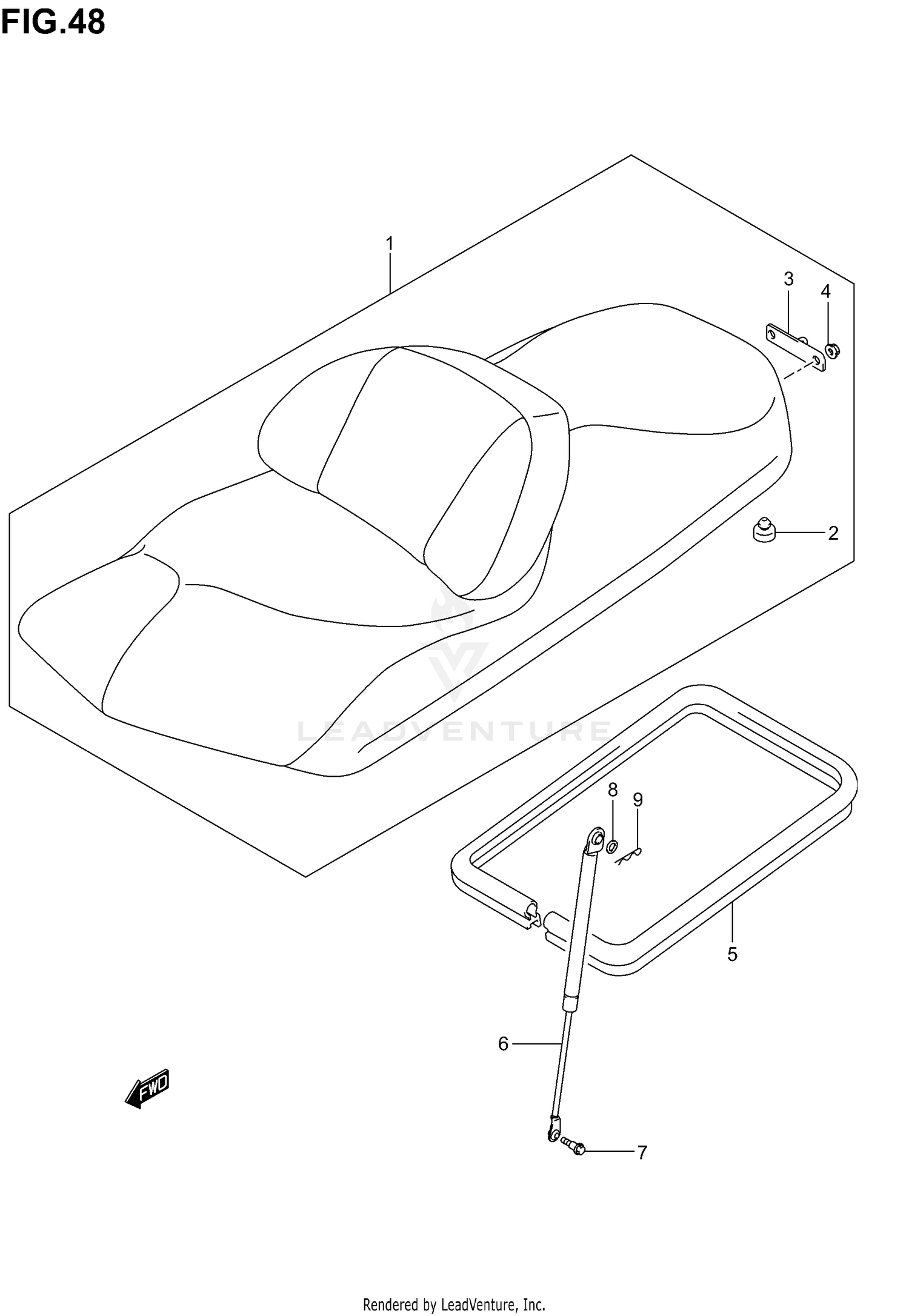

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT ASSY
45100-15G00-FC8
Superseded by 45100-15G04-FC8
|
$1,147.69 | ||
|
Available to order. Add to View Price |
|||
|
#1
NO DESCRIPTION AVAILABLE
45100-15G10-BUS
Superseded by 45100-15G11-BUS
|
$886.93 | ||
|
Unavailable |
|||
|
#2
CUSHION, FRONT
45149-09B00
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
|
#3
STRIKER,SEAT LO
45210-14G00
Superseded by 45210-14G01
|
$31.91 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
08313-20063
Superseded by 08313-2006A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
MOLDING, SEAT
45211-14G00
|
$58.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER SET,SEAT
45270-15G00
Superseded by 45200-15G00
|
$148.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
09111-06071
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER,LOCK
08322-01083
Superseded by 08322-0108A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN
09385-08003
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
