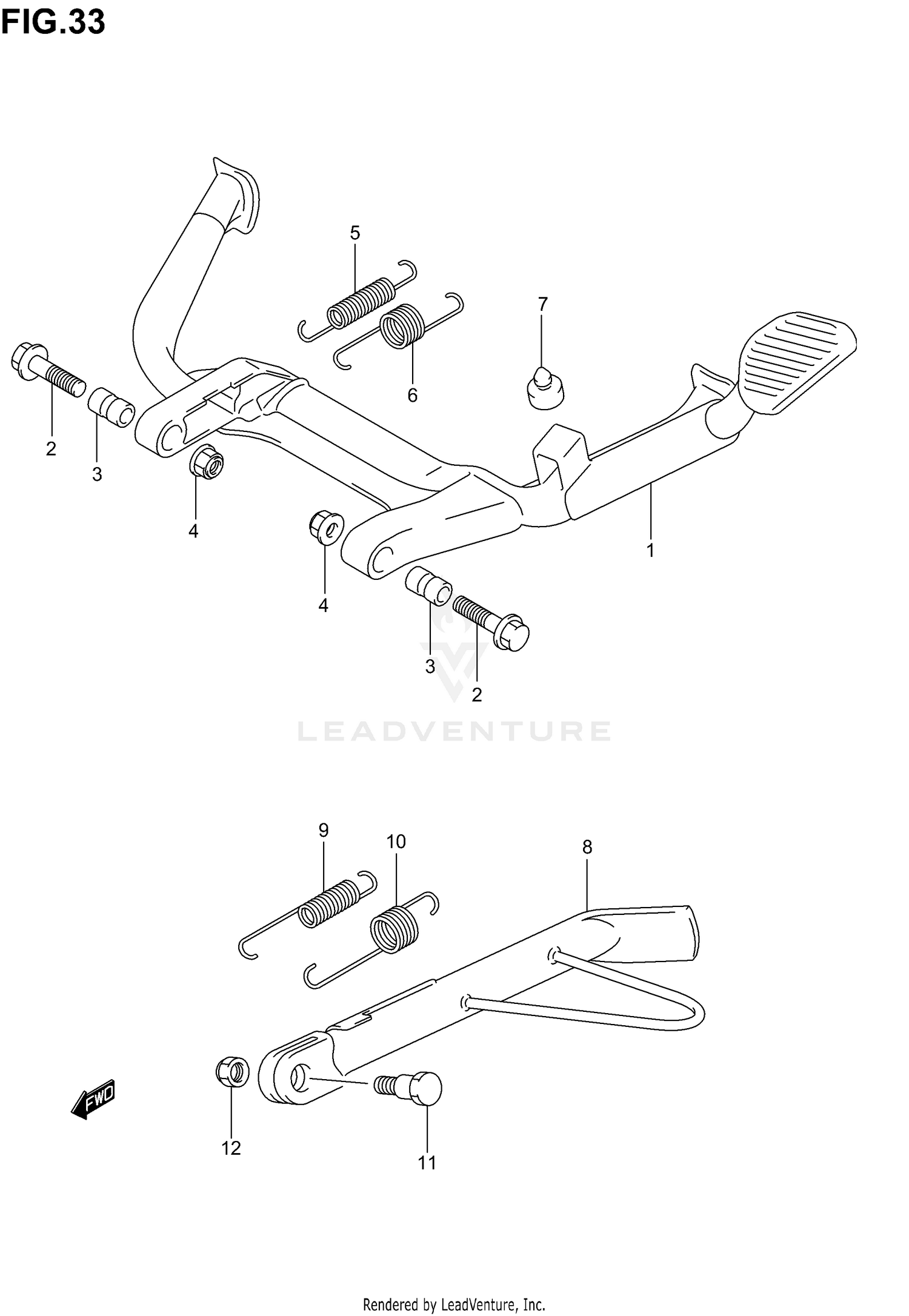

Stand Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, CENTER
42100-14G00
|
$337.20 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
09103-10218
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER, PIVOT
42211-15F00
|
$11.13 | ||
|
Unavailable |
|||
|
#4
NUT
08319-31103
Superseded by 08319-3110A
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, INNER
09443-15041
|
$6.26 | ||
|
Unavailable |
|||
|
#6
SPRING, OUTER
09443-22015
|
$7.08 | ||
|
Unavailable |
|||
|
#7
CUSHION
09321-10001
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAND, PROP
42310-15G00
|
|||
|
Unavailable |
|||
|
#8
STAND, PROP
42310-15G10
|
$139.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, INNER
09443-14069
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, OUTER
09443-19012
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
09111-10027
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
09159-10097
|
$7.13 | ||
|
Available to order. Add to View Price |
|||
