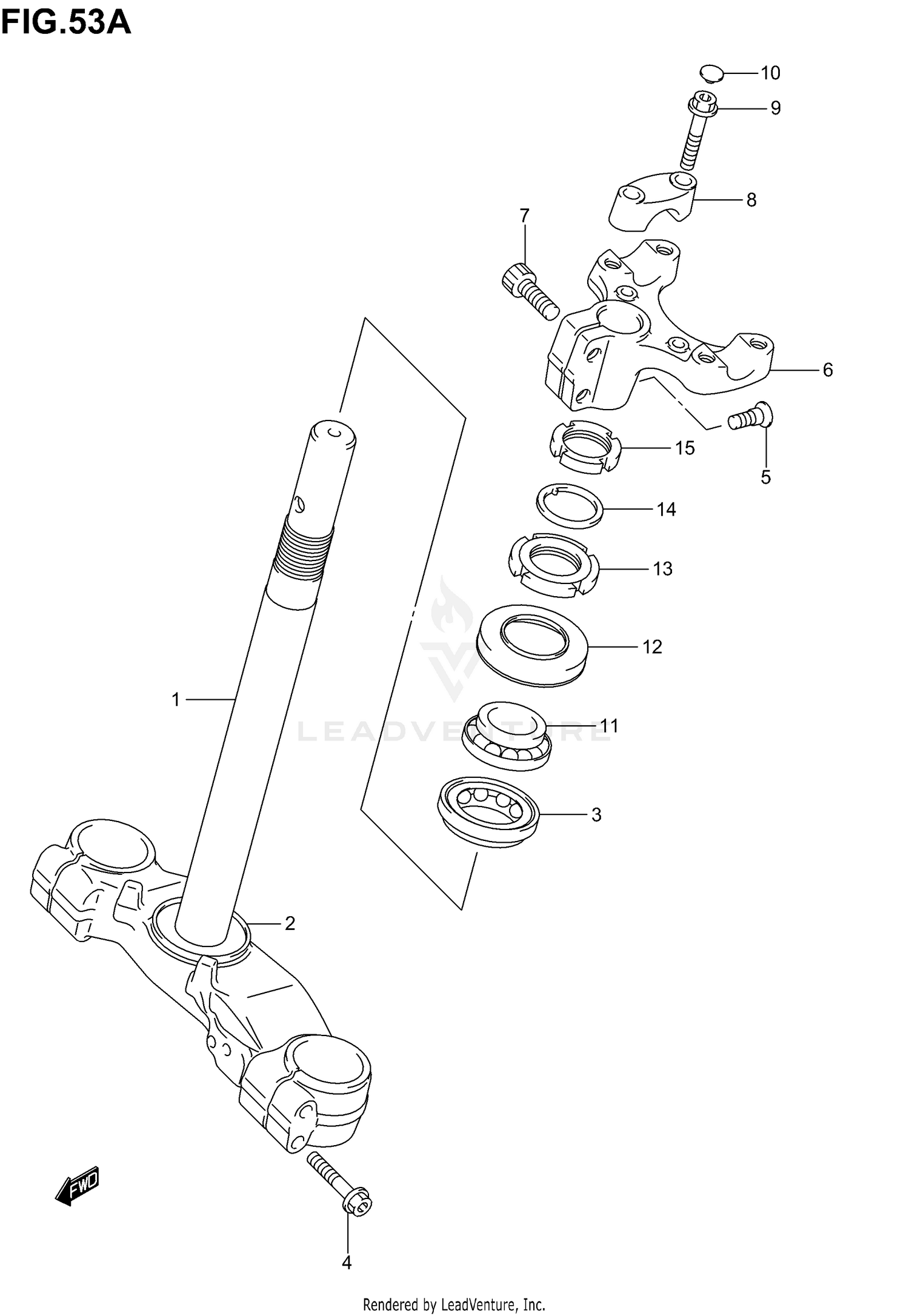

Steering Stem (an400sk5/sk6) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, FRONT FORK UNDER
51410-14FD0
|
$928.07 | ||
|
Available to order. Add to View Price |
|||
|
#2
.SEAL,STEERING LOWER (30.1X56
51644-12C00
|
$12.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING, (30X55X17)
09267-30010
|
$60.34 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01550-08407
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
56123-14F10
|
$6.83 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, FRONT FORK, UPPER
51311-14F10
|
$230.12 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (10X25)
09106-10067
|
$3.03 | ||
|
Unavailable |
|||
|
#8
CLAMP, UPPER (SILVER)
56211-42F00
Superseded by 56211-31F00-0FP
|
$44.80 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
09106-08105
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP
09250-06009
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING (25X47X17)
09267-25009
|
$56.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL,DUST
51643-40502
Superseded by 51643-40503
|
$8.16 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT,STEERING STEM (25X44X10)
51631-28000
|
$19.61 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
09166-26001
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, STEERING STEM LOCK
51632-02400
|
$19.04 | ||
|
Available to order. Add to View Price |
|||
