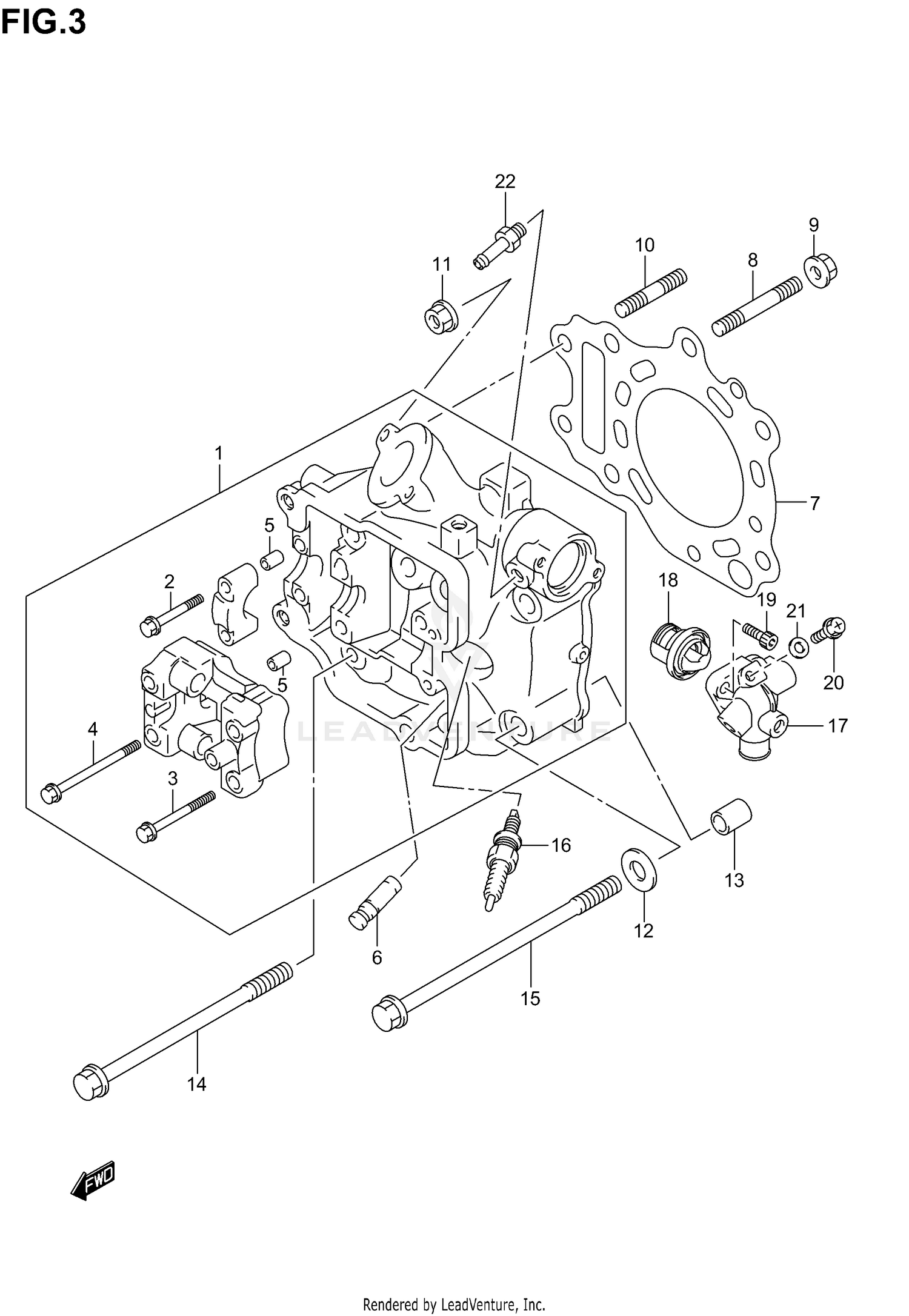

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY, CYLINDER
11100-15F50
|
$562.93 | ||
|
Unavailable |
|||
|
#2
BOLT (6X39)
09103-06026
|
$2.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
BOLT
09103-06219
|
$2.61 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6X60)
09103-06220
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN
09206-08001
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUIDE,VALVE (OS:0.3)
11115-14D71
|
$44.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, CYLINDER HEAD
11141-15F00
|
$48.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
STUD BOLT
01421-08503
Superseded by 01421-0850A
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
.NUT
08316-10083
Superseded by 08316-1008B
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, STUD
09108-06107
|
$2.53 | ||
|
Unavailable |
|||
|
#11
NUT
08316-10063
Superseded by 08316-1006B
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
GASKET, 10.5X22X2
09168-10017
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN
04211-13189
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT
09103-10355
|
$10.35 | ||
|
Unavailable |
|||
|
#15
BOLT
09103-10223
|
$21.22 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG, SPARK, CR7E
09482-00516
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG, SPARK, U22ESR-N
09482-00515
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG, SPARK, CR8E
09482-00456
|
$8.32 | ||
|
Unavailable |
|||
|
#16
PLUG, SPARK, U24ESR-N
09482-00457
|
$7.81 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPARK PLUG (CR9E)
09482-00458
|
$7.99 | ||
|
Unavailable |
|||
|
#16
PLUG, SPARK, U27ESR
09482-00459
|
$7.81 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER,THERMOSTAT
17661-14G00
|
$48.10 | ||
|
Available to order. Add to View Price |
|||
|
#18
THERMOSTAT,WATE
17670-08D20
Superseded by 17670-08D21
|
$47.21 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FRONT BRG HOUSING
07130-06203
Superseded by 07130-0620B
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#20
UNION,AIR VENT
17568-50F00
|
$6.32 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET (6.4X11.5X0.8)
09168-06026
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
UNION, WATER BYPASS HOSE
09362-09011
|
$10.58 | ||
|
Available to order. Add to View Price |
|||
