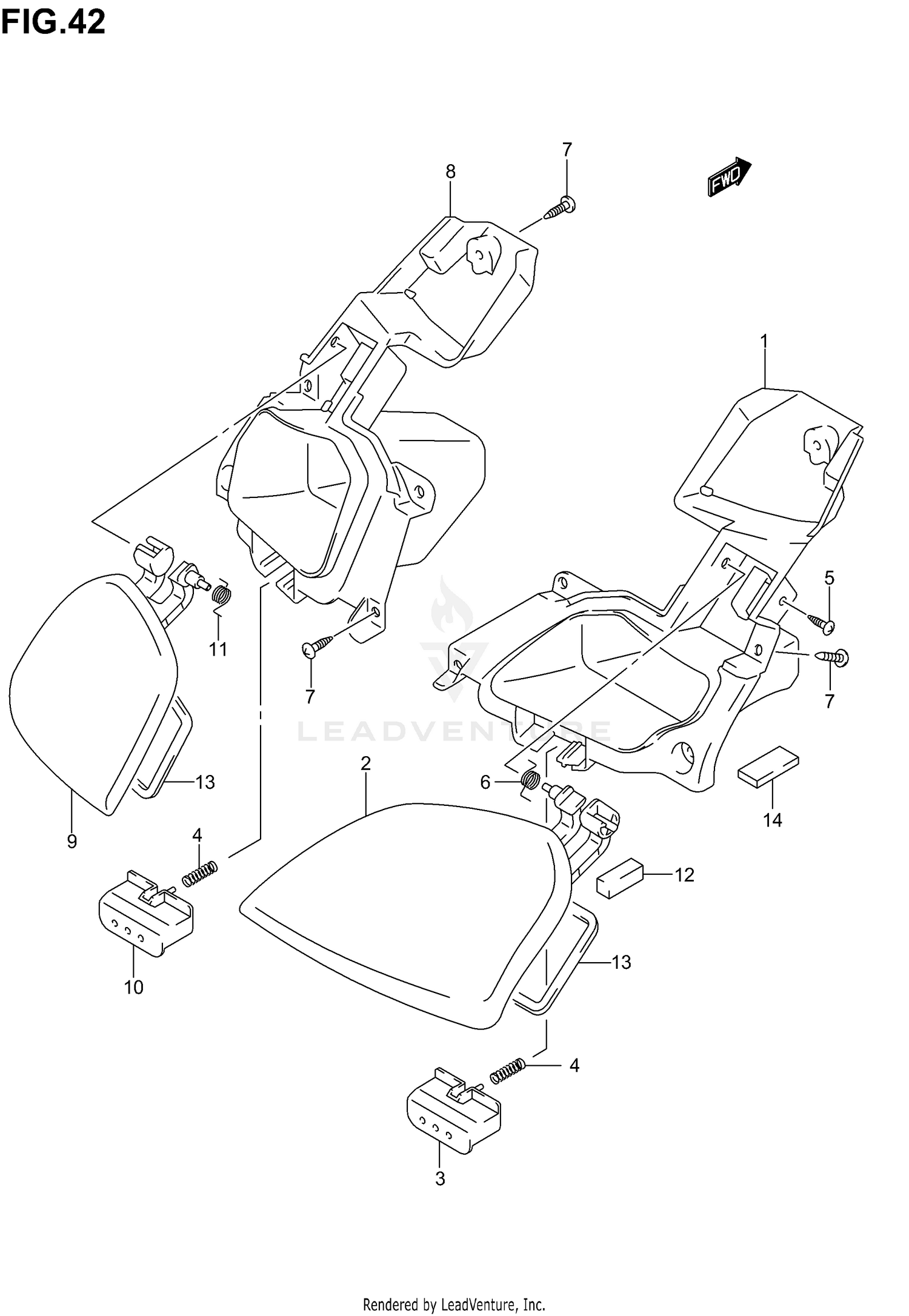

Front Panel Box (model K3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOX, PANEL RH (GRAY)
92141-14G01-Y0J
|
$50.48 | ||
|
Available to order. Add to View Price |
|||
|
#2
LID, PANEL RH (GRAY)
92142-14G01-Y0J
|
$28.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
LOCK, PANEL BOX RH (GRAY)
92143-14G00-Y0J
|
$13.94 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING
92144-14G00
Superseded by 92144-14G01
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW (4x12)
03541-04123
Superseded by 03541-0412A
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, PANEL LID RH
92145-14G00
Superseded by 92145-14G01
|
$7.83 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
03541-05163
Superseded by 03541-0516A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOX, FRONT PANEL LH (GRAY)
92151-14G01-Y0J
|
$50.48 | ||
|
Available to order. Add to View Price |
|||
|
#9
LID, PANEL LH (GRAY)
92152-14G01-Y0J
|
$28.59 | ||
|
Available to order. Add to View Price |
|||
|
#10
LOCK, PANEL BOX LH (GRAY)
92153-14G00-Y0J
|
$14.47 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, PANEL LID LH
92155-14G00
Superseded by 92155-14G01
|
$7.83 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION
92146-14G01
Superseded by 92146-14G10
|
$6.41 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION, BOX NO.2
92147-14G00
|
$6.76 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION
33652-05G10
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
