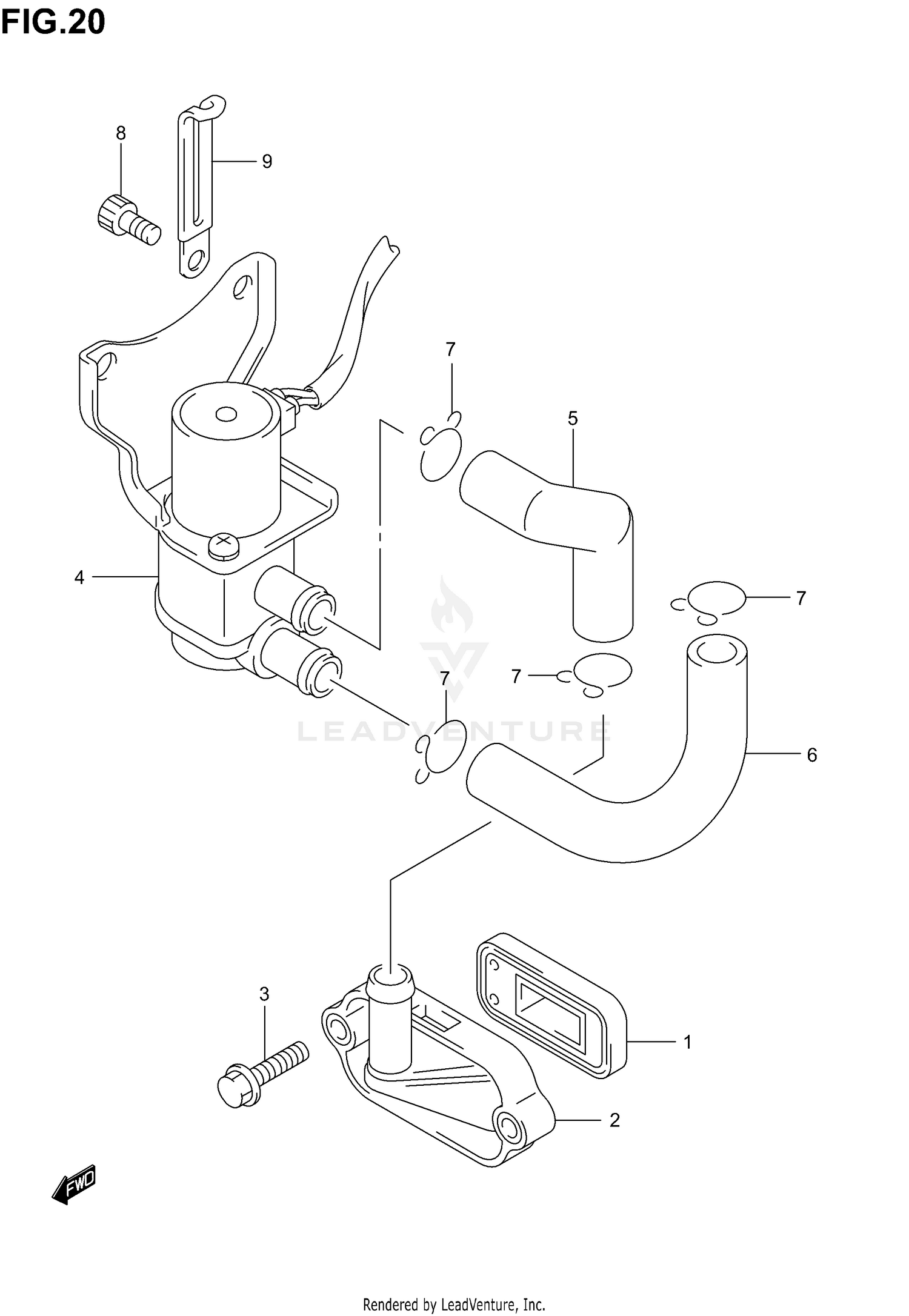

2nd Air Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
.VALVE ASSY,2ND AIR REED
18450-06G00
|
$40.40 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, 2ND AIR
18531-06G01
|
$17.81 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
09103-06201
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#4
VALVE ASSY, AIR CUT
18510-06G10
|
$104.37 | ||
|
Unavailable |
|||
|
#5
HOSE,2ND AIR VA
18461-14G00
Superseded by 18461-14G02
|
$15.92 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE,2ND AIR CL
18711-14G00
Superseded by 18711-14G02
|
$13.94 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP (ID:15.5)
09401-15101
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
09106-06075
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
