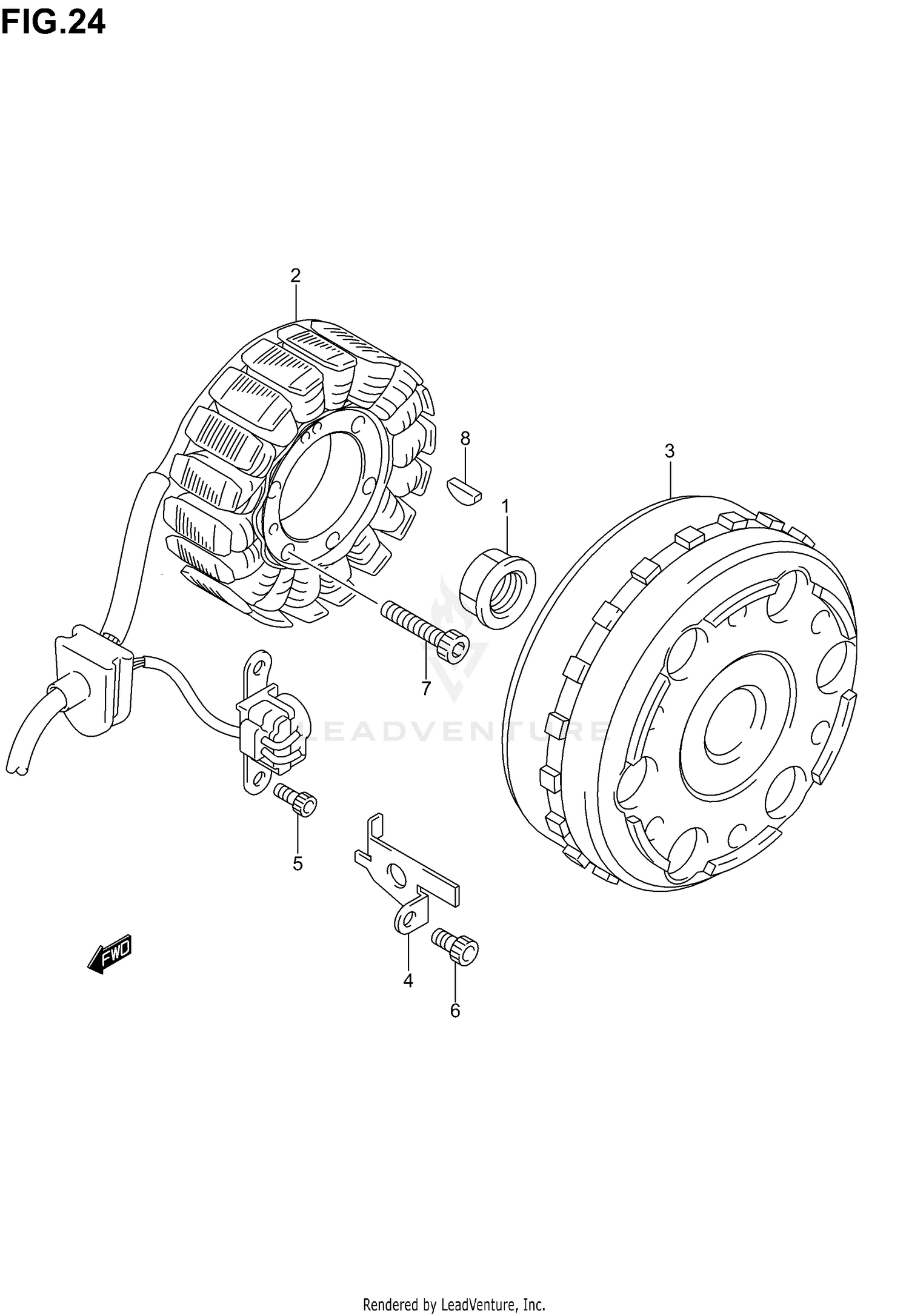

Magneto Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT, MAGNETO ROTOR
31792-18A00
|
$13.40 | ||
|
Available to order. Add to View Price |
|||
|
#2
STATOR ASSY, MAGNETO
32101-14G00
|
$739.43 | ||
|
Available to order. Add to View Price |
|||
|
#3
ROTOR ASSY, MAGNETO
32102-15G00
|
$638.92 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP,MAGNETO LEAD
32371-33E00
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
07130-05123
Superseded by 07130-0512B
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, NO.3
07130-06103
Superseded by 07130-0610B
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
07130-06303
Superseded by 07130-0630B
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#8
KEY
09420-04008
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
