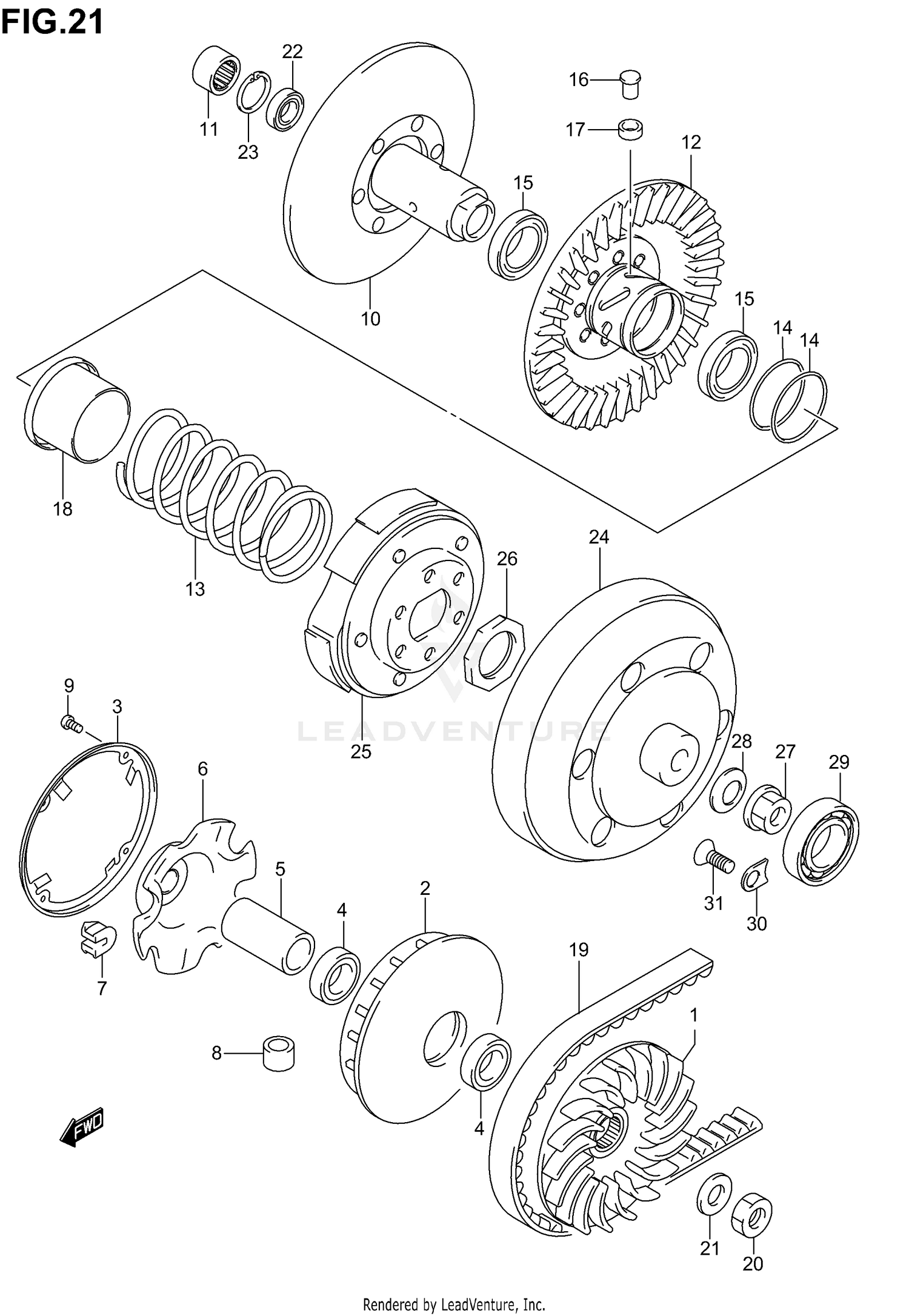

Transmission (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FACE, FIXED DRIVE
21110-15F10
|
$118.68 | ||
|
Available to order. Add to View Price |
|||
|
#2
FACE, MOVABLE DRIVE
21120-15F10
|
$140.63 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, MOVABLE
21122-15F10
|
$11.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL, MOVABLE DRIVE FACE
21124-15F00
|
$13.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER, MOVABLE DRIVE
21125-15F10
|
$50.77 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, MOVABLE DRIVE
21431-15F00
|
$35.79 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER,MOVABLE DRIVE PLATE
21481-14F00
|
$9.32 | ||
|
Available to order. Add to View Price |
|||
|
#8
ROLLER,MOVABLE DRIVEN
21650-15F40
|
$19.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
02142-04103
Superseded by 02142-0410A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
FACE, FIXED DRIVEN
21210-15F10
|
$301.04 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING,FIXED DRIVEN RH
21214-15F00
Superseded by 21214-15F01
|
$34.49 | ||
|
Unavailable |
|||
|
#12
FACE, MOVABLE DRIVEN
21240-15F10
|
$271.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, MOVABLE DRIVEN
21243-15F20
|
$46.72 | ||
|
Available to order. Add to View Price |
|||
|
#14
O RING, MOVABLE DRIVEN
21245-15F00
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL, MOVABLE DRIVEN OIL
21247-15F00
|
$15.08 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN,MOVABLE DRIVEN
21248-15F01
|
$6.32 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER,MOVABLE DRIVEN PIN
21249-15F00
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHEET, MOVABLE DRIVEN
21471-15F00
|
$20.48 | ||
|
Available to order. Add to View Price |
|||
|
#19
V BELT, DRIVE
27601-15F10
|
$178.77 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
09140-18501
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#21
LOCK WASHER (ID:18.3)
09164-18007
Superseded by 09164-18001
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING
08123-69047
Superseded by 08123-6904B
|
$25.46 | ||
|
Available to order. Add to View Price |
|||
|
#23
CIRCLIP
08331-41376
Superseded by 08331-41379
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOUSING, CLUTCH
21220-15F11
|
$364.93 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLUTCH ASSY,SHO
21501-15F01
Superseded by 21501-15F02
|
$263.05 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT,SHOE CLUTCH
21518-15F00
|
$12.36 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, CLUTCH HOUSING
09140-16002
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, CLUTCH HOUSING
09164-16002
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING, CLUTCH HOUSING
09262-35064
|
$77.42 | ||
|
Available to order. Add to View Price |
|||
|
#30
RETAINER, CLUTCH HOUSING
24742-44B00
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW
02122-06163
Superseded by 02122-0616A
|
$1.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
