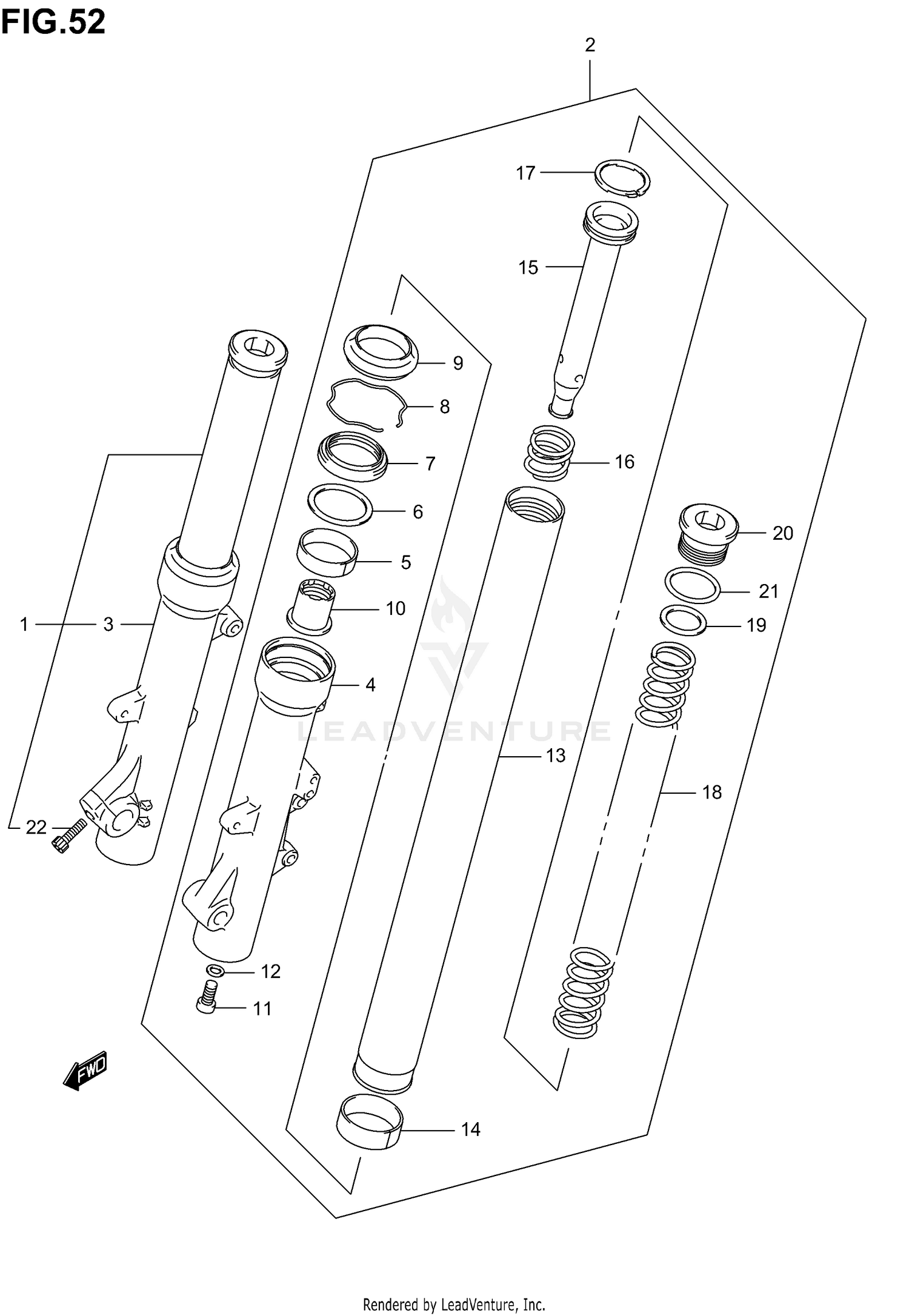

Front Fork Damper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER ASSY, FRONT FORK, R
51103-14F80
|
$565.80 | ||
|
Unavailable |
|||
|
#1
DAMPER ASSY, FRONT FORK, R
51103-14FL0
|
$860.58 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER ASSY, FRONT FORK, L
51104-14F80
|
$525.39 | ||
|
Unavailable |
|||
|
#2
DAMPER ASSY, FRONT FORK, L
51104-14FL0
|
$614.46 | ||
|
Unavailable |
|||
|
#3
TUBE, OUTER, R
51130-14F00
|
$289.69 | ||
|
Unavailable |
|||
|
#3
TUBE, OUTER, R
51130-14FK0
|
$289.69 | ||
|
Unavailable |
|||
|
#4
TUBE, OUTER, L
51140-14F00
|
$321.01 | ||
|
Unavailable |
|||
|
#4
TUBE, OUTER, L
51140-14FK0
|
$289.69 | ||
|
Unavailable |
|||
|
#5
METAL, SLIDE
51167-26E10
|
$32.56 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
51158-05A00
|
$7.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL, OIL
51153-14F00
|
$27.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
.RING,OIL SEAL STOPPER
51156-49440
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
.SEAL,DUST
51173-14F00
|
$29.78 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIECE, OIL LOCK
51195-33D10
|
$29.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, CYLINDER
51147-16510
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
51148-41310
|
$2.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
TUBE, INNER
51110-14F51
|
$235.48 | ||
|
Unavailable |
|||
|
#14
PISTON
51121-33D10
|
$25.08 | ||
|
Available to order. Add to View Price |
|||
|
#15
CYLINDER
51146-14F80
|
$59.67 | ||
|
Unavailable |
|||
|
#16
SPRING, REBOUND
51177-14F70
|
$8.78 | ||
|
Unavailable |
|||
|
#17
RING, PISTON
51196-14F51
|
$5.76 | ||
|
Unavailable |
|||
|
#18
SPRING, FRONT
51171-14F50
|
$63.48 | ||
|
Available to order. Add to View Price |
|||
|
#19
.WASHER,STEM HEAD (24.5X34X1.
51356-27C00
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAP, FORK
51351-14F20
|
$34.96 | ||
|
Unavailable |
|||
|
#21
.O RING (D:3.5,ID:31.7)
09280-32001
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
07130-08257
|
$4.38 | ||
|
Available to order. Add to View Price |
|||
