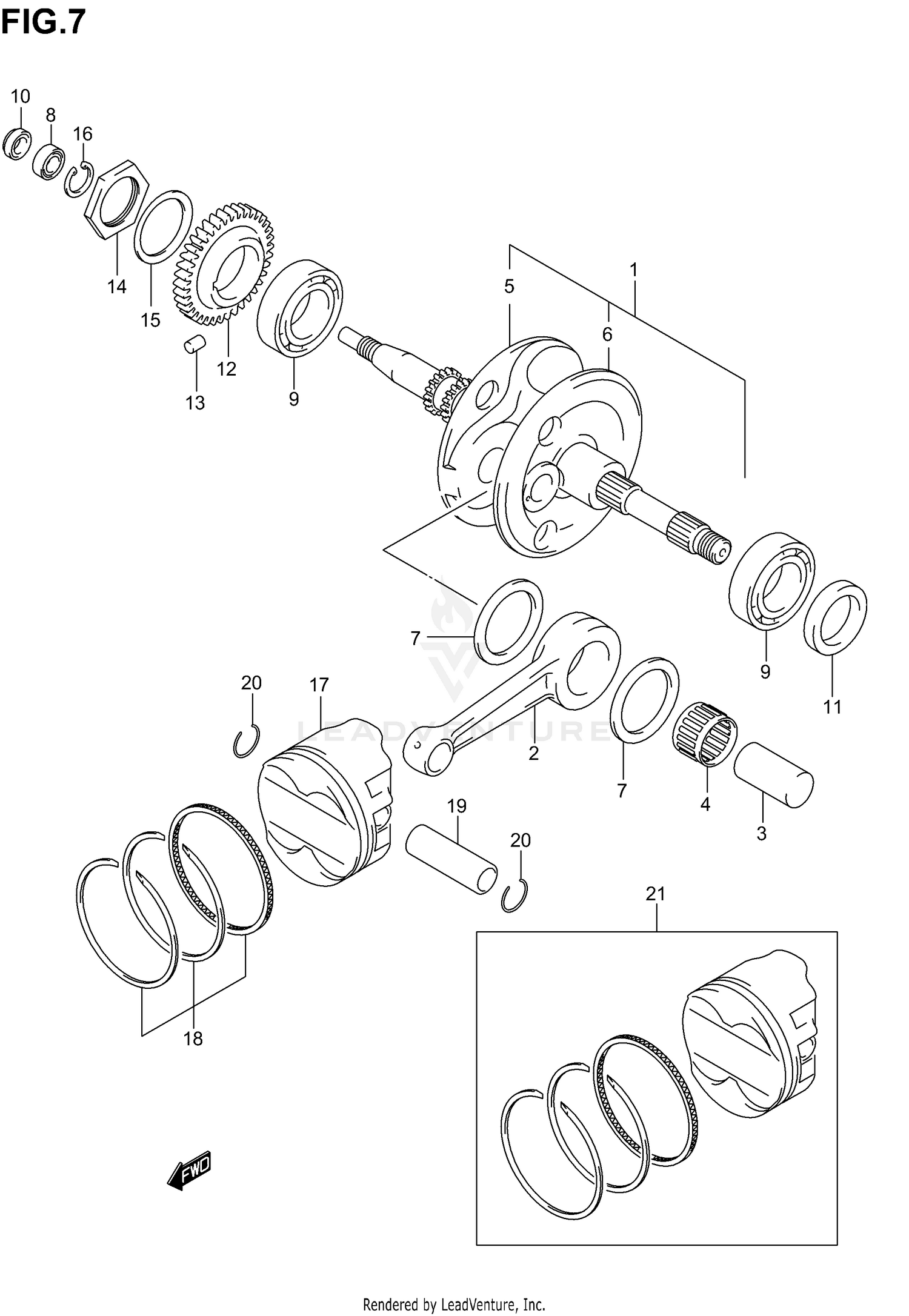

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
12200-15F00
|
$527.25 | ||
|
Unavailable |
|||
|
#2
CONNROD
12161-15F00
|
$158.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, CRANK
12210-15F00
|
$87.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING, 35X45X22
09263-35034
|
$89.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
CRANKSHAFT, R
12221-15F00
|
$262.57 | ||
|
Available to order. Add to View Price |
|||
|
#6
CRANKSHAFT, L
12260-15F01
|
$190.01 | ||
|
Unavailable |
|||
|
#7
WASHER, 35X55X1.0
09160-35005
|
$11.91 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, 12X32X10
09262-12016
|
$17.46 | ||
|
Unavailable |
|||
|
#9
BEARING, 35X72X17
09262-35038
|
$58.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL, 12X29X6
09282-12011
|
$20.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL, 34X52X6
09283-34011
|
$32.71 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, CRANK BALANCER DRIVE
12661-14F00
|
$130.89 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, 5X8
09261-05005
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, FLYWHEEL
12664-24B01
|
$17.41 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
09164-35002
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP
08331-41326
Superseded by 08331-41329
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
PISTON
12111-15F00-0F0
|
$132.31 | ||
|
Available to order. Add to View Price |
|||
|
#18
RING SET, PISTON
12140-15F00
|
$78.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN,PISTON
12151-05A00
|
$20.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP
09381-20004
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
PISTON SET, OS:0.5
12100-15F00-050
|
$222.29 | ||
|
Available to order. Add to View Price |
|||
