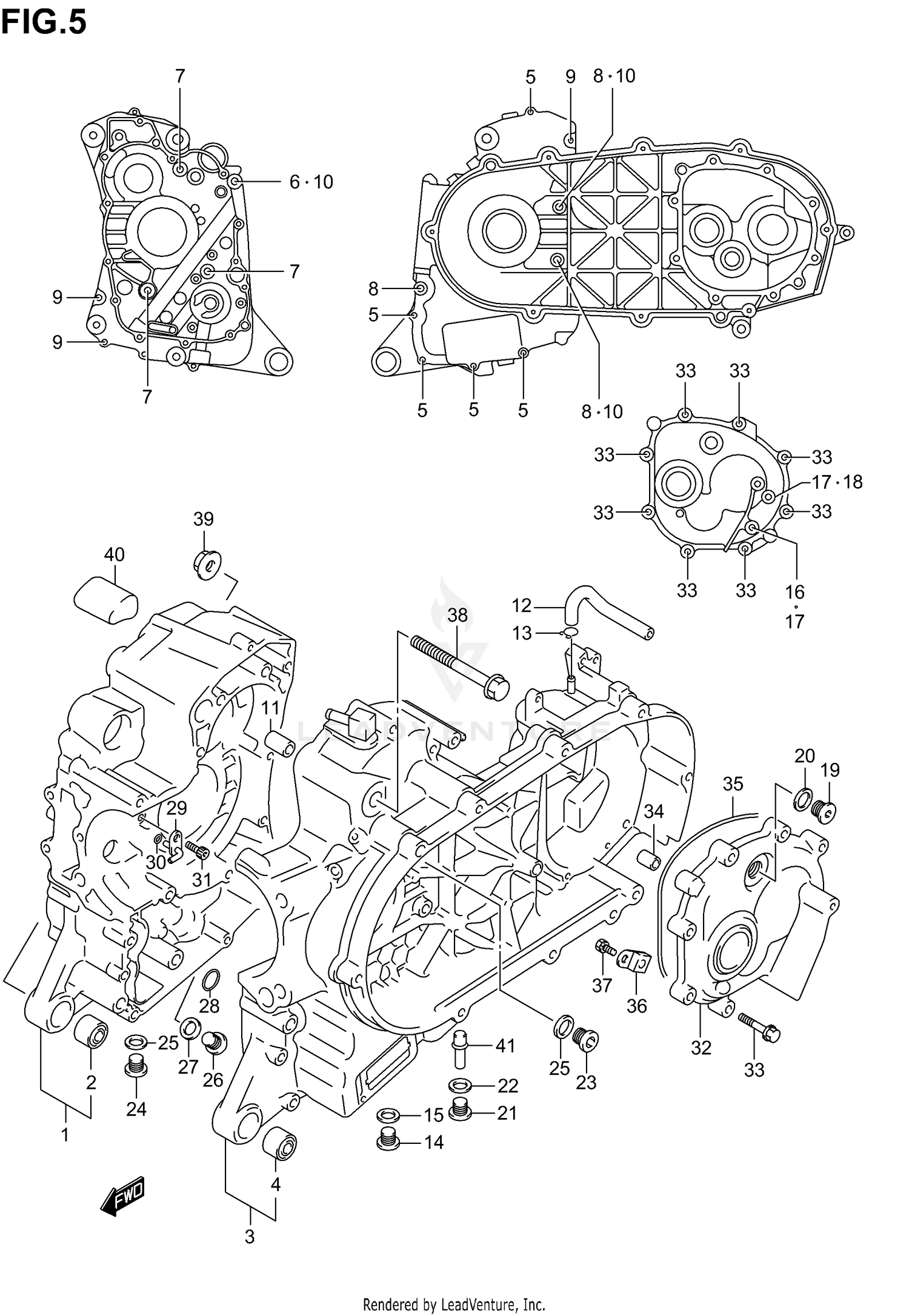

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET, RH
11310-15850
|
$214.78 | ||
|
Unavailable |
|||
|
#1
CRANKCASE SET, RH
11310-15860
|
$277.25 | ||
|
Unavailable |
|||
|
#2
.BUSHING (10X23X30)
09319-10043
|
$18.86 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANKCASE SET, LH
11320-15832
|
$450.07 | ||
|
Unavailable |
|||
|
#3
CRANKCASE SET, LH
11320-15860
|
$465.42 | ||
|
Unavailable |
|||
|
#4
.BUSHING (10X23X30)
09319-10043
|
$18.86 | ||
|
Unavailable |
|||
|
#5
BOLT
01547-06603
Superseded by 01547-0660B
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
07120-08903
Superseded by 07120-0890B
|
$4.59 | ||
|
Unavailable |
|||
|
#7
BOLT
07120-08603
Superseded by 07120-0860B
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
07120-08703
|
$2.36 | ||
|
Unavailable |
|||
|
#9
BOLT
07130-08653
Superseded by 07130-0865B
|
$5.74 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET (8.2X14X1)
09168-08016
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN,CRANKCASE
11319-33E50
|
$7.07 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE, T/M BREATHER
11329-14F00
|
$7.39 | ||
|
Unavailable |
|||
|
#13
CLIP (ID:11)
09401-11403
|
$3.31 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
.PLUG (14X12)
09247-14026
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#15
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.83 | ||
|
Unavailable |
|||
|
#16
BOLT (8X12)
01550-08123
Superseded by 01550-0812A
|
$2.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
GASKET (8.2X14X1)
09168-08016
|
$2.05 | ||
|
Unavailable |
|||
|
#18
BOLT (8X12)
01550-08123
Superseded by 01550-0812A
|
$2.88 | ||
|
Unavailable |
|||
|
#19
PLUG, 16X8
09248-16012
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET, 16X22X2.0
09168-16002
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
PLUG, SHAFT
09248-14005
Superseded by 09248-14011
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#21
.PLUG (14X12)
09247-14026
|
$4.71 | ||
|
Unavailable |
|||
|
#22
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.83 | ||
|
Unavailable |
|||
|
#23
PLUG (L:12)
09248-12004
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLUG
09247-12006
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLUG
09247-12006
|
$3.38 | ||
|
Unavailable |
|||
|
#25
GASKET, 12.1X16.2X3.7
09168-12002
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLUG, 16X8
09248-16012
|
$5.83 | ||
|
Unavailable |
|||
|
#27
GASKET, 16X22X2.0
09168-16002
|
$2.37 | ||
|
Unavailable |
|||
|
#28
O RING, D:1.9,ID:12.6
09280-12009
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
JET,PISTON COOLING
11390-14F00
|
$20.60 | ||
|
Available to order. Add to View Price |
|||
|
#30
O RING (D:1.2,ID:4)
09280-04004
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT
07130-06123
Superseded by 07130-0612A
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#32
COVER, GEAR BOX
11431-15F10
|
$121.66 | ||
|
Unavailable |
|||
|
#33
BOLT
01550-08353
Superseded by 01550-0835A
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#34
.PIN
04211-11169
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#35
.O RING (D:2.4,ID:172)
09280-00035
|
$21.42 | ||
|
Available to order. Add to View Price |
|||
|
#36
MAGNET, GEAR BOX
11393-20E00
|
$8.25 | ||
|
Unavailable |
|||
|
#37
BOLT
01570-06123
Superseded by 01570-0612A
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, 12X295
09103-12053
|
$15.26 | ||
|
Unavailable |
|||
|
#39
NUT
08319-31123
Superseded by 08319-3112B
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#40
SEPARATOR, OIL NO.2
11186-14F01
|
$10.21 | ||
|
Unavailable |
|||
|
#41
JET, BREATHER
11323-15F00
|
$4.37 | ||
|
Unavailable |
|||
