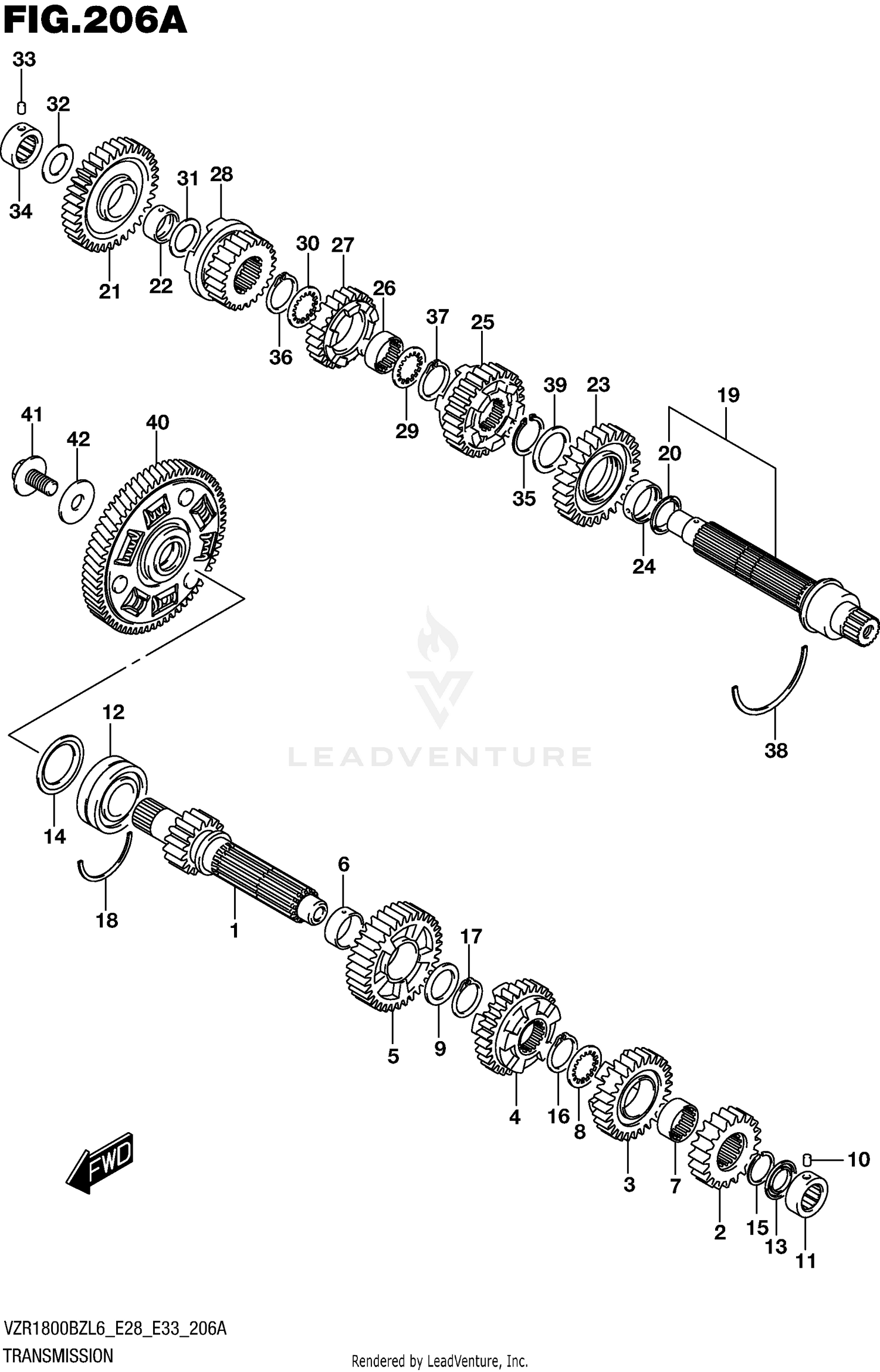

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, COUNTER (NT:16)
24121-48G10
|
$347.88 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, 2ND DRIVE (NT:20)
24221-48G00
|
$165.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 3RD DRIVE (NT:28)
24231-48G10
|
$199.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, 4TH DRIVE (NT:29)
24241-48G10
|
$238.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 5TH DRIVE (NT:35)
24251-48G00
|
$227.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH, 5TH DRIVE GEAR
24252-24F10
|
$38.31 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH, 6TH DRIVE GEAR
24262-24F10
|
$38.31 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER,LOCK (27X36X2.5)
09167-27003
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIM (27X36X2.5)
09181-27014
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN (6X10)
09261-06003
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING (20X34X13.5)
09263-20087
|
$52.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING (25X62X25.4)
09267-25012
|
$163.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL (20X31.2X2.7)
09285-20006
|
$7.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
OIL SEAL (34X55.5X4)
09285-34011
|
$25.76 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
09380-27004
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP
09380-27006
|
$3.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CIRCLIP
09380-27006
|
$3.28 | ||
|
Unavailable |
|||
|
#18
C RING
09390-62012
|
$9.03 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHAFT, DRIVE (NT:18)
24130-48G01
|
$319.54 | ||
|
Available to order. Add to View Price |
|||
|
#20
.RING, FRICTION
24136-48G01
|
$42.88 | ||
|
Available to order. Add to View Price |
|||
|
#21
GEAR, 1ST DRIVEN (NT:35)
24311-48G00
|
$223.36 | ||
|
Available to order. Add to View Price |
|||
|
#22
BUSH, 1ST DRIVEN GEAR
24312-24F10
|
$38.31 | ||
|
Available to order. Add to View Price |
|||
|
#23
GEAR, 2ND DRIVEN (NT:28)
24321-48G10
|
$223.36 | ||
|
Available to order. Add to View Price |
|||
|
#24
BUSH, 2ND DRIVEN GEAR
24322-48G00
|
$34.69 | ||
|
Available to order. Add to View Price |
|||
|
#25
GEAR, 3RD DRIVEN (NT:27)
24331-48G10
|
$239.56 | ||
|
Available to order. Add to View Price |
|||
|
#26
BUSH, 4TH DRIVEN GEAR
24332-24F10
|
$36.88 | ||
|
Available to order. Add to View Price |
|||
|
#27
GEAR, 4TH DRIVEN (NT:24)
24341-48G00
|
$201.12 | ||
|
Available to order. Add to View Price |
|||
|
#28
GEAR, 5TH DRIVEN (NT:24)
24351-48G00
|
$219.70 | ||
|
Available to order. Add to View Price |
|||
|
#29
LOCK WASHER
09167-30008
|
$6.43 | ||
|
Available to order. Add to View Price |
|||
|
#30
LOCK WASHER
09167-30008
|
$6.43 | ||
|
Unavailable |
|||
|
#31
SHIM (20X34X1)
09181-20251
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#32
SHIM (24X34X1)
09181-24005
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN (6X10)
09261-06003
|
$1.81 | ||
|
Unavailable |
|||
|
#34
BEARING (20X34X13.5)
09263-20087
|
$52.69 | ||
|
Unavailable |
|||
|
#35
CIRCLIP
09380-30009
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#36
CIRCLIP
09380-30009
|
$4.25 | ||
|
Unavailable |
|||
|
#37
CIRCLIP
09380-30009
|
$4.25 | ||
|
Unavailable |
|||
|
#38
C RING
09390-80004
|
$12.11 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER
08211-30403
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#40
GEAR ASSY, PRIMARY DRIVEN
21200-22830
|
$665.51 | ||
|
Available to order. Add to View Price |
|||
|
#40
(NT:58)
21200-22830
|
$665.51 | ||
|
Unavailable |
|||
|
#41
BOLT (12X24)
09103-12084
|
$8.91 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER (12X35X2)
09160-12045
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
