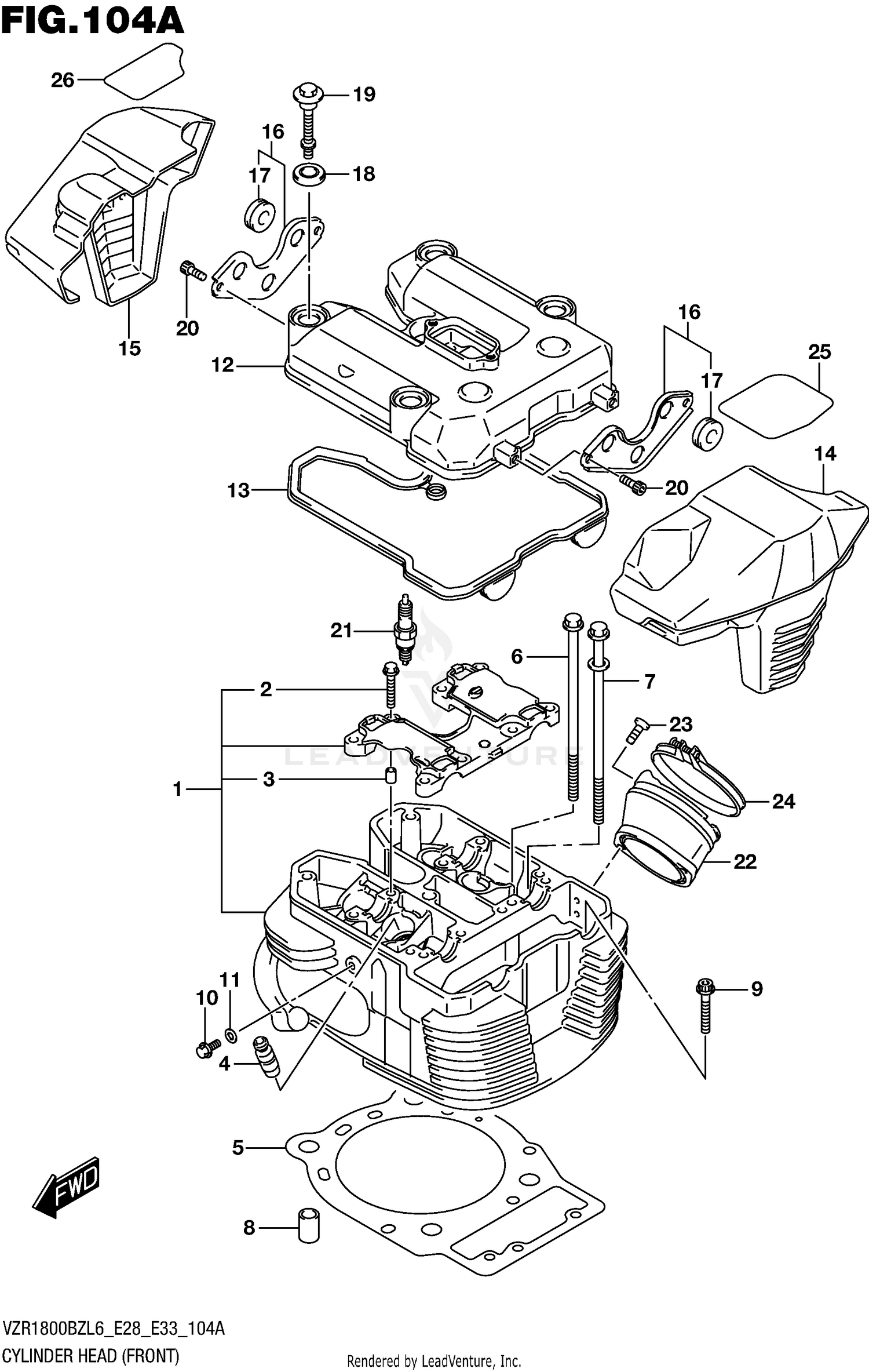

Cylinder Head (front) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY, CYLINDER FRONT
11101-48G10
|
$1,863.34 | ||
|
Unavailable |
|||
|
#2
BOLT (6X39)
09103-06026
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#3
.PIN (8X11)
09206-08001
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE, VALVE (OS 0.3)
11115-65J00-001
|
$34.52 | ||
|
Unavailable |
|||
|
#5
GASKET, CYLINDER HEAD FRONT
11141-48G00
|
$58.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT (8X180)
09103-08415
|
$12.19 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (10X19)
09103-10396
|
$27.61 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN
04211-13189
|
$2.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT
07120-0670A
|
$2.61 | ||
|
Unavailable |
|||
|
#10
BOLT
01550-0612A
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
GASKET (5.8X13X1.2)
09168-06023
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
COVER, CYLINDER HEAD
11170-48G00
|
$213.03 | ||
|
Unavailable |
|||
|
#13
GASKET
11173-48G00
|
$33.41 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP, CYL HEAD COVER NO.1
11174-48G20
|
$118.28 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, CYL HEAD COVER NO.2
11175-48G20
|
$118.28 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET,HEAD COVER CAP
11180-48G00
Superseded by 11180-48G01
|
$10.50 | ||
|
Unavailable |
|||
|
#17
CUSHION,FUEL TANK COVER BRKT
09320-08013
Superseded by 09320-08509
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#18
CUSHION,HEAD COVER BOLT
11192-13E00
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT (6X52)
09111-06091
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
07130-0612A
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#21-1
PLUG,SPARK (CR8EK)
09482-00412
|
$13.12 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21-2
PLUG,SPARK (U24ETR)
09482-00413
|
$13.84 | ||
|
Available to order. Add to View Price |
|||
|
#21-3
PLUG,SPARK (CR9EK)
09482-00410
|
$14.31 | ||
|
Unavailable |
|||
|
#21-4
SPARK PLUG (DENSO,U27ESR-N)
09482-00411
Superseded by 09482-00459
|
$7.52 | ||
|
Available to order. Add to View Price |
|||
|
#21-5
PLUG,SPARK (CR7EK)
09482-00414
|
$13.13 | ||
|
Available to order. Add to View Price |
|||
|
#21-6
PLUG,SPARK (U22ETR)
09482-00415
|
$9.33 | ||
|
Unavailable |
|||
|
#22
PIPE ASSY,INTAKE
13101-48G00
Superseded by 13101-48G01
|
$105.74 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT (6X20.5)
09120-06008
|
$3.88 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP, INTAKE PIPE
13170-22H00
|
$8.12 | ||
|
Available to order. Add to View Price |
|||
|
#25
PROTECTOR, HEAD COVER CAP NO.
11178-48G00
|
$11.26 | ||
|
Available to order. Add to View Price |
|||
|
#26
PROTECTOR, HEAD COVER CAP NO.
11178-48G10
|
$10.29 | ||
|
Available to order. Add to View Price |
|||
