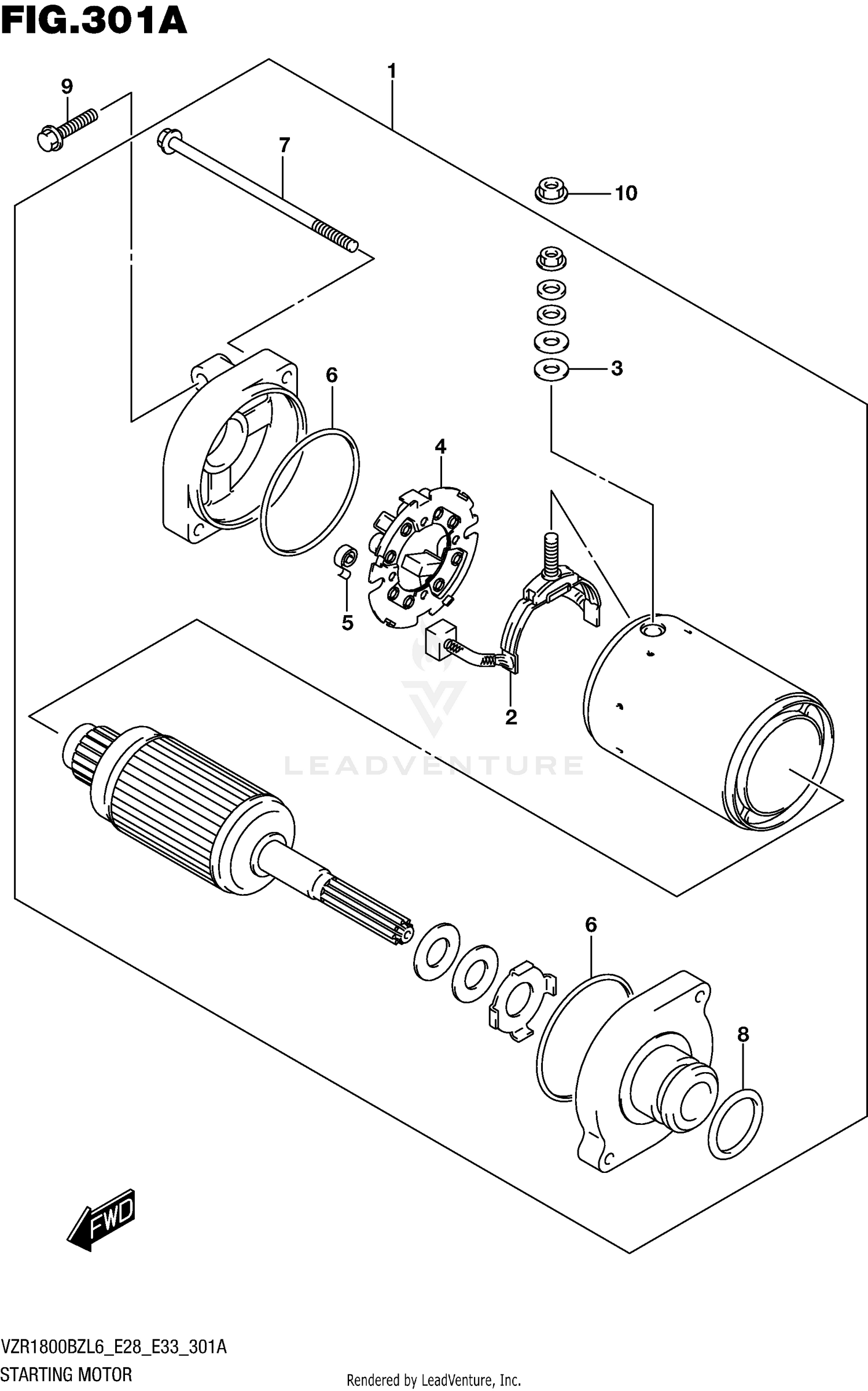

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MOTOR ASSY, STARTING
31100-48G00
|
$923.00 | ||
|
Available to order. Add to View Price |
|||
|
#2
.TERMINAL SET, BRUSH
31130-38B00
|
$74.91 | ||
|
Available to order. Add to View Price |
|||
|
#3
.O RING
31143-49040
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#4
.HOLDER SET, BRUSH
31132-38B00
|
$74.91 | ||
|
Available to order. Add to View Price |
|||
|
#5
.SPRING, BRUSH
31135-38B00
|
$5.84 | ||
|
Available to order. Add to View Price |
|||
|
#6
O RING
31264-31300
Superseded by 31264-32E00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
31281-24B10
Superseded by 31281-31D00
|
$9.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
.O RING (D:3,ID:24.5)
09280-24003
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
01547-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
08361-3506A
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
