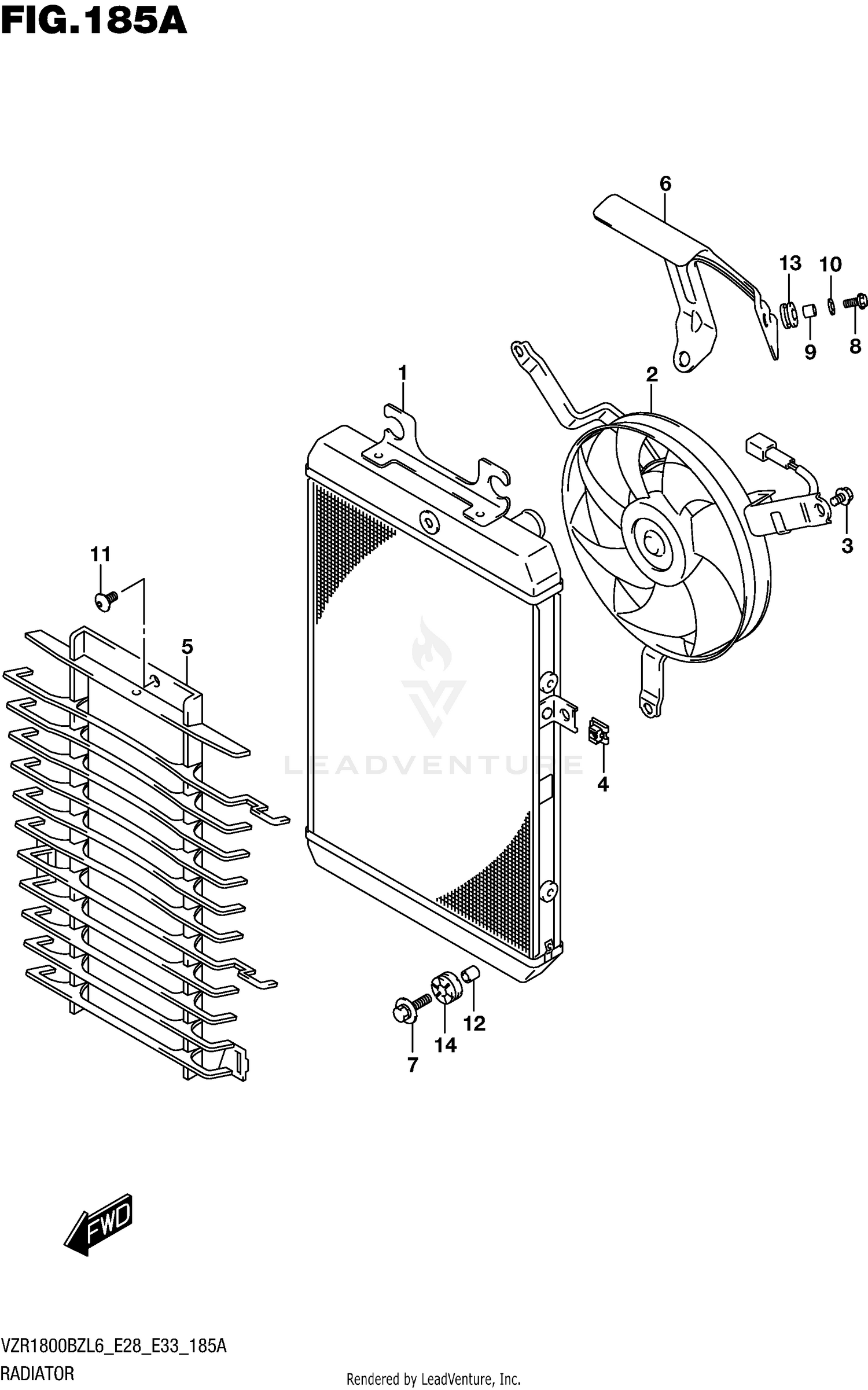

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR ASSY, WATER
17710-48G00
|
$1,230.66 | ||
|
Available to order. Add to View Price |
|||
|
#2
FAN ASSY, RADIATOR
17800-48G00
|
$655.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
17711-40F00
|
$6.03 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT,FAN ASSY
17712-40F00
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUARD, RADIATOR
17761-48G00
|
$66.52 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIELD, HEAT
17771-48G10
|
$82.57 | ||
|
Unavailable |
|||
|
#7
BOLT (6X25)
09118-06097
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
01547-0616B
|
$2.94 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER (6.2X8.3X5.7)
09180-06001
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER (6.5X20X1.2)
09160-06152
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW (6X12)
09139-06144
|
$3.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SPACER (6.5X10X12)
09180-06290
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
.CUSHION (8.4X18X6)
09320-08066
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION
09320-10051
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
