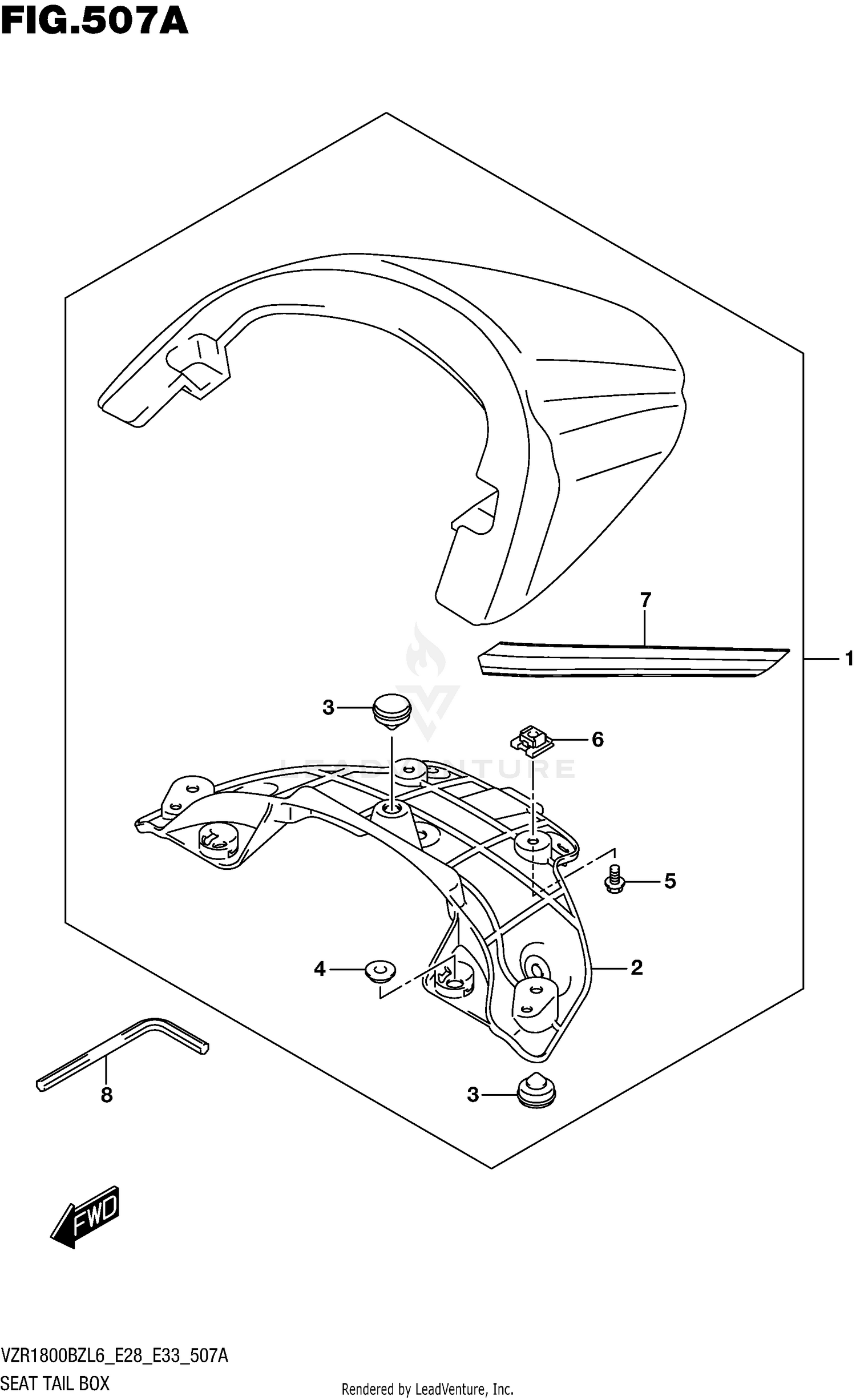

Seat Tail Box (for Bbd) (vzr1800bzl6 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOX ASSY,SEAT T
45500-48G60-BBD
Superseded by 45500-48G61-BBD
|
$487.38 | ||
|
Unavailable |
|||
|
#2
.BOTTOM, SEAT TAIL BOX
45552-48G00
|
$28.52 | ||
|
Available to order. Add to View Price |
|||
|
#3
.CUSHION (11.5X22X20)
45148-16700
Superseded by 09321-10002
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
.COLLAR
45553-48G00
|
$10.71 | ||
|
Available to order. Add to View Price |
|||
|
#5
.BOLT
01550-0612B
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
09148-06018
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#7
.TAPE SET, BOX SEAT TAIL
68160-48GB0-BBP
|
$46.98 | ||
|
Available to order. Add to View Price |
|||
|
#8
HEXAGON SPANNER, 5
09816-00059
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
