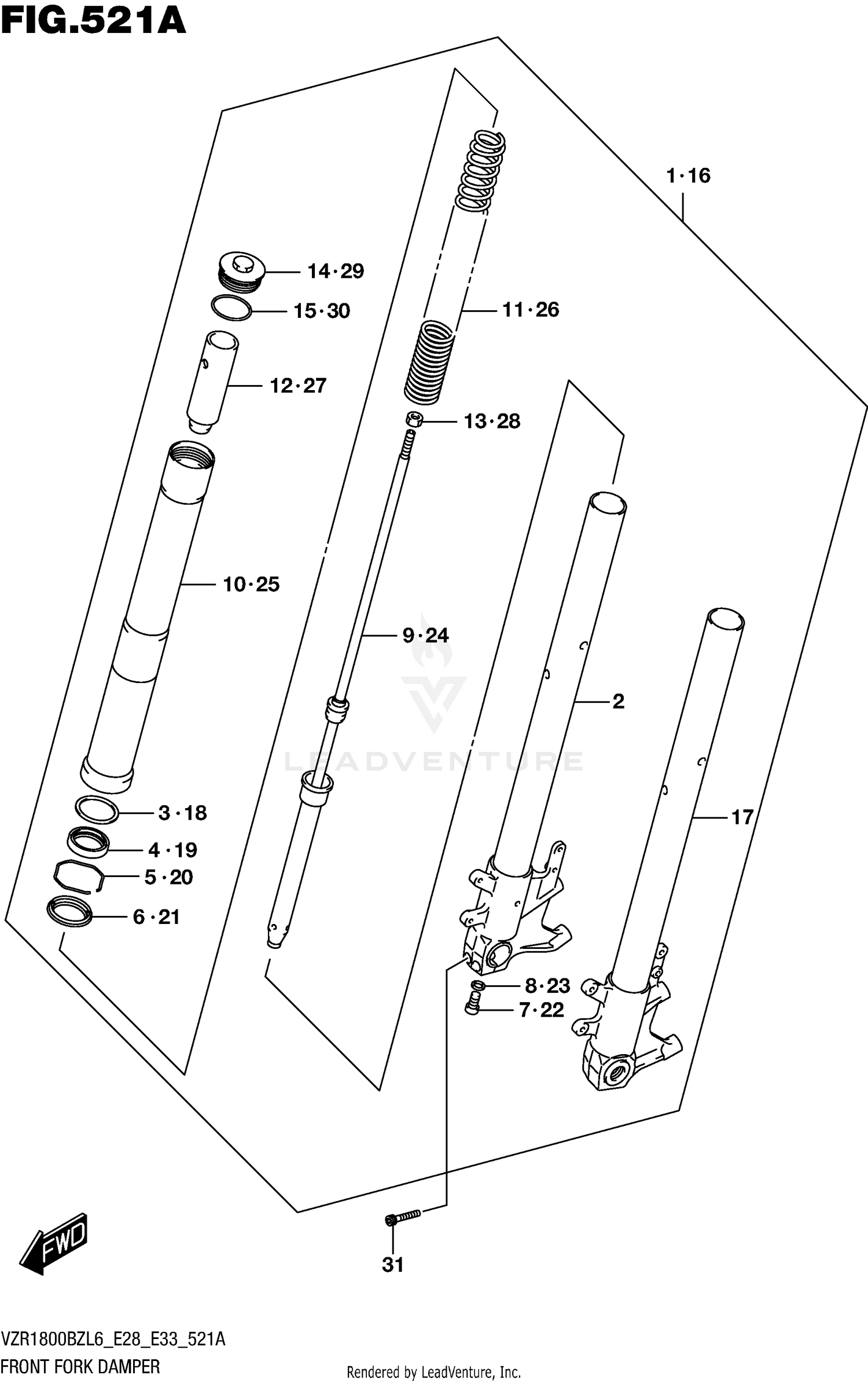

Front Fork Damper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER ASSY,FR FORK,RH
51103-48G30
Superseded by 51103-48G31
|
$1,567.12 | ||
|
Available to order. Add to View Price |
|||
|
#2
.TUBE, INNER RH
51110-48G30
|
$948.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
.WASHER
51158-27C00
|
$8.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
.OIL SEAL
51153-48G00
|
$32.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
.RING, STOPPER
51156-27C00
|
$7.71 | ||
|
Available to order. Add to View Price |
|||
|
#6
.SEAL, DUST
51173-42F00
|
$34.32 | ||
|
Available to order. Add to View Price |
|||
|
#7
.BOLT
51147-05H00
|
$6.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
.GASKET
51148-41310
|
$2.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
.CYLINDER
51146-48G20
|
|||
|
Unavailable |
|||
|
#10
.TUBE, OUTER
51130-48G30
|
$623.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
.SPRING, FRONT
51171-48G20
|
$122.46 | ||
|
Available to order. Add to View Price |
|||
|
#12
.SPACER, SPRING
51176-21H00
|
$30.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
.NUT,ROD
51352-13A60
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#14
.CAP
51351-48G30
|
$97.13 | ||
|
Available to order. Add to View Price |
|||
|
#15
..O RING
51117-48G00
Superseded by 51117-48G01
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER ASSY,FR FORK,L
51104-48G30
Superseded by 51104-48G31
|
$1,692.47 | ||
|
Available to order. Add to View Price |
|||
|
#17
.TUBE, INNER LH
51120-48G30
|
$948.59 | ||
|
Available to order. Add to View Price |
|||
|
#18
.WASHER
51158-27C00
|
$8.00 | ||
|
Unavailable |
|||
|
#19
.OIL SEAL
51153-48G00
|
$32.49 | ||
|
Unavailable |
|||
|
#20
.RING, STOPPER
51156-27C00
|
$7.71 | ||
|
Unavailable |
|||
|
#21
.SEAL, DUST
51173-42F00
|
$34.32 | ||
|
Unavailable |
|||
|
#22
.BOLT
51147-05H00
|
$6.10 | ||
|
Unavailable |
|||
|
#23
.GASKET
51148-41310
|
$2.50 | ||
|
Unavailable |
|||
|
#24
.CYLINDER
51146-48G20
|
|||
|
Unavailable |
|||
|
#25
.TUBE, OUTER
51130-48G30
|
$623.95 | ||
|
Unavailable |
|||
|
#26
.SPRING, FRONT
51171-48G20
|
$122.46 | ||
|
Unavailable |
|||
|
#27
.SPACER, SPRING
51176-21H00
|
$30.93 | ||
|
Unavailable |
|||
|
#28
.NUT,ROD
51352-13A60
|
$3.43 | ||
|
Unavailable |
|||
|
#29
.CAP
51351-48G30
|
$97.13 | ||
|
Unavailable |
|||
|
#30
..O RING
51117-48G00
Superseded by 51117-48G01
|
$4.05 | ||
|
Unavailable |
|||
|
#31
BOLT
51328-39G20
|
$13.28 | ||
|
Available to order. Add to View Price |
|||
