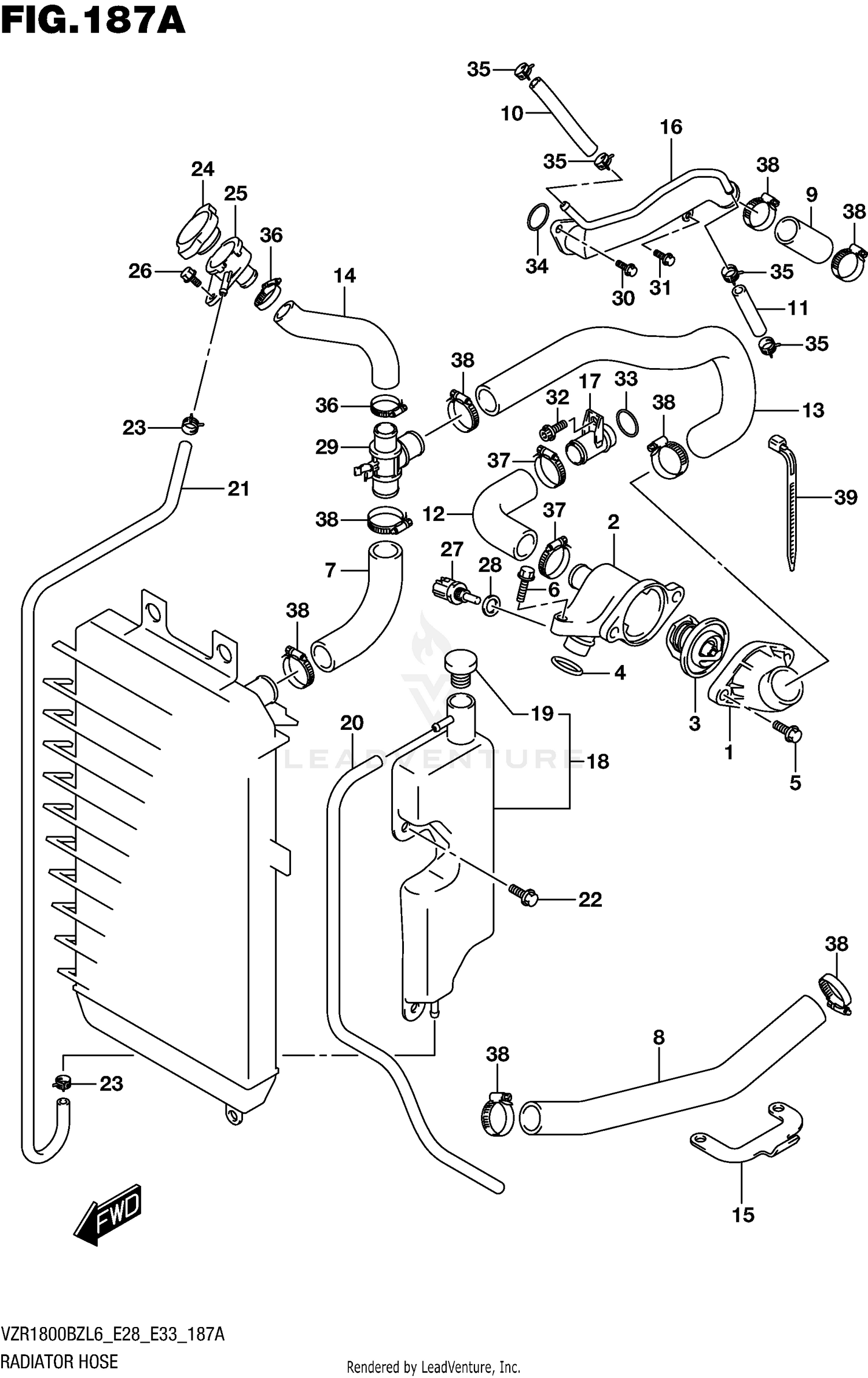

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, THERMOSTAT
17661-48G10
|
$32.23 | ||
|
Available to order. Add to View Price |
|||
|
#2
CONNECTOR, HERMOSTAT INLET
17662-48G00
|
$105.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
THERMOSTAT,WATER
17670-06G50
Superseded by 17670-06G51
|
$31.83 | ||
|
Available to order. Add to View Price |
|||
|
#4
O RING (D:3.2,ID:17.8)
09280-18008
Superseded by 09280-18009
|
$7.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01547-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
01547-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE, RADIATOR INLET
17851-48G00
|
$24.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE, RADIATOR OUTLET
17852-48G00
|
$47.19 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE, CYLINDER INLET
17853-48G00
|
$12.27 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE, WATER BYPASS UPPER
17854-48G00
|
$15.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE, WATER BYPASS LOWER
17855-48G00
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE, REAR CYL HEAD OUTLET
17856-48G00
|
$17.46 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE, THERMOSTAT OUTLET
17857-48G10
|
$55.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE, CONDUCTION
17858-48G00
|
$19.54 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, HOSE GUIDE
17859-48G00
|
$7.53 | ||
|
Unavailable |
|||
|
#16
PIPE, CYL WATER INLET
17860-48G00
|
$189.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
UNION, CONNECTOR HOSE
17890-06G20
|
$18.34 | ||
|
Available to order. Add to View Price |
|||
|
#18
TANK ASSY, RESERVOIR
17910-48G00
|
$81.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
.CAP
17931-02FA0
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE (5X9X2000)
09352-50901-00B
|
$33.28 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE, TANK INLET
17981-48G00
|
$26.01 | ||
|
Unavailable |
|||
|
#22
BOLT (6X12)
09111-06085
|
$5.61 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP
09401-08411
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
CAP,RADIATOR (1.1)
17730-08J00
|
$52.50 | ||
|
Available to order. Add to View Price |
|||
|
#25
CONDUCTION
17791-24D00
|
$66.06 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT
01550-0612A
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
SENSOR, WATER TEMP
13650-10G00
|
$107.76 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET (12X17X1)
09168-12017
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#29
JOINT, 3 WAY
17891-48G00
|
$12.29 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT (6X16)
09103-06274
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT (6X12)
09103-06280
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
07130-0612A
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#33
O RING (D:3.2,ID:17.8)
09280-18008
Superseded by 09280-18009
|
$7.10 | ||
|
Unavailable |
|||
|
#34
O RING (D:2.4,ID:26.2)
09280-26005
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLIP
09401-12414
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLAMP
09402-28513
|
$8.51 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLAMP
09402-32512
|
$13.50 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLAMP
09402-38512
|
$14.48 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLAMP (L:235)
09407-25401
|
$5.68 | ||
|
Available to order. Add to View Price |
|||
