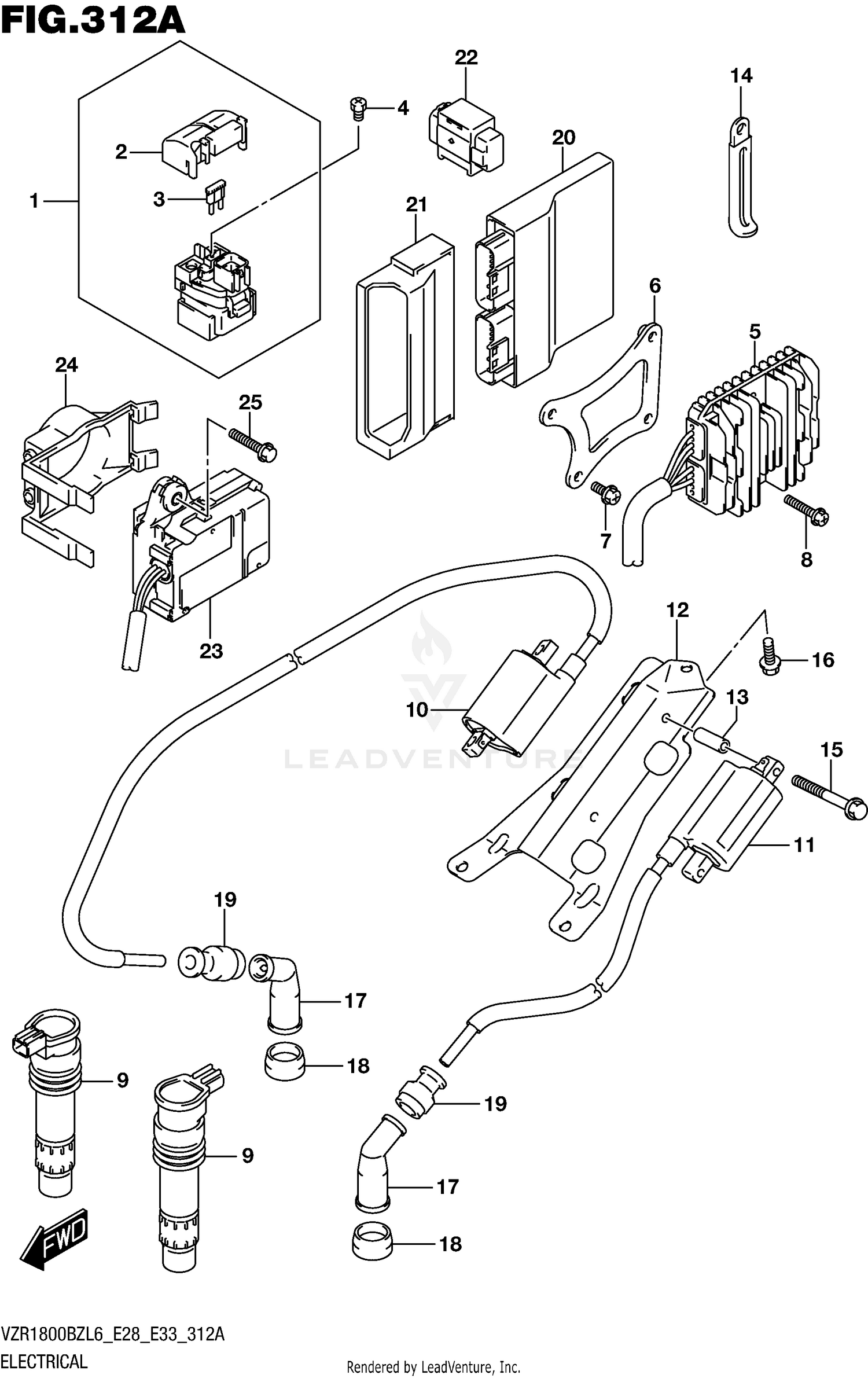

Electrical Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY,STARTING MOTOR
31800-38G10
|
$120.21 | ||
|
Available to order. Add to View Price |
|||
|
#2
.COVER
31861-38G00
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
.FUSE (30A)
09481-30501
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW (6X8)
09128-06013
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
RECTIFIER ASSY
32800-10G30
|
$349.54 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, RECT FTG
32830-48G00
|
$9.22 | ||
|
Unavailable |
|||
|
#7
BOLT
02162-0620C
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW (6X16)
02162-0616A
Superseded by 02162-0616B
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#9
COIL ASSY,IGNITION
33410-35F10
Superseded by 33410-35F11
|
$176.21 | ||
|
Available to order. Add to View Price |
|||
|
#10
COIL ASSY, IGNITION FRONT
33410-38A20
|
$176.66 | ||
|
Available to order. Add to View Price |
|||
|
#11
COIL ASSY, IGNITION REAR
33410-48G00
|
$176.66 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, IGNITION COIL
33414-48G00
|
$16.83 | ||
|
Unavailable |
|||
|
#13
SPACER (6.4X10X18)
09180-06195
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP(L:80)
09404-06433
Superseded by 09404-06036
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
01547-0535A
|
$1.46 | ||
|
Unavailable |
|||
|
#16
BOLT
01550-0616A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP ASSY, SPARK PLUG
33510-20E00
|
$37.38 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL, SPARK PLUG
33541-47D00
|
$9.67 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAL,HIGH TENSION CORD
33542-38B00
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#20
CONTROL UNIT,FI
32920-48GH0
Superseded by 32920-48GH1
|
$1,498.64 | ||
|
Unavailable |
|||
|
#21
HOLDER,FI CONTROL UNIT
32980-48G00
Superseded by 32980-48G01
|
$20.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
SENSOR ASSY,FUEL CUT
33960-06G10
|
$111.08 | ||
|
Available to order. Add to View Price |
|||
|
#23
ACTUATOR ASSY, EXHAUST CONTRO
33970-48G00
Superseded by 33970-48G02
|
$438.24 | ||
|
Unavailable |
|||
|
#24
COVER, ACTUATOR
33973-48G01
|
$16.70 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
01560-0625A
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
