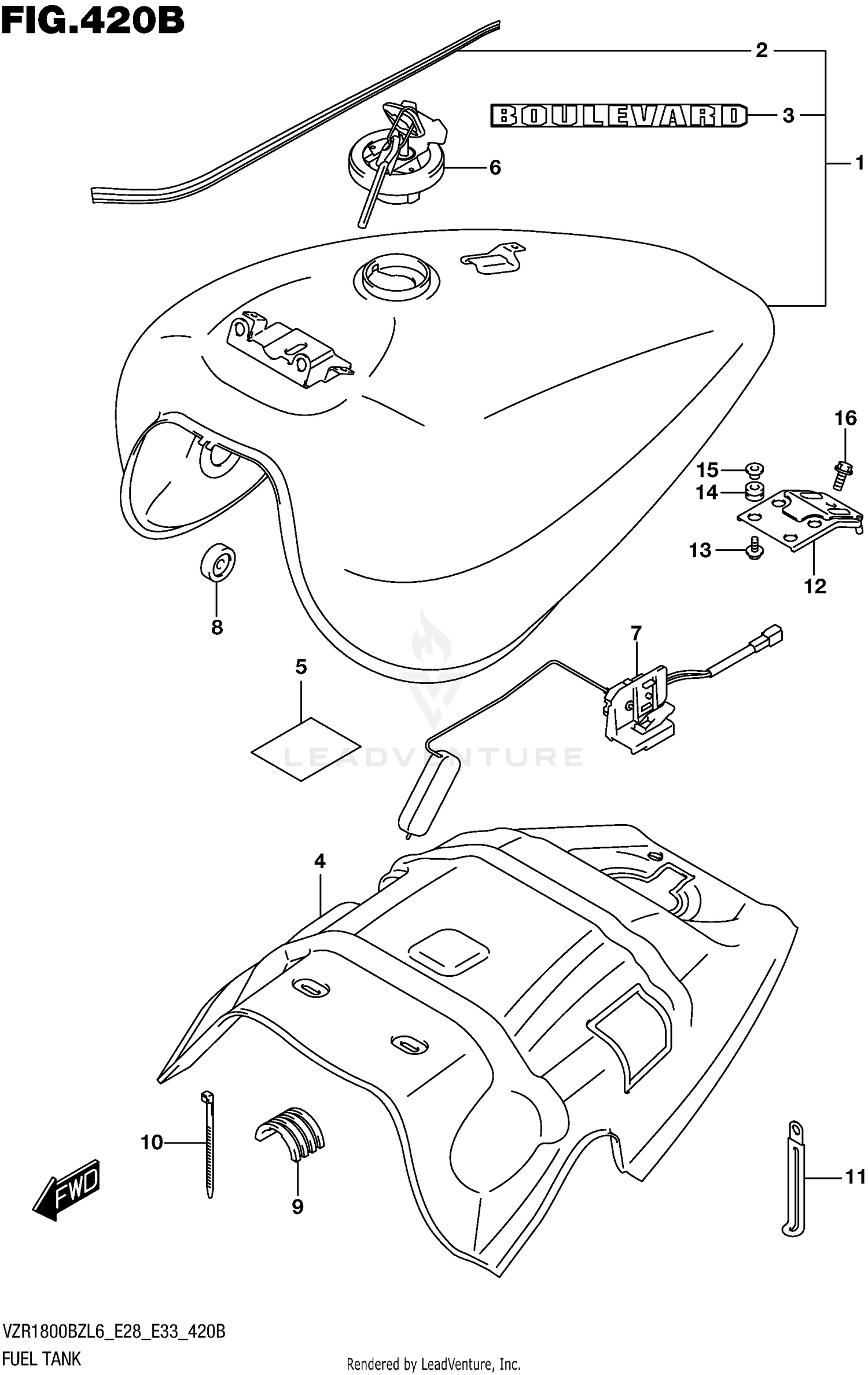

Fuel Tank (vzr1800bzl6 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1-1
TANK ASSY, FUEL (BLUE/BLACK)
44100-48GU0-BBD
|
$1,659.58 | ||
|
Available to order. Add to View Price |
|||
|
#1-2
TANK ASSY, FUEL (GRAY)
49100-48G50-PGZ
|
$1,713.10 | ||
|
Available to order. Add to View Price |
|||
|
#2
.TAPE SET, FUEL TANK
68110-48GB0-BBP
|
$163.95 | ||
|
Available to order. Add to View Price |
|||
|
#3-1
.EMBLEM, "BOULEVARD" (GRAY)
68111-48G20-YHG
|
$27.67 | ||
|
Available to order. Add to View Price |
|||
|
#3-2
.EMBLEM, "BOULEVARD" (BLACK)
68111-48G40-YKV
|
$28.72 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHIELD, TANK HEAT
44191-48G10
|
$359.79 | ||
|
Available to order. Add to View Price |
|||
|
#5
TAPE
44192-48G00
|
$16.41 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP SET,FUEL TANK
44200-39870
Superseded by 44200-39871
|
$253.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
GAUGE ASSY,FUEL
34810-48G00
Superseded by 34810-48G01
|
$76.26 | ||
|
Unavailable |
|||
|
#8
CUSHION
09329-10007
Superseded by 09329-10026
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CUSHION, FUEL TANK CENTER
44541-13E10
|
$28.89 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP (L:300)
09407-30402
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP(L:80)
09404-06434
Superseded by 09404-06036
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, REAR
44530-48G10
|
$50.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (6X20)
09116-06192
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION (8X18X10)
09320-08001
Superseded by 09320-08527
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
09169-06062
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (8X16)
01550-0816A
|
$2.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
COLOR :
SPECIAL NOTE
|
|||
|
Unavailable |
|||
|
#17
BBD=YKY(BLUE),YVB(BLACK)
SPECIAL NOTE
|
|||
|
Unavailable |
|||
