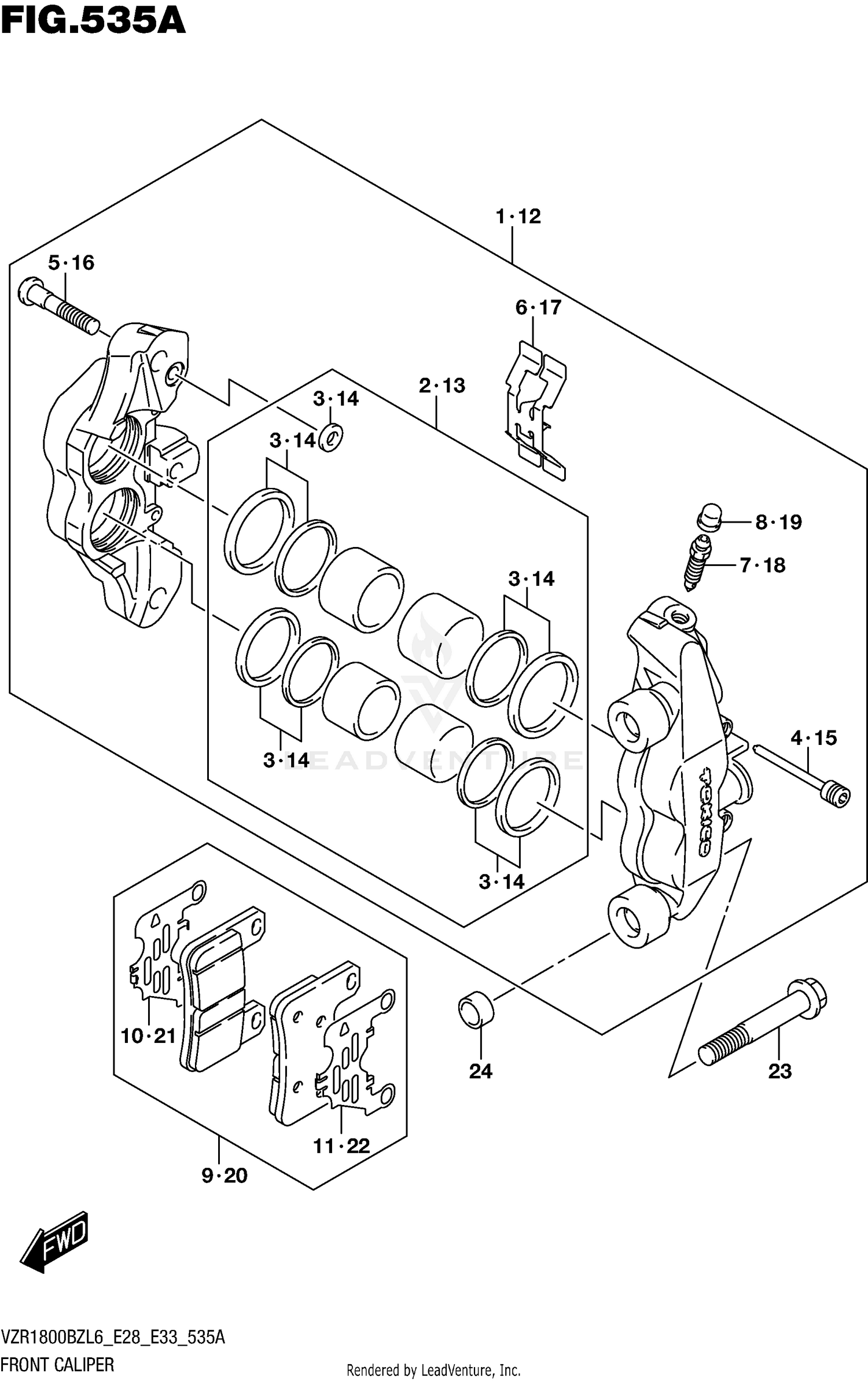

Front Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CALIPER ASSY, FRONT RH
59100-41G40-999
|
$685.48 | ||
|
Available to order. Add to View Price |
|||
|
#2
.PISTON SET
59100-35870
|
$121.82 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL SET, PISTON
59100-35820
Superseded by 59100-29830
|
$55.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
.PIN
59141-41G10
|
$34.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
.BOLT
59145-18G00
|
$11.21 | ||
|
Available to order. Add to View Price |
|||
|
#6
.SPRING, PAD
59151-29G00
|
$16.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
.BLEEDER
59121-18410
|
$11.27 | ||
|
Available to order. Add to View Price |
|||
|
#8
.CAP, BLEEDER PLUG
55156-66310
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
PAD & SHIM SET
59100-29850
|
$58.74 | ||
|
Available to order. Add to View Price |
|||
|
#10
.SHIM, PAD A
59171-41G00
|
$17.41 | ||
|
Available to order. Add to View Price |
|||
|
#11
.SHIM, PAD B
59172-41G00
|
$17.41 | ||
|
Available to order. Add to View Price |
|||
|
#12
CALIPER ASSY, FRONT LH
59300-41G40-999
|
$685.48 | ||
|
Available to order. Add to View Price |
|||
|
#13
.PISTON SET
59100-35870
|
$121.82 | ||
|
Unavailable |
|||
|
#14
SEAL SET, PISTON
59100-35820
Superseded by 59100-29830
|
$55.00 | ||
|
Unavailable |
|||
|
#15
.PIN
59141-41G10
|
$34.84 | ||
|
Unavailable |
|||
|
#16
.BOLT
59145-18G00
|
$11.21 | ||
|
Unavailable |
|||
|
#17
.SPRING, PAD
59151-29G00
|
$16.58 | ||
|
Unavailable |
|||
|
#18
.BLEEDER
59121-18410
|
$11.27 | ||
|
Unavailable |
|||
|
#19
.CAP, BLEEDER PLUG
55156-66310
|
$6.67 | ||
|
Unavailable |
|||
|
#20
PAD & SHIM SET
59100-29850
|
$58.74 | ||
|
Unavailable |
|||
|
#21
.SHIM, PAD A
59171-41G00
|
$17.41 | ||
|
Unavailable |
|||
|
#22
.SHIM, PAD B
59172-41G00
|
$17.41 | ||
|
Unavailable |
|||
|
#23
BOLT (10X70)
09103-10392
|
$6.14 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, CALIPER
59151-41G00
|
$15.46 | ||
|
Available to order. Add to View Price |
|||
