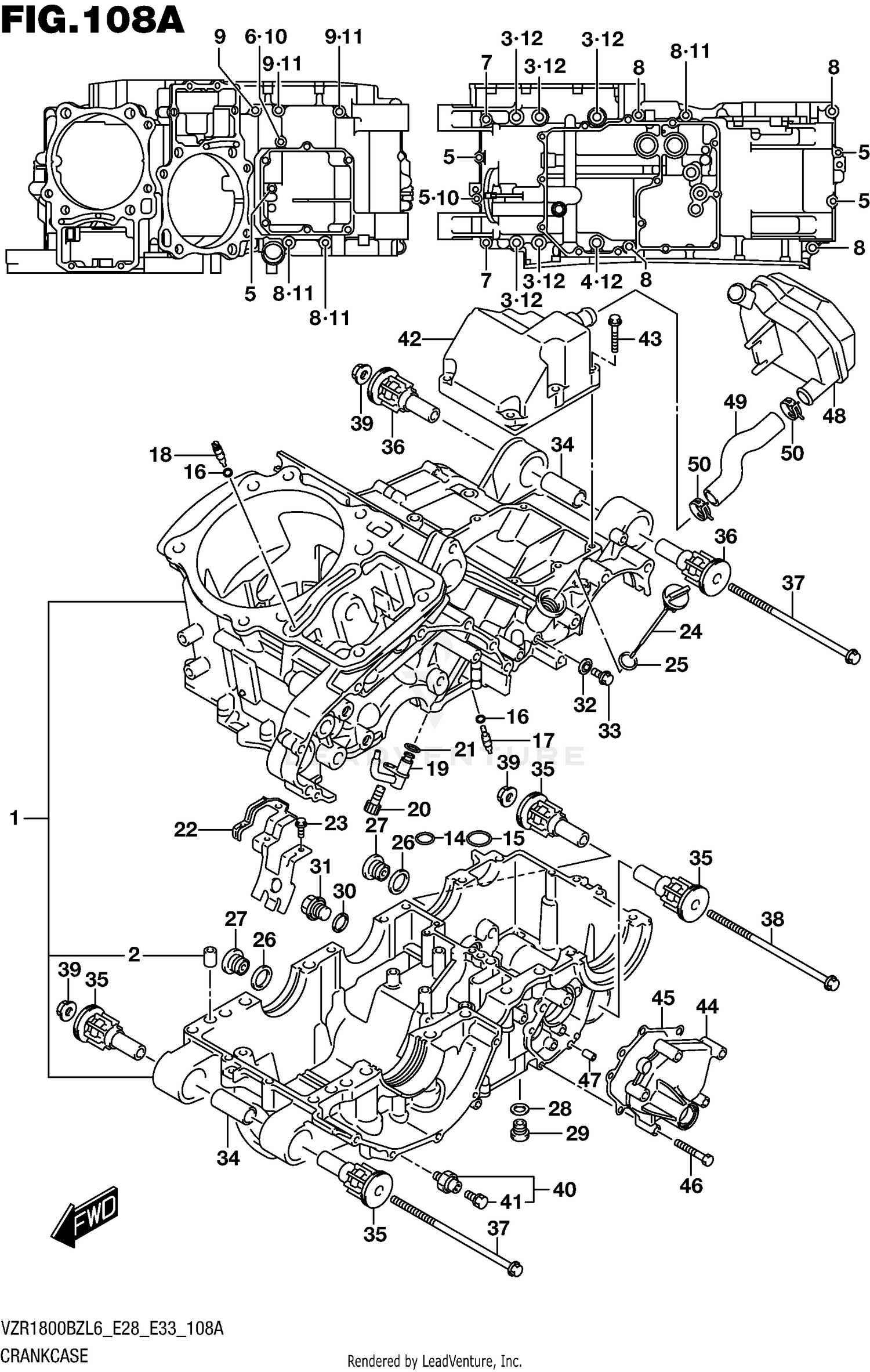

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11300-48881
|
$4,667.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN,CRANKCASE
11319-33E50
|
$6.76 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BOLT (10X100)
09103-10110
|
$8.86 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (10X115)
09103-10406
|
$15.52 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01547-0645A
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
.BOLT
01547-0670A
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
07130-0850A
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
07130-0865A
|
|||
|
Unavailable |
|||
|
#9
BOLT
07130-0885A
|
|||
|
Unavailable |
|||
|
#10
.GASKET (5.8X13X1.2)
09168-06023
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
GASKET (8.2X14X1)
09168-08016
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET (10.2X20X2.3)
09168-10031
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#13-1
WASHER,CRANK THRUST
12228-48G00-0A0
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#13-2
WASHER,CRANK THRUST
12228-48G00-0B0
|
$12.53 | ||
|
Available to order. Add to View Price |
|||
|
#13-3
WASHER,CRANK THRUST
12228-48G00-0C0
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#13-4
WASHER,CRANK THRUST
12228-48G00-0D0
|
$12.53 | ||
|
Available to order. Add to View Price |
|||
|
#13-5
WASHER,CRANK THRUST
12228-48G00-0E0
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#13-6
WASHER,CRANK THRUST
12228-48G00-0F0
|
$8.94 | ||
|
Unavailable |
|||
|
#14
O RING (D:1.9,ID:7.8)
09280-08012
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#15
O RING (D:1.9,ID:12.6)
09280-12009
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#16
O RING (D:1.2,ID:4)
09280-04004
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
JET (#80)
09493-80005
|
$17.07 | ||
|
Available to order. Add to View Price |
|||
|
#18
JET (#80)
09493-80005
|
$17.07 | ||
|
Unavailable |
|||
|
#19
JET, PISTON COOLING
11390-48G00
|
$71.29 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT (6X12)
09106-06075
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#21
O RING (D:1.2,ID:4.7)
09280-05007
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE, OIL SEPARATOR
11521-48G00
|
$15.07 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
01547-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
GAUGE, OIL LEVEL
11971-48G01
|
$13.83 | ||
|
Available to order. Add to View Price |
|||
|
#25
O RING (D:3.1,ID:16.8)
09280-17003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
GASKET (16X22X2)
09168-16002
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
PLUG (16X8)
09248-16012
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#28
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.75 | ||
|
Unavailable |
|||
|
#29
PLUG, SHAFT
09248-14012
Superseded by 09248-14011
|
$3.68 | ||
|
Available to order. Add to View Price |
|||
|
#30
GASKET (12.1X16.2X3.7)
09168-12002
|
$1.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
PLUG (12X10)
09247-12006
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#32
GASKET (5.8X13X1.2)
09168-06023
|
$2.45 | ||
|
Unavailable |
|||
|
#33
BOLT
01547-0612A
|
$2.45 | ||
|
Unavailable |
|||
|
#34
SPACER, ENG MTG
11611-48G00
|
$17.51 | ||
|
Available to order. Add to View Price |
|||
|
#35
BUSH, ENG MTG
11652-10G50
|
$32.04 | ||
|
Available to order. Add to View Price |
|||
|
#36
BUSH, ENG MTG
11652-10G30
|
$31.29 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT (10X215)
09103-10041-A05
|
$12.66 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT (10X195)
09103-10118
|
$13.46 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT
08319-3110A
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#40
SWITCH ASSY,OIL PRESSURE
37820-33D10
Superseded by 37820-33D11
|
$26.40 | ||
|
Unavailable |
|||
|
#41
.BOLT,OIL PRESSURE SWITCH
37822-33D00
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#42
COVER, BREATHER
11330-48G00
|
$134.36 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT
01547-0630A
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#44
COVER, GEAR SHIFT
11371-48G00
|
$118.30 | ||
|
Available to order. Add to View Price |
|||
|
#45
GASKET
11485-48G00
|
$7.35 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT
01547-0645A
|
$2.95 | ||
|
Unavailable |
|||
|
#47
PIN
04211-09149
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
TANK, OIL RETURN
11332-48G00
|
$79.07 | ||
|
Available to order. Add to View Price |
|||
|
#49
HOSE, OIL RETURN TANK
11333-48G00
|
$16.66 | ||
|
Available to order. Add to View Price |
|||
|
#50
CLIP
09401-20405
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
