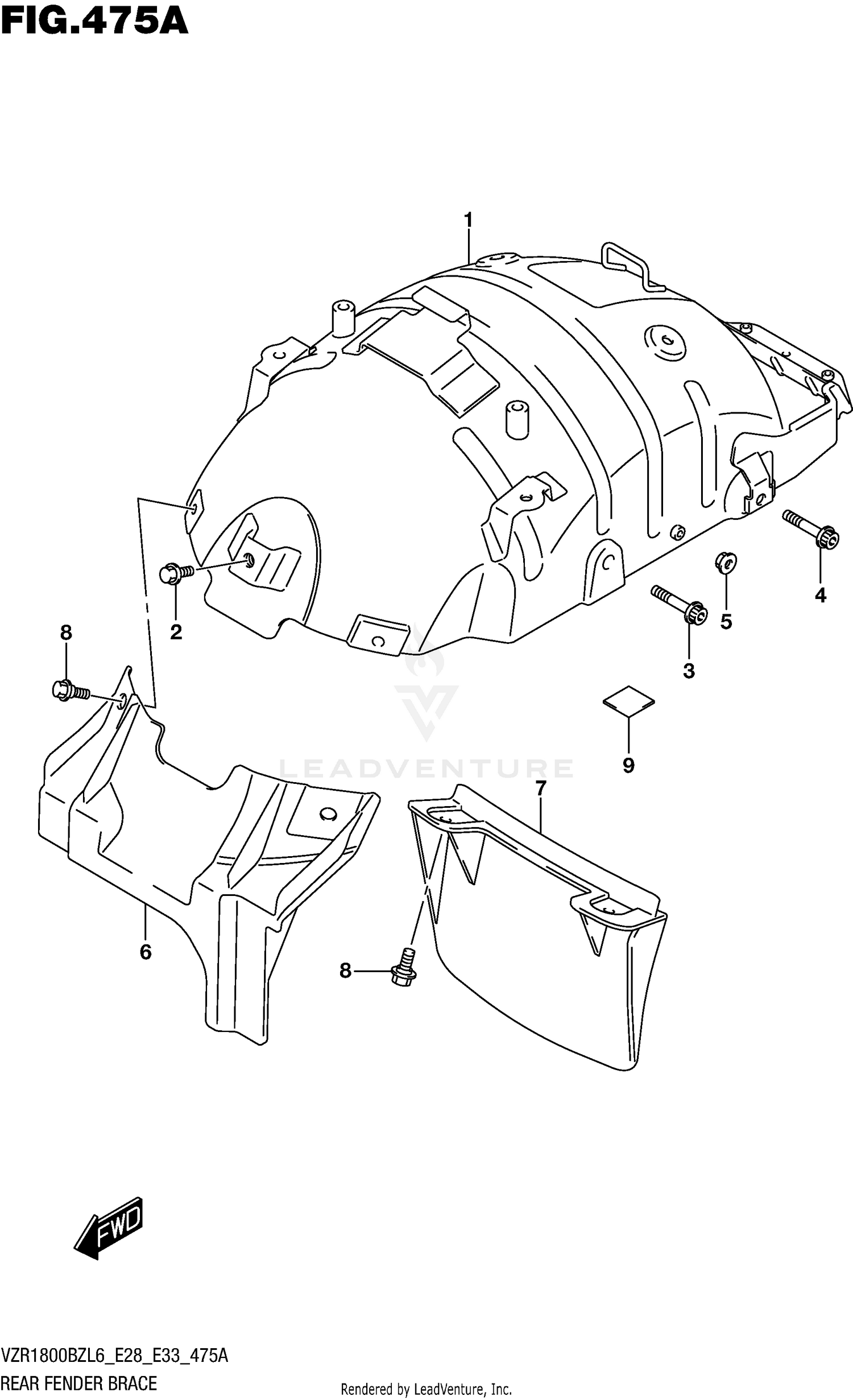

Rear Fender Brace Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACE, REAR FENDER
63140-48G00
|
$535.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT (8X12)
01550-0812A
|
$2.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
BOLT (8X70)
09106-08182
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (8X50)
09106-08183
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
08316-1008A
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
MUDGUARD, FRONT UPPER
63411-48G00
|
$34.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
MUDGUARD, FRONT LOWER
63421-48G00
|
$19.14 | ||
|
Unavailable |
|||
|
#8
BOLT (6X12)
09111-06107
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION (15X15X1)
94429-13E00
Superseded by 94429-20K00
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
