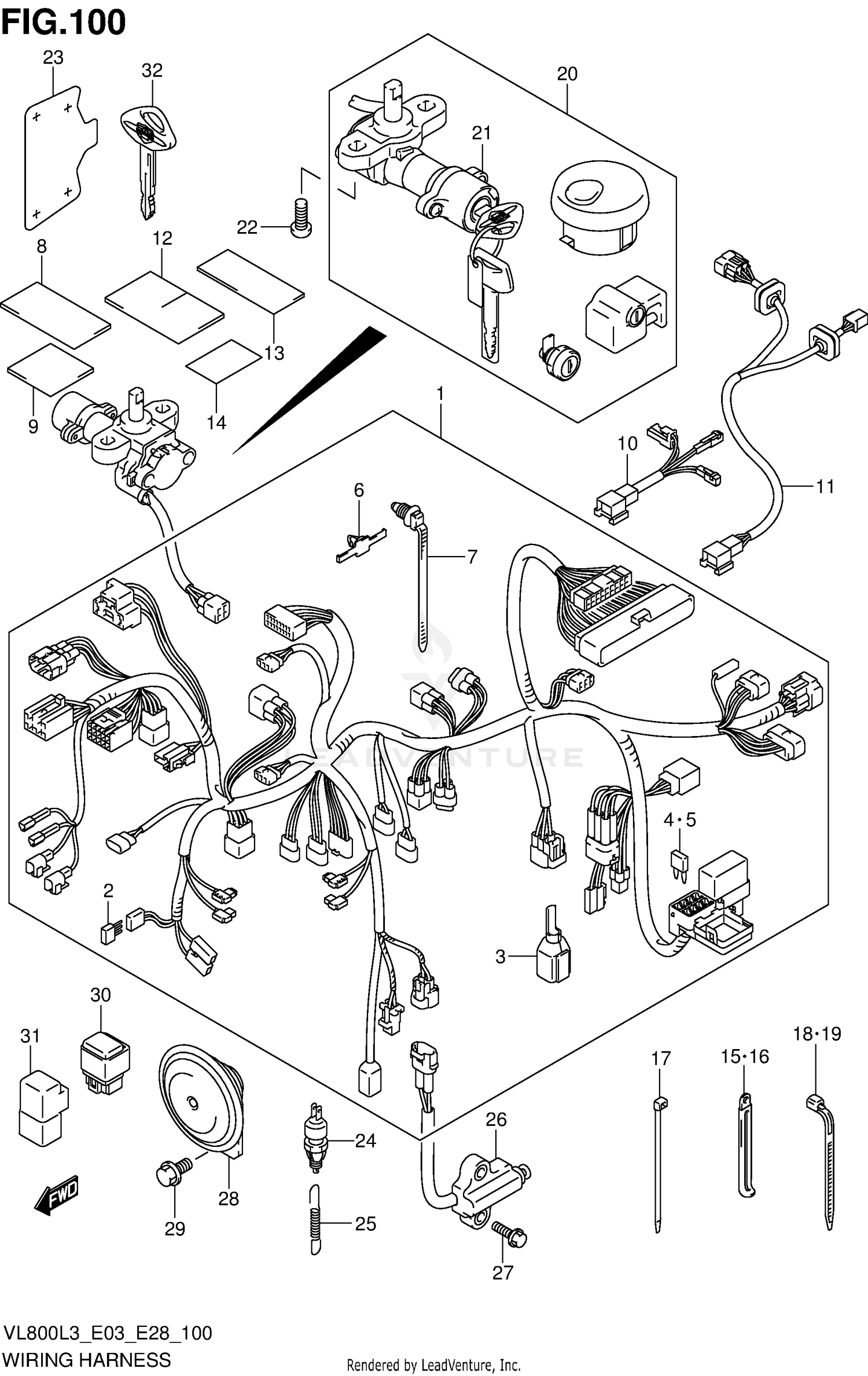

Wiring Harness (vl800cl3 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNSSS, WIRING
36610-41F30
|
$712.53 | ||
|
Available to order. Add to View Price |
|||
|
#2
RECTIFIER ASSY
32800-16A00
|
$28.50 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOOT
36717-41F00
|
$9.07 | ||
|
Unavailable |
|||
|
#4
FUSE (10A)
09481-10501
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
FUSE (20A)
09481-20501
|
$1.96 | ||
|
Unavailable |
|||
|
#6
CLAMP
09407-05410
|
$4.09 | ||
|
Unavailable |
|||
|
#7
CLAMP (L:154)
09407-17403
|
$6.24 | ||
|
Available to order. Add to View Price |
|||
|
#8
TAPE, FENDER
36611-16G00
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#9
TAPE, HARNESS (35X35)
36611-41F00
|
$5.43 | ||
|
Unavailable |
|||
|
#10
WIRE, REAR COMB NO.2
36856-41F00
|
$39.77 | ||
|
Available to order. Add to View Price |
|||
|
#11
WIRE,RR COMB
36858-41F00
Superseded by 36858-41F01
|
$35.26 | ||
|
Unavailable |
|||
|
#12
PROTECTOR (30X50X3)
36920-33C00
|
$1.84 | ||
|
Unavailable |
|||
|
#13
PROTECTOR,WIRING HARNESS (20X
36920-45G00
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#14
PTOTECTOR, WIRING HARNESS
94474-17H00
|
$4.96 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP(L:80)
09404-06433
Superseded by 09404-06036
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP (L:135)
09404-06435
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP (L:145)
09407-14407
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP (L:165)
09407-18402
|
$2.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
CLAMP (L:190)
09407-19401
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#20
LOCK SET
37102-41870
Superseded by 37102-41873
|
$351.94 | ||
|
Unavailable |
|||
|
#21
.LOCK ASSY,STEERING
37100-41F70
Superseded by 37100-41F71
|
$163.25 | ||
|
Unavailable |
|||
|
#22
BOLT (8X20)
09139-08016
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#23
PROTECTOR, IGNITION SWITCH
37187-41F10
|
$13.15 | ||
|
Unavailable |
|||
|
#24
SWITCH ASSY, STOP LAMP
37740-24A00
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPRING
09443-06073
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#26
SWITCH ASSY,SIDE STAND
37840-41F00
Superseded by 37840-41F02
|
$65.20 | ||
|
Unavailable |
|||
|
#27
BOLT (6X20)
09103-06279
|
$1.58 | ||
|
Unavailable |
|||
|
#28
HORN ASSY
38500-41F30
|
$94.73 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT (8X16)
01550-0816A
|
$2.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
RELAY ASSY, HEAD LAMP
38740-24A00
|
$68.37 | ||
|
Available to order. Add to View Price |
|||
|
#31
RELAY ASSY, FUEL PUMP
38740-24X50
|
$55.84 | ||
|
Available to order. Add to View Price |
|||
|
#32
KEY, BLANK "BOULEVARD"
37146-41FA0
|
$54.69 | ||
|
Available to order. Add to View Price |
|||
