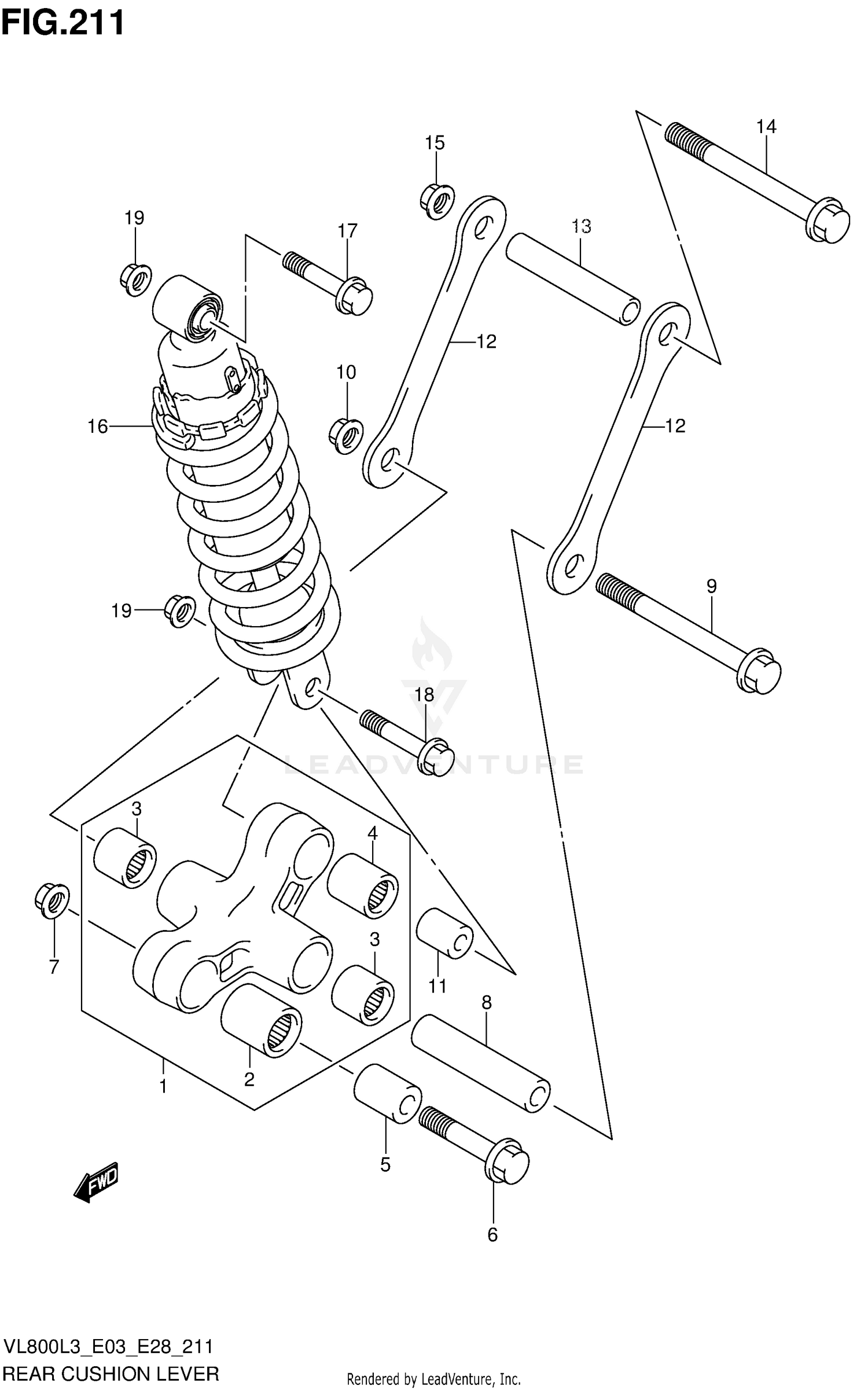

Rear Cushion Lever (vl800tl3 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER SET,REAR CUSHION
62600-33890
|
$345.60 | ||
|
Unavailable |
|||
|
#2
.BEARING (20X27X30)
09263-20073
Superseded by 09263-20121
|
$22.02 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BEARING
09263-17039
Superseded by 09263-17058
|
$20.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
.BEARING (17X24X26)
09263-17034
Superseded by 09263-17057
|
$25.76 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER,RR CUSHION LVR,FR (12X
62684-12C00
|
$19.83 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT,CUSHION LEVER,FRONT (12X
62668-42A02
|
$11.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
08319-3112A
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER,REAR CUSHION LEVER,CTR
62626-33D00
|
$26.18 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, CENTER (12X124)
62621-33D00
|
$36.37 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
08319-3112A
|
$4.57 | ||
|
Unavailable |
|||
|
#11
SPACER, REAR (10X17X30)
62684-40A10
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#12
ROD, REAR CUSHION LEVER
62641-41F00
|
$34.92 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER,REAR CUSHION LEVER,CTR
62626-33D00
|
$26.18 | ||
|
Unavailable |
|||
|
#14
BOLT, ROD (12X124)
62621-33D00
|
$36.37 | ||
|
Unavailable |
|||
|
#15
NUT
08319-3112A
|
$4.57 | ||
|
Unavailable |
|||
|
#16
ABSORBER ASSY, REAR SHOCK
62100-41F20
|
$923.00 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (10X50)
09103-10064
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT (10X54)
09103-10101
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
08319-3110A
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
