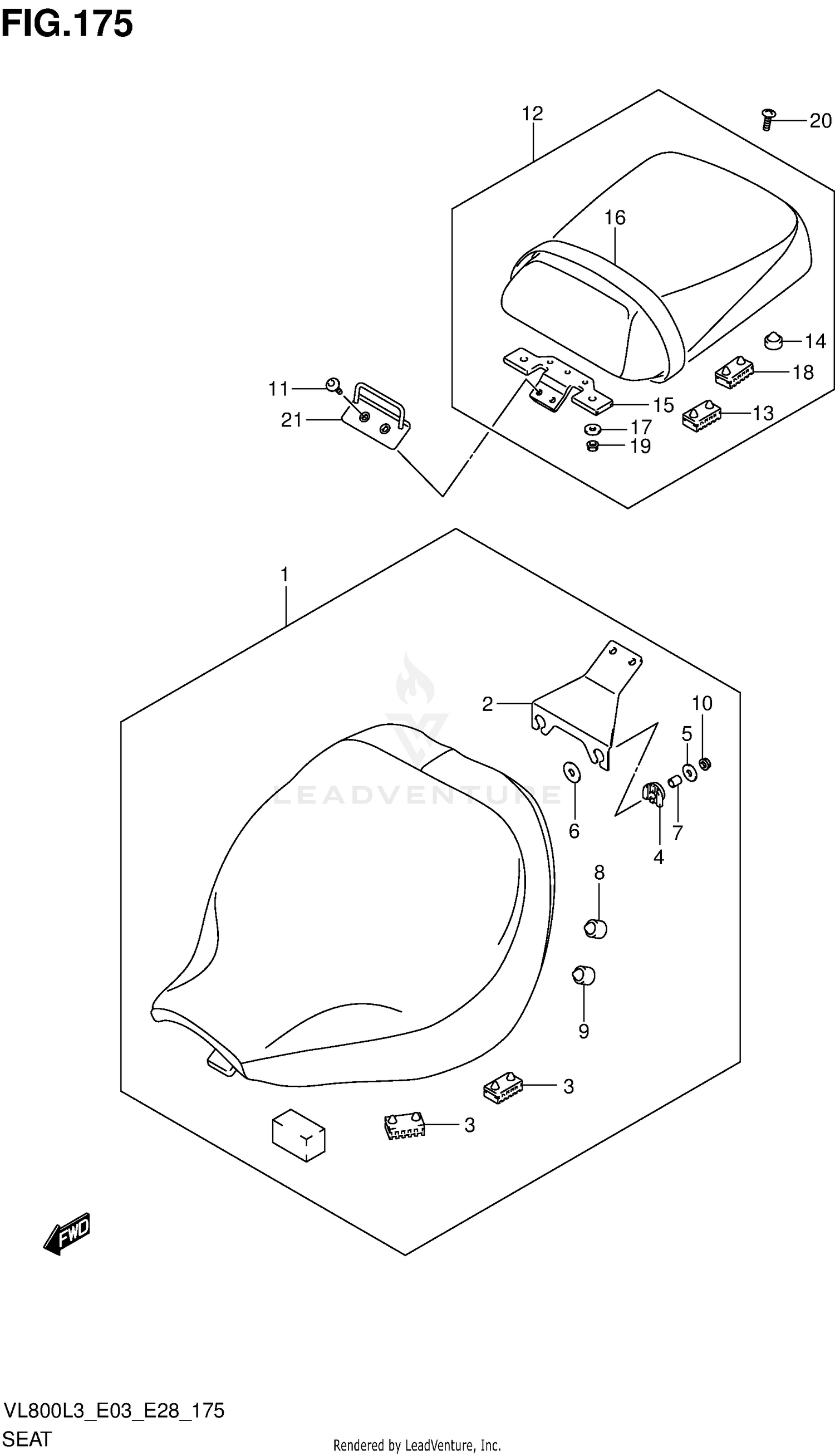

Seat (vl800cl3 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT ASSY (BLACK)
45100-43H00-V4Y
Superseded by 45100-43H02-V4Y
|
$419.35 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, SEAT
45115-43H00
|
$40.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
CUSHION
45149-31300
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUSHION
45215-43H00
|
$23.59 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER (6.5X20X1.6)
09160-06088
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER (6.5X24X1.6)
09160-06501
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER (6.5X10X11)
09180-06288
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
.CUSHION (11.5X22X20)
09321-10002
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CUSHION
09321-10033
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
08316-1006A
|
$2.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT (6X18)
09106-06064
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAT ASSY,PILLION (BLACK)
45300-43H00-V4Y
Superseded by 45300-43H01-V4Y
|
$280.72 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION, PILLION SEAT NO.2
45149-31300
|
$4.40 | ||
|
Unavailable |
|||
|
#14
CUSHION
45147-12FA0
|
$6.74 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, PILLION SEAT
45330-43H00
|
$60.98 | ||
|
Available to order. Add to View Price |
|||
|
#16
.BAND,SEAT PILLION (BLACK)
45380-43H00-V4Y
Superseded by 45380-43H01-V4Y
|
$9.12 | ||
|
Unavailable |
|||
|
#17
WASHER (6.5X20X1.6)
09160-06088
|
$2.02 | ||
|
Unavailable |
|||
|
#18
.CUSHION (11.5X22X20)
09321-10002
|
$2.30 | ||
|
Unavailable |
|||
|
#19
NUT
08316-1006A
|
$2.64 | ||
|
Unavailable |
|||
|
#20
BOLT (8X16)
09106-08140
|
$7.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BRACKET, SEAT SUPPORT
45210-43H00
|
$31.90 | ||
|
Available to order. Add to View Price |
|||
