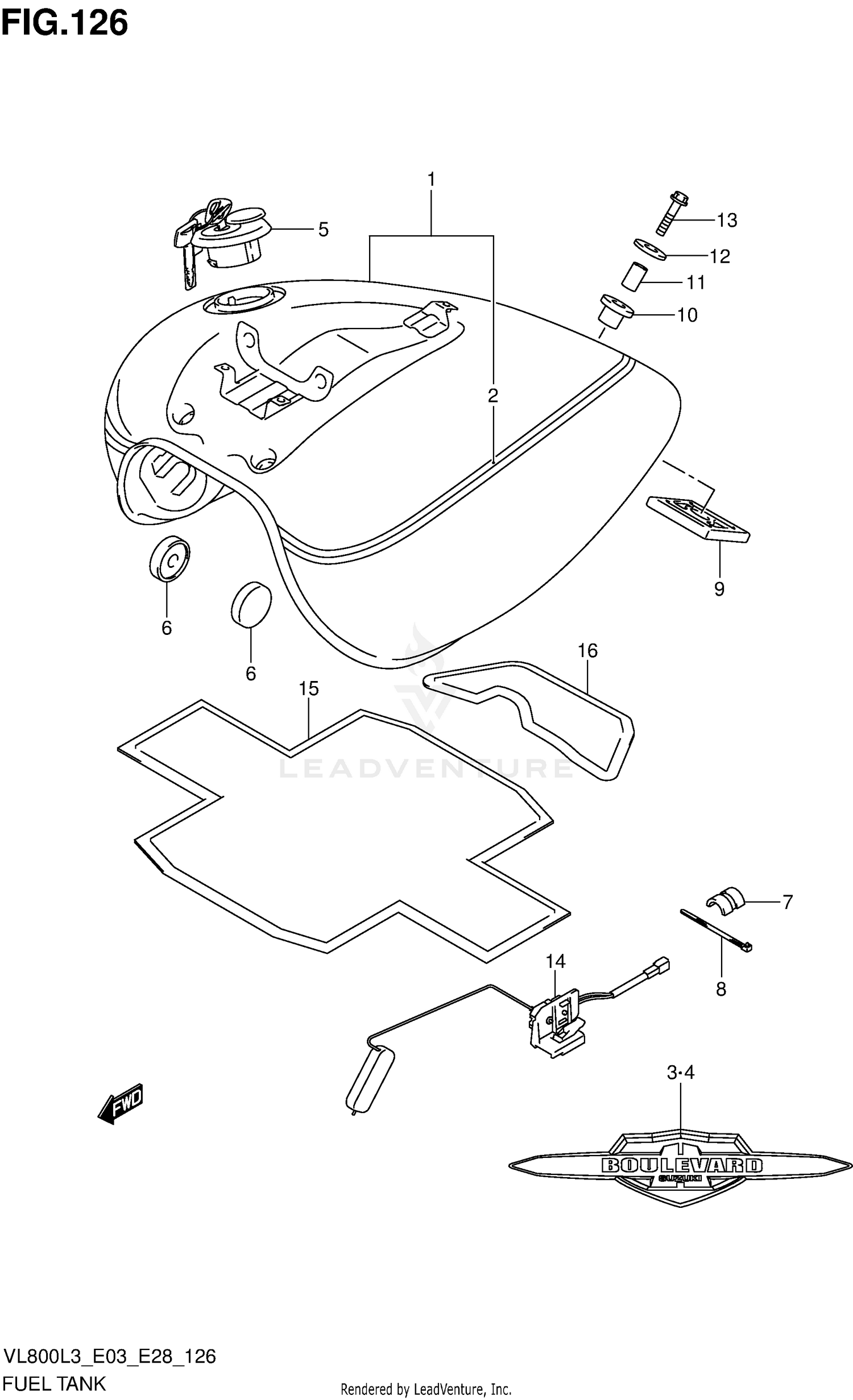

Fuel Tank (vl800tl3 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY, FUEL (WHITE/SILVER)
44100-43HD0-FGF
|
$1,317.95 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK ASSY, FUEL (RED/BLACK)
44100-43HD0-HYA
|
$1,317.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
TAPE SET (BLACK)
68110-41F30-AGU
|
$68.43 | ||
|
Available to order. Add to View Price |
|||
|
#2
TAPE SET (NONE)
68110-41F30-AGV
|
$58.67 | ||
|
Unavailable |
|||
|
#3
EMBLEM, RH
68111-41F31
|
$77.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
EMBLEM, LH
68121-41F31
|
$77.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP SET,FUEL TA
44200-41830
Superseded by 44200-41832
|
$172.68 | ||
|
Unavailable |
|||
|
#6
CUSHION
09329-10007
Superseded by 09329-10026
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CUSHION,FUEL TANK LWR
44541-14F10
Superseded by 44541-14F11
|
$5.86 | ||
|
Unavailable |
|||
|
#8
CLAMP (L:248)
09407-25402
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION,FUEL TANK RR LWR
44542-41F00
Superseded by 44542-41F01
|
$10.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION,FUEL TANK REAR UPPER
44541-41F01
Superseded by 44541-41F02
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER (8.2X12.5X23.5)
09180-08057
Superseded by 09180-08227
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (8.5X33X1.5)
09160-08146
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01550-0835A
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#14
GAUGE ASSY,FUEL
34810-41F11
Superseded by 34810-41F12
|
$138.59 | ||
|
Unavailable |
|||
|
#15
SHIELD, HEAT NO.1
44192-39G00
|
$160.52 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHIELD, HEAT NO.2
44191-43H00
|
$94.73 | ||
|
Available to order. Add to View Price |
|||
