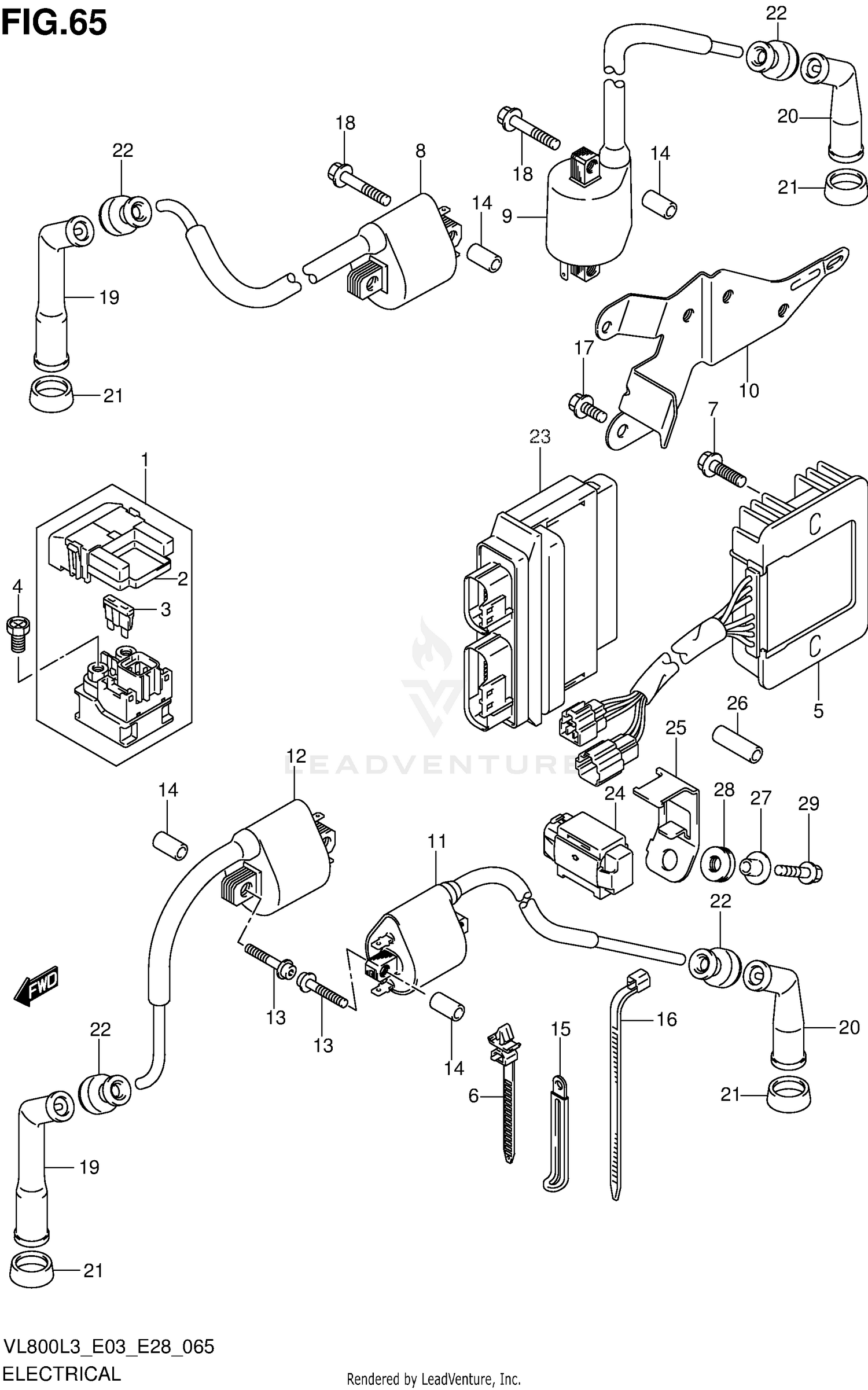

Electrical (vl800cl3 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY,STARTING MOTOR
31800-21E20
Superseded by 31800-21E30
|
$83.16 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER
31861-47E00
|
$17.46 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE (30A)
09481-30101
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW (6X8)
09128-06013
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
RECTIFIER ASSY
32800-47H00
|
$325.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP (L:90)
09407-11402
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
02162-0620B
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#8
COIL ASSY,IGNITION REAR
33410-39G00
|
$134.23 | ||
|
Available to order. Add to View Price |
|||
|
#9
COIL ASSY,IGNITION REAR
33410-39G10
|
$134.23 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, IGNITION COIL REAR
33414-39G00
|
$15.62 | ||
|
Unavailable |
|||
|
#11
COIL ASSY,IGNITION FRONT
33420-39G00
|
$134.23 | ||
|
Available to order. Add to View Price |
|||
|
#12
COIL ASSY,IGNITION
33420-41F10
Superseded by 33420-41F11
|
$93.36 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (5X35)
09106-05033
|
$3.68 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER (6.4X10X18)
09180-06195
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP(L:80)
09404-06433
Superseded by 09404-06036
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP (L:190)
09407-19401
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
01547-0610A
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
01547-0635A
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAP ASSY, SPARK PLUG (CENTER)
33510-11410
|
$32.06 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAP ASSY, SPARK PLUG (SIDE)
33510-38B00
|
$34.27 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL, SPARK PLUG
33541-47D00
|
$9.67 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAL,HIGH TENSION CORD
33542-38B00
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#23
CONTROL UNIT, FI
32920-39GJ0
|
$1,112.63 | ||
|
Unavailable |
|||
|
#24
SENSOR ASSY,FUEL CUT
33960-06G10
|
$111.08 | ||
|
Available to order. Add to View Price |
|||
|
#25
BRACKET, FUEL CUT SENSOR
33961-41F00
|
$3.58 | ||
|
Unavailable |
|||
|
#26
HOSE,5X10X600
09352-50823-600
Superseded by 44421-13ER0
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPACER (6.2X8.4X6.9)
09180-06325
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#28
CUSHION (8X18X5.8)
09320-06017
Superseded by 09320-08516
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
01547-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
