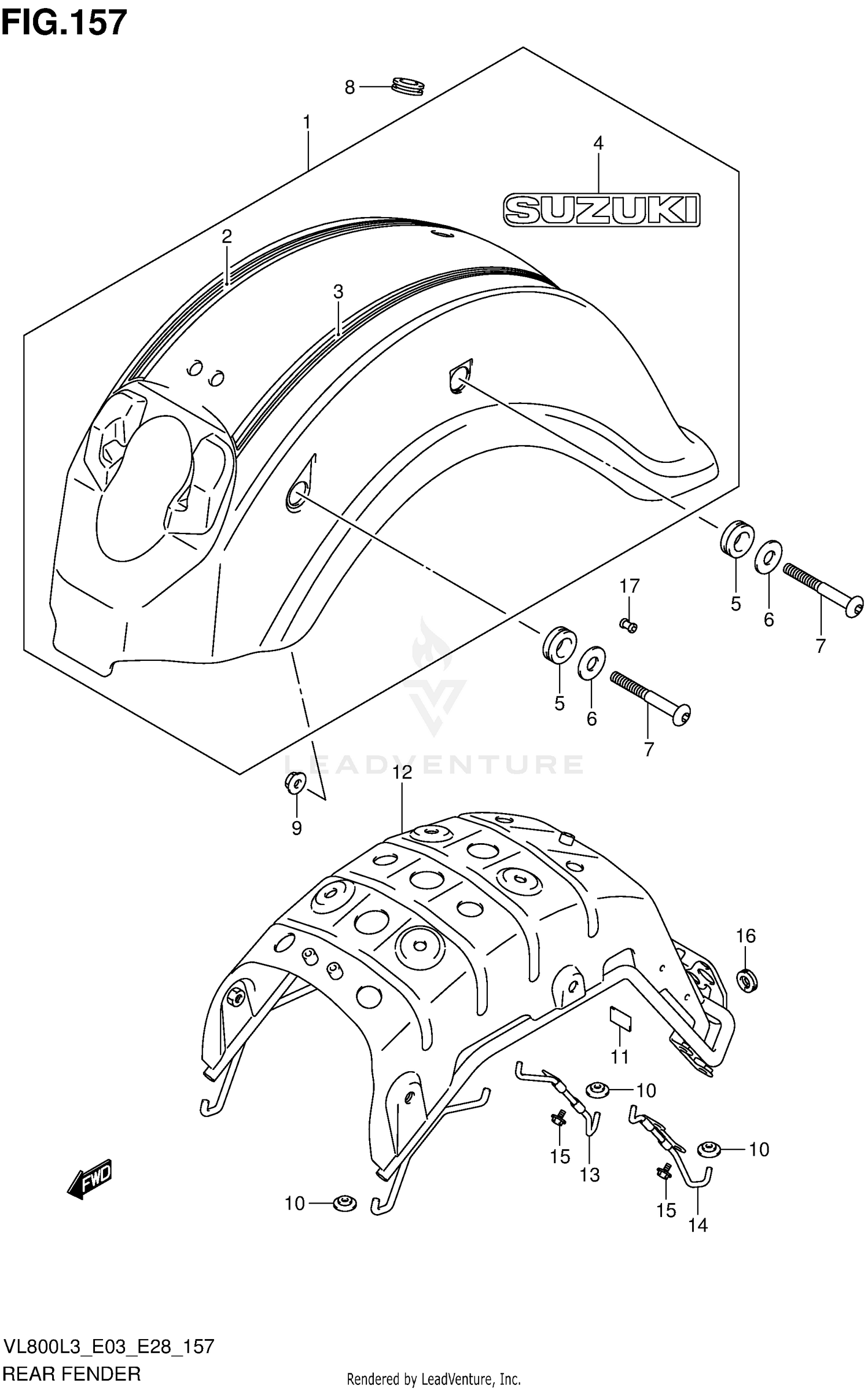

Rear Fender (vl800cl3 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER,RR
63110-43H20-AAC
Superseded by 63110-43H21-AAC
|
$714.99 | ||
|
Unavailable |
|||
|
#1
FENDER,RR
63110-43H20-FGF
Superseded by 63110-43H21-FGF
|
$769.35 | ||
|
Unavailable |
|||
|
#2
TAPE SET, RH (BLUE/SILVER)
68170-43H00-AAE
|
$38.53 | ||
|
Available to order. Add to View Price |
|||
|
#2
TAPE SET, RH (BLACK)
68170-43H00-AGU
|
$37.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
TAPE SET, LH (BLUE/SILVER)
68710-43H00-AAE
|
$38.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
TAPE SET, LH (BLACK)
68710-43H00-AGU
|
$37.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
.EMBLEM,"SUZUKI" (SILVER)
68271-34A00-YES
Superseded by 68271-34A01-YES
|
$8.70 | ||
|
Available to order. Add to View Price |
|||
|
#4
EMBLEM,"SUZUKI"
68271-34A00-YJH
Superseded by 68271-34A01-YJH
|
$9.03 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION,FRAME COVER,UP,REAR
47191-24F00
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER (15.5X26X2.3)
09160-15002
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
63161-41F00
|
$11.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION
09320-15008
|
$4.81 | ||
|
Available to order. Add to View Price |
|||
|
#9
.NUT
08316-1008B
|
$3.21 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION
09320-06026
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION,FR FEND
53145-17C11
Superseded by 53145-17C12
|
$5.53 | ||
|
Unavailable |
|||
|
#12
PLATE, REAR FENDER
63130-43H00
|
$450.56 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET,RR FENDER LWR RH
63150-43H00
|
$44.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET,RR FENDER LWR LH
63160-43H00
|
$44.27 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
01550-0610B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET
09308-10017
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLUG (OD:9)
09250-07004
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
