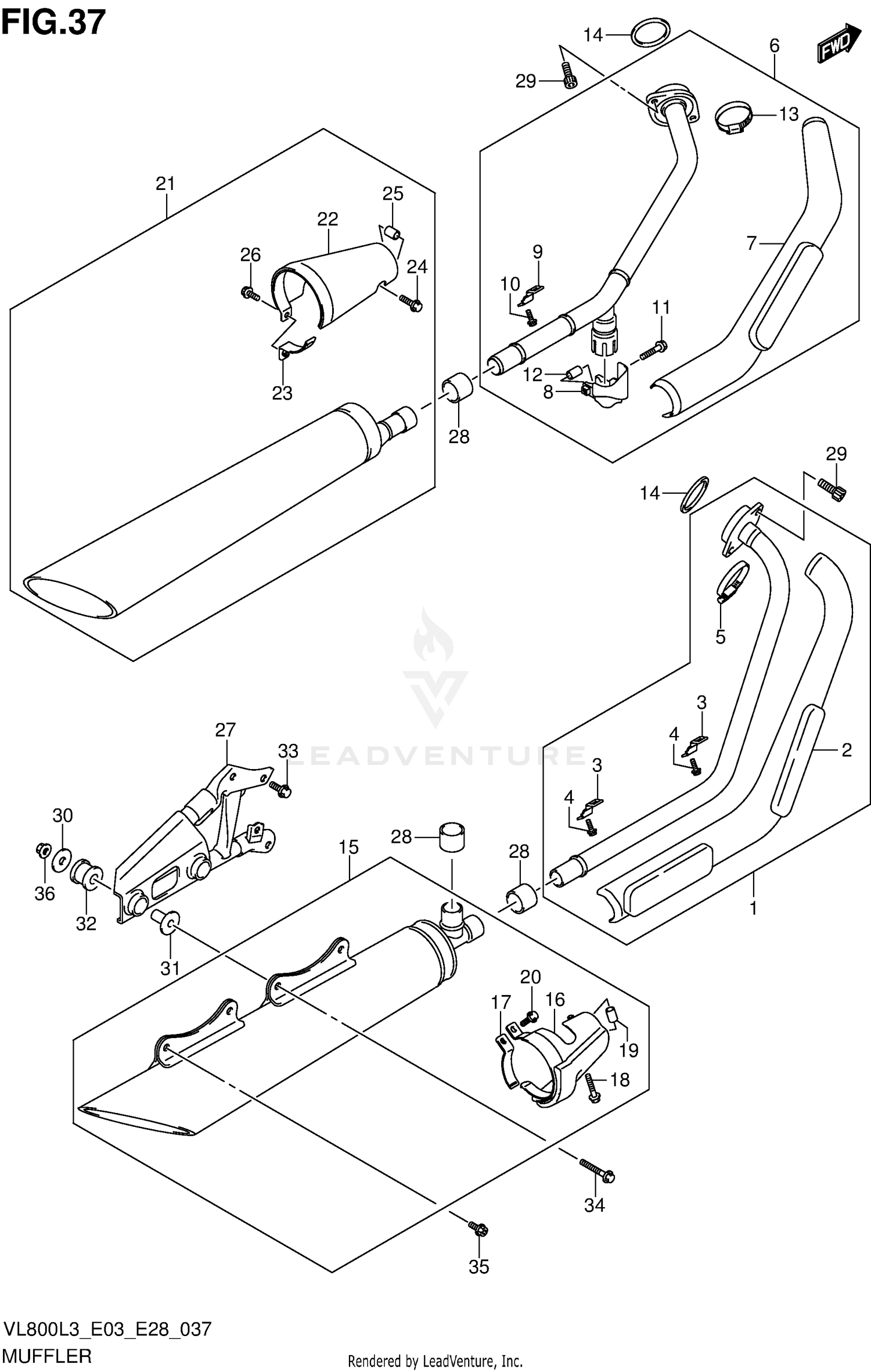

Muffler (vl800l3 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE,EXH FR
14150-39G00
|
$691.08 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER
14193-39G00
|
$508.02 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP
14185-41F00
|
$53.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
07120-0616A
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#5
BAND
14185-39G00
|
$20.46 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE, EXHAUST RR
14160-39G00
|
$324.74 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER
14194-39G00
|
$293.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP, CONNECTOR
14195-39G00
|
$49.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP
14185-41F00
|
$53.58 | ||
|
Unavailable |
|||
|
#10
BOLT
07120-0616A
|
$3.08 | ||
|
Unavailable |
|||
|
#11
BOLT (8X35)
09103-08365
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER
14167-22H00
|
$18.76 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAND
14185-39G00
|
$20.46 | ||
|
Unavailable |
|||
|
#14
GASKET,EXH PIPE
14181-10F00
|
$15.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BODY,MUFFLER FR (BLACK/MAROON
14310-39G00-H01
|
$1,142.76 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER
14344-39G00
|
$263.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
14399-22H00
|
$35.82 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT (8X35)
09103-08365
|
$4.83 | ||
|
Unavailable |
|||
|
#19
SPACER
14167-22H00
|
$18.76 | ||
|
Unavailable |
|||
|
#20
BOLT
07120-0616A
|
$3.08 | ||
|
Unavailable |
|||
|
#21
BODY,MUFFLER RR (BLACK/MAROON
14340-39G00-H01
|
$973.81 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER
14345-39G00
|
$185.65 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP
14399-22H00
|
$35.82 | ||
|
Unavailable |
|||
|
#24
BOLT (8X35)
09103-08365
|
$4.83 | ||
|
Unavailable |
|||
|
#25
SPACER
14167-22H00
|
$18.76 | ||
|
Unavailable |
|||
|
#26
BOLT
07120-0616A
|
$3.08 | ||
|
Unavailable |
|||
|
#27
BRACKET
14410-39G00
|
$141.40 | ||
|
Available to order. Add to View Price |
|||
|
#28
CONNECTOR,MUFFLER
14771-39G00
|
$29.77 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT (8X25)
09106-08165
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER (8.5X33X1.5)
09160-08146
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPACER (8.6X12X27.1)
09180-08156
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#32
CUSHION
09320-12049
|
$13.00 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT (8X16)
09103-08283-A05
Superseded by 09103-08570
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT
01550-0845B
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT (8X20)
09106-08107
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT
08361-2508A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
