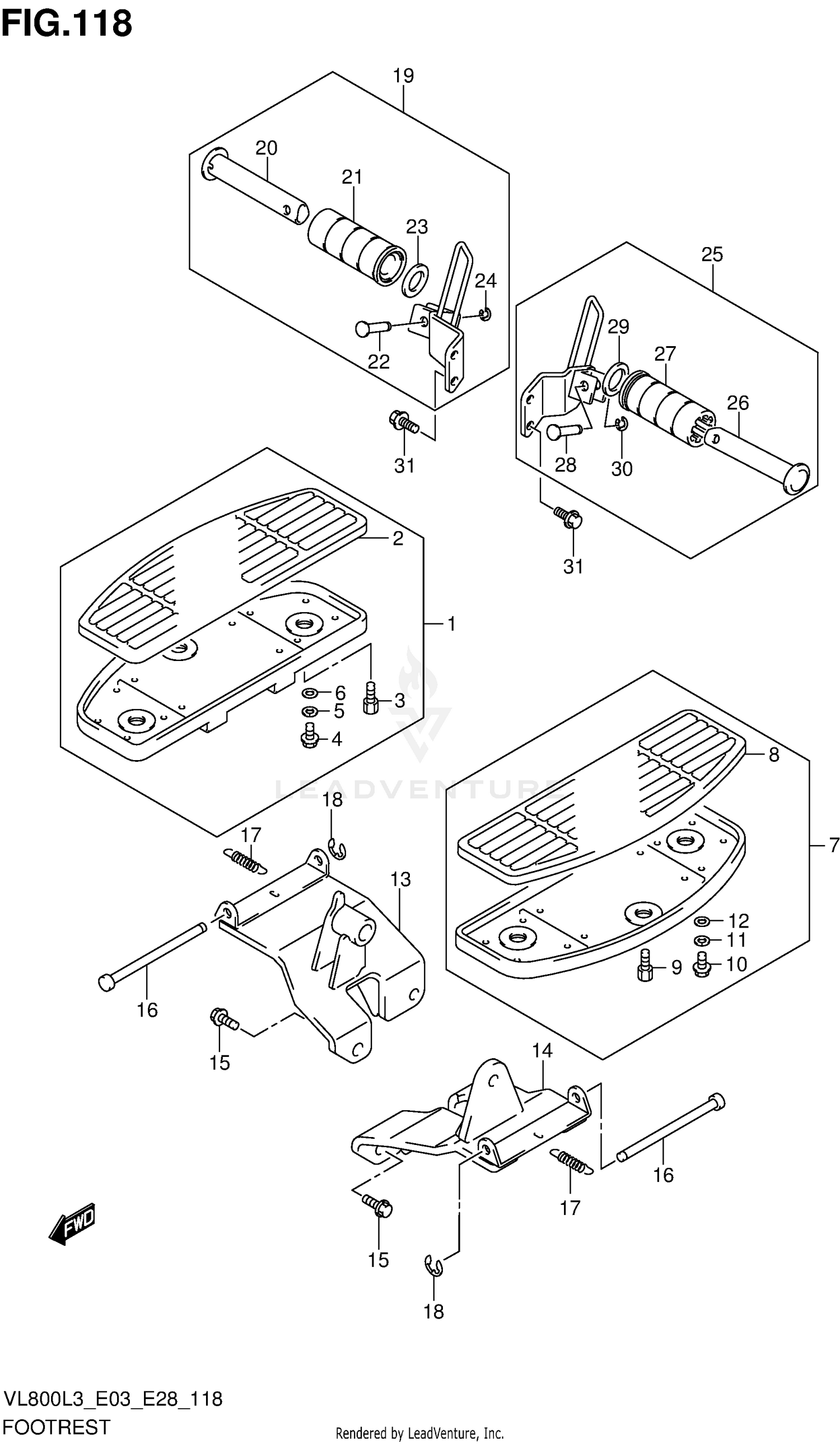

Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FOOTREST ASSY,FRONT RH
43501-10F11
Superseded by 43501-10F12
|
$223.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER
43550-10F10
|
$84.63 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BOLT,BANK SENSOR
43576-07D01
|
$10.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01550-0610A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER (6.5X22X1.6)
09160-06158
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#6
.CUSHION
09320-10036
Superseded by 09320-10077
|
$2.35 | ||
|
Unavailable |
|||
|
#7
FOOTREST ASSY,FRONT LH
43502-10F11
Superseded by 43502-10F12
|
$223.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER
43550-10F10
|
$84.63 | ||
|
Unavailable |
|||
|
#9
.BOLT,BANK SENSOR
43576-07D01
|
$10.93 | ||
|
Unavailable |
|||
|
#10
BOLT
01550-0610A
|
$2.37 | ||
|
Unavailable |
|||
|
#11
WASHER (6.5X22X1.6)
09160-06158
|
$2.43 | ||
|
Unavailable |
|||
|
#12
.CUSHION
09320-10036
Superseded by 09320-10077
|
$2.35 | ||
|
Unavailable |
|||
|
#13
BRACKET, FRONT FOOTREST RH
43510-41F30
|
$104.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET, FRONT FOOTREST LH
43520-41F30
|
$108.03 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
01580-1030B
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN,FRONT FOOTREST
43539-10F00
|
$10.32 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING
09443-11033
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
E-RING
08332-1106A
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#19
FOOTREST ASSY, PILLION RH
43600-41F50
|
$110.34 | ||
|
Available to order. Add to View Price |
|||
|
#20
BAR
43610-39G00
|
$24.33 | ||
|
Available to order. Add to View Price |
|||
|
#21
RUBBER
43612-39G00
|
$12.73 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN
43636-25D00
|
$11.51 | ||
|
Available to order. Add to View Price |
|||
|
#23
.WASHER (19.5X32X2)
09160-19024
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#24
E RING
08332-1104B
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#25
FOOTREST ASSY, PILLION LH
43700-41F50
|
$110.34 | ||
|
Available to order. Add to View Price |
|||
|
#26
BAR
43610-39G00
|
$24.33 | ||
|
Unavailable |
|||
|
#27
RUBBER
43612-39G00
|
$12.73 | ||
|
Unavailable |
|||
|
#28
PIN
43636-25D00
|
$11.51 | ||
|
Unavailable |
|||
|
#29
.WASHER (19.5X32X2)
09160-19024
|
$3.12 | ||
|
Unavailable |
|||
|
#30
E RING
08332-1104B
|
$2.18 | ||
|
Unavailable |
|||
|
#31
BOLT (8X16)
09103-08412
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
