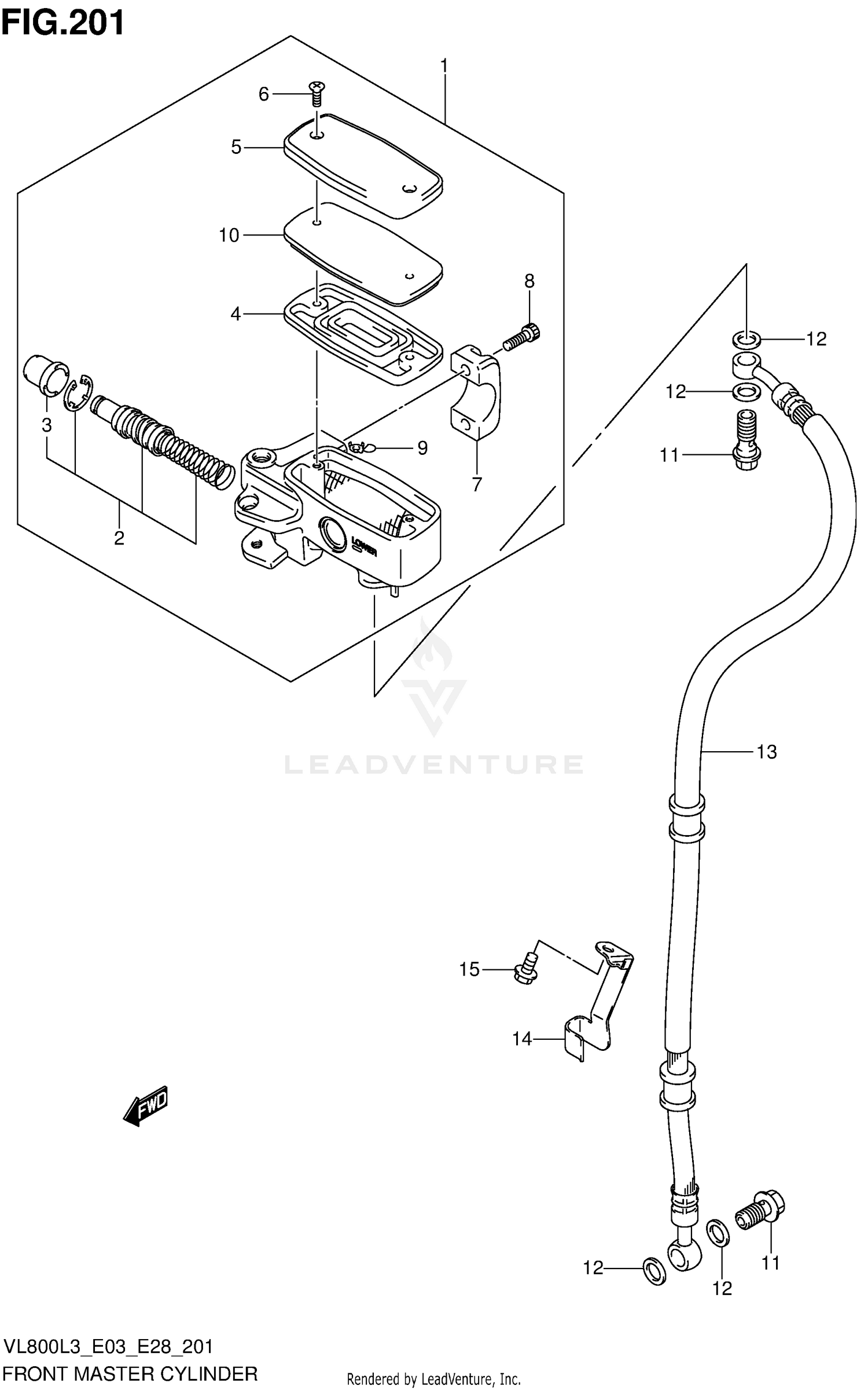

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY, FRONT MASTER
59600-10F71
|
$472.50 | ||
|
Available to order. Add to View Price |
|||
|
#2
.PISTON & CUP SET
59600-04810
|
$58.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOOT
59666-44300
|
$7.48 | ||
|
Available to order. Add to View Price |
|||
|
#4
DIAPHRAGM
59667-10F00
|
$11.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP
59669-10F10
|
$64.27 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
02122-04127
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER
59671-10F00
|
$55.51 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
07130-06207
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
PROTECTOR
59664-32F00
|
$13.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE
57437-10F00
|
$23.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
UNION
09360-10062
|
$8.08 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (10X15X1.5)
09161-10009
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE,FRONT BRAKE
59480-41F10
Superseded by 59480-41F11
|
$125.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP, BRAKE HOSE UPPER
59266-43H00
|
$16.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
01550-0612B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
