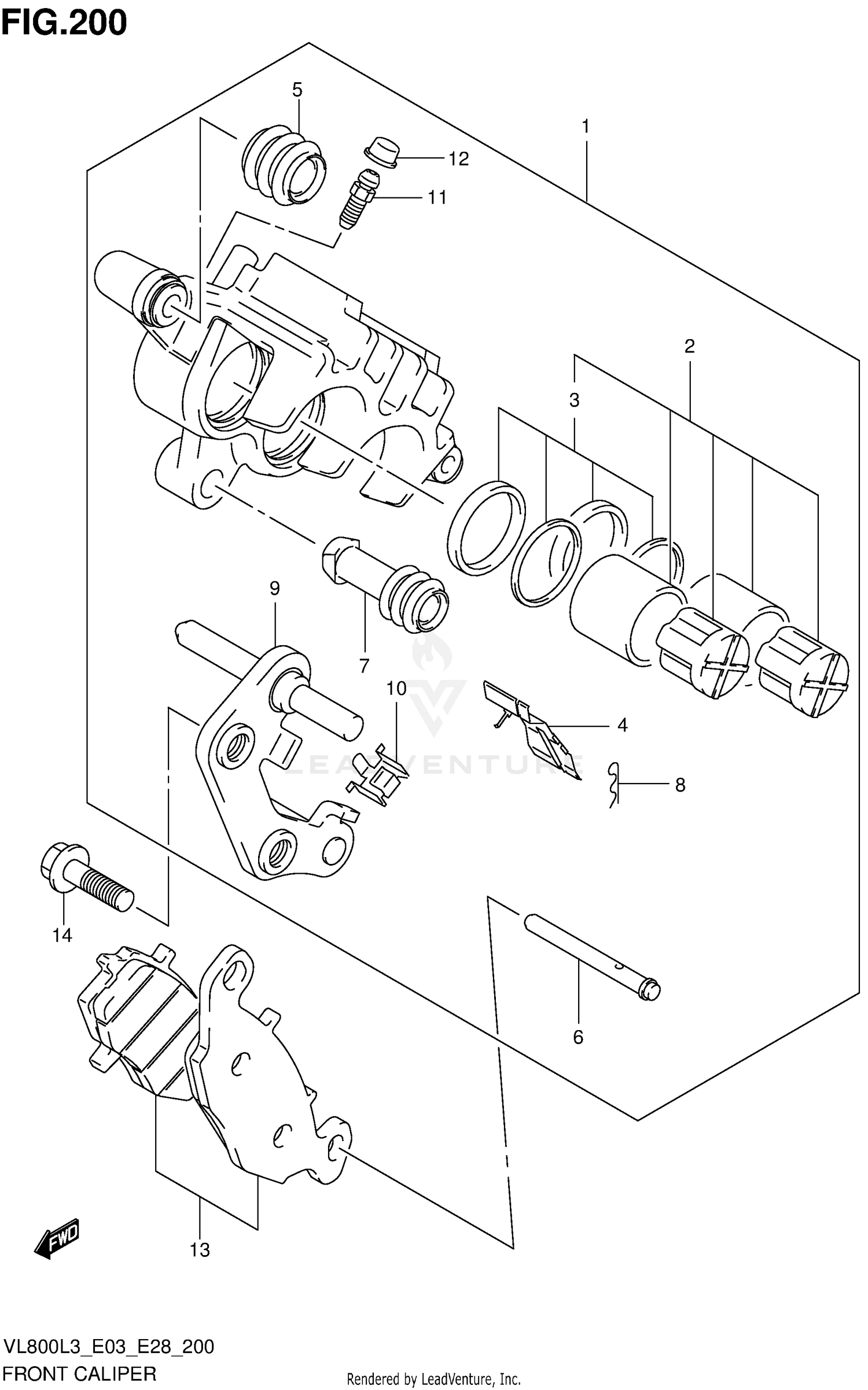

Front Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CALIPER ASSY,FRONT RH
59100-33DB1-999
|
$483.83 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON SET
59301-20810
|
$68.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL SET, PISTON
59300-33841
|
$19.09 | ||
|
Available to order. Add to View Price |
|||
|
#4
.SPRING,PAD RH
59115-33D00
|
$18.93 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOOT
59112-44B00
|
$11.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
.PIN,PAD
59141-44B01
|
$11.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
.INSULATOR,AXLE
59313-36500
|
$7.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
.CLIP,PAD PIN
69142-45000
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
.CARRIER,CALIPER RH
59150-33D01
|
$118.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
.GUIDE,PAD
59116-33D00
|
$10.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
BLEEDER
59121-18410
|
$10.78 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP
55156-66310
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#13
PAD SET
59102-33820
|
$67.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT (10X30)
09103-10379
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
