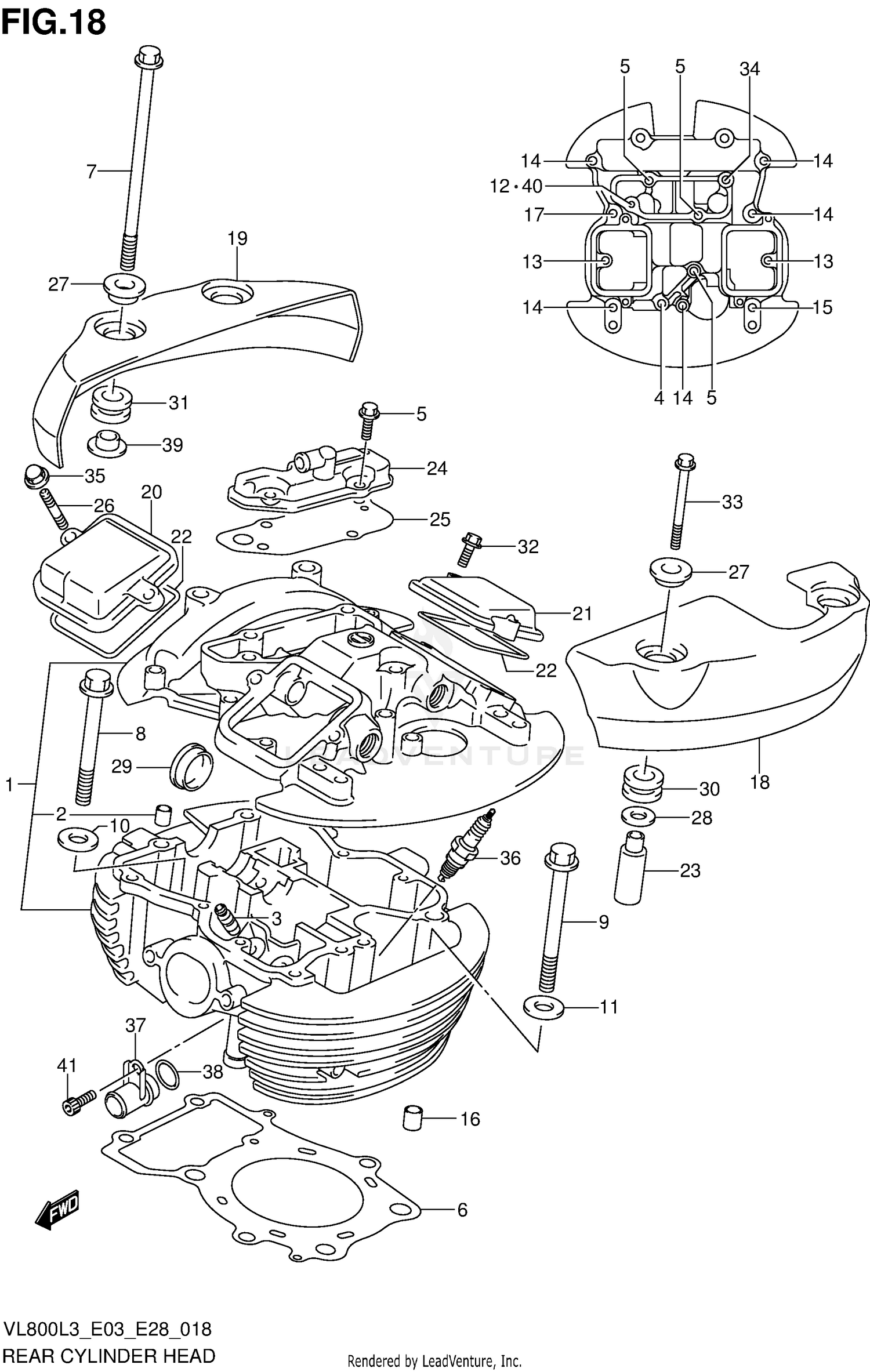

Rear Cylinder Head (vl800tl3 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY,CYLINDER REAR
11103-39G60
|
$1,135.61 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN
09206-11011
Superseded by 09206-11004
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, VALVE (OS 0.3)
11115-41F70
|
$44.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6X50)
09103-06304
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (6X55)
09103-06305
|
$1.67 | ||
|
Unavailable |
|||
|
#6
GASKET,CYLINDER HEAD REAR
11142-41F00
|
$48.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (8X250)
09103-08370
|
$17.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (10X155)
09103-10133
|
$9.97 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (10X165)
09103-10134
|
$9.97 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER (8.5X24X1.6)
09160-08130
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER (10.5X22X2.3)
09160-10039
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01547-0655A
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01547-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
01547-0630A
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
01547-0640A
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#16
KNOCK PIN
04211-13189
|
$2.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT
07120-0630B
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP,CYL HEAD COVER RR LH
11173-41FA0
|
$162.90 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAP, CYLINDER HEAD COVER RR
11174-41F00
|
$162.90 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAP, INSPECTION INTAKE
11175-38A11
|
$24.92 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAP, INSPECTION EXHAUST
11176-38A11
|
$24.92 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET,INSPECTION CAP
11177-38A00
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPACER, HEAD COVER CAP
11179-10F10
|
$13.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, BREATHER
11186-41FB0
|
$14.97 | ||
|
Unavailable |
|||
|
#25
GASKET,BREATHER COVER
11187-41F20
|
$8.25 | ||
|
Available to order. Add to View Price |
|||
|
#26
STUD BOLT
09108-06102
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER (6.5X18X1.6)
09160-06084
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER (9.5X20X1)
09160-09016
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLUG (OD:30)
09241-30004
|
$8.05 | ||
|
Available to order. Add to View Price |
|||
|
#30
CUSHION
09320-09016
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#31
CUSHION
09320-13015
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
01547-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT
01547-06557
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT
01547-0620A
|
$2.45 | ||
|
Unavailable |
|||
|
#35
NUT
09159-06093
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#36
SPARK PLUG (NGK, DPR7EA-9)
09482-00354
|
$4.10 | ||
|
Unavailable |
|||
|
#36
SPARK PLUG (NGK, DPR9EA-9)
09482-00330
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#36
SPARK PLUG (DENSO, X27EPR-U9)
09482-00331
|
$5.56 | ||
|
Available to order. Add to View Price |
|||
|
#36
SPARK PLUG (NGK, DPR8EA-9)
09482-00334
|
$3.64 | ||
|
Unavailable |
|||
|
#36
SPARK PLUG (DENSO, X24EPR-U9)
09482-00335
|
$6.61 | ||
|
Available to order. Add to View Price |
|||
|
#37
UNION, CYLINDER HEAD JOINT
17891-41F10
|
$19.86 | ||
|
Available to order. Add to View Price |
|||
|
#38
O RING (D:2.4,ID:15.8)
09280-16005
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#39
BUSH
09301-08007
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#40
GASKET (5.8X13X1.2)
09168-06023
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
BOLT
07130-0612A
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
