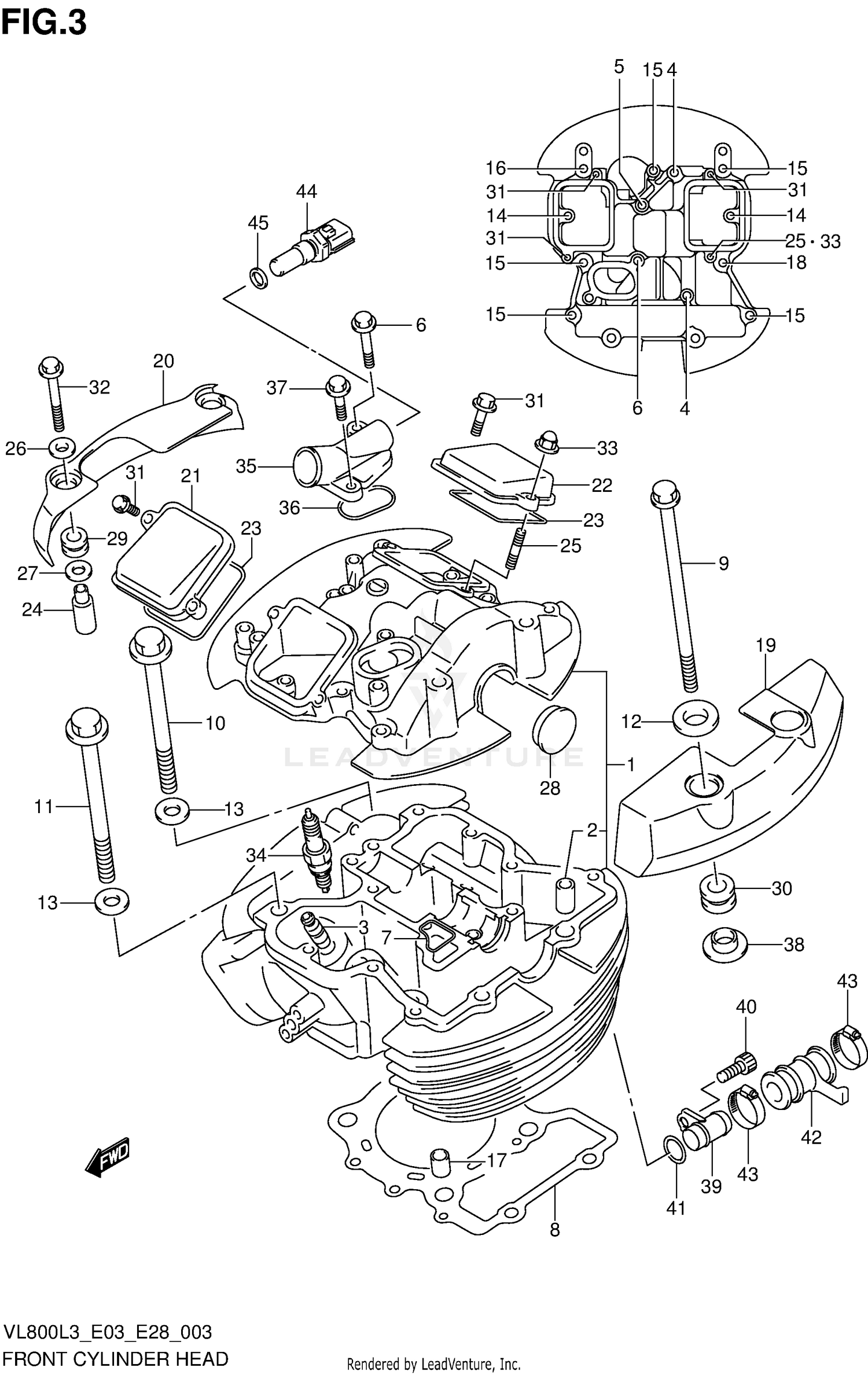

Front Cylinder Head (vl800l3 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY,CYLINDER FRONT
11101-39G60
|
$1,297.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN
09206-11011
Superseded by 09206-11004
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, VALVE (OS 0.3)
11115-41F70
|
$45.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6X50)
09103-06304
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (6X55)
09103-06305
|
$1.67 | ||
|
Unavailable |
|||
|
#6
BOLT
07130-0680B
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET,HEAD COVER
11123-38A00
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET,CYLINDER HEAD FRONT
11141-41F00
|
$51.32 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (8X250)
09103-08370
|
$17.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (10X155)
09103-10133
|
$10.32 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (10X165)
09103-10134
|
$10.32 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (8.5X24X1.6)
09160-08130
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER (10.5X22X2.3)
09160-10039
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
01547-0625A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
01547-0630A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01547-0640A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#17
KNOCK PIN
04211-13189
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT
07120-0630B
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAP,CYL HEAD COVER FR LH
11171-41FA0
|
$162.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAP, CYLINDER HEAD COVER FR
11172-41F00
|
$158.97 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAP, INSPECTION INTAKE
11175-38A11
|
$26.04 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP, INSPECTION EXHAUST
11176-38A11
|
$26.04 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET,INSPECTION CAP
11177-38A00
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPACER, HEAD COVER CAP
11179-10F10
|
$13.74 | ||
|
Available to order. Add to View Price |
|||
|
#25
STUD BOLT
09108-06102
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER (6.5X18X1.6)
09160-06084
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER (9.5X20X1)
09160-09016
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLUG (OD:30)
09241-30004
|
$8.33 | ||
|
Available to order. Add to View Price |
|||
|
#29
CUSHION
09320-09016
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#30
CUSHION
09320-13015
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT
01547-0620A
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
01547-06557
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT
09159-06093
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPARK PLUG (NGK, DPR7EA-9)
09482-00354
|
$4.22 | ||
|
Unavailable |
|||
|
#34
SPARK PLUG (NGK, DPR9EA-9)
09482-00330
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPARK PLUG (DENSO, X27EPR-U9)
09482-00331
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPARK PLUG (NGK, DPR8EA-9)
09482-00334
|
$3.75 | ||
|
Unavailable |
|||
|
#34
SPARK PLUG (DENSO, X24EPR-U9)
09482-00335
|
$6.86 | ||
|
Available to order. Add to View Price |
|||
|
#35
UNION, CYLINDER HEAD OUTLET
11181-41F00
|
$57.93 | ||
|
Available to order. Add to View Price |
|||
|
#36
O RING, OUTLET UNION
11182-38A00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT
07130-0620A
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#38
BUSH
09301-08007
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#39
UNION, CYLINDER HEAD JOINT
17891-41F10
|
$20.75 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT
07130-0612A
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#41
O RING (D:2.4,ID:15.8)
09280-16005
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#42
HOSE, HEAD JOINT
17854-41F01
|
$20.70 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLAMP
09402-28513
|
$8.81 | ||
|
Available to order. Add to View Price |
|||
|
#44
SENSOR, WATER TEMP
13650-57F00
|
$136.54 | ||
|
Available to order. Add to View Price |
|||
|
#45
GASKET (12X17X1)
09168-12017
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
