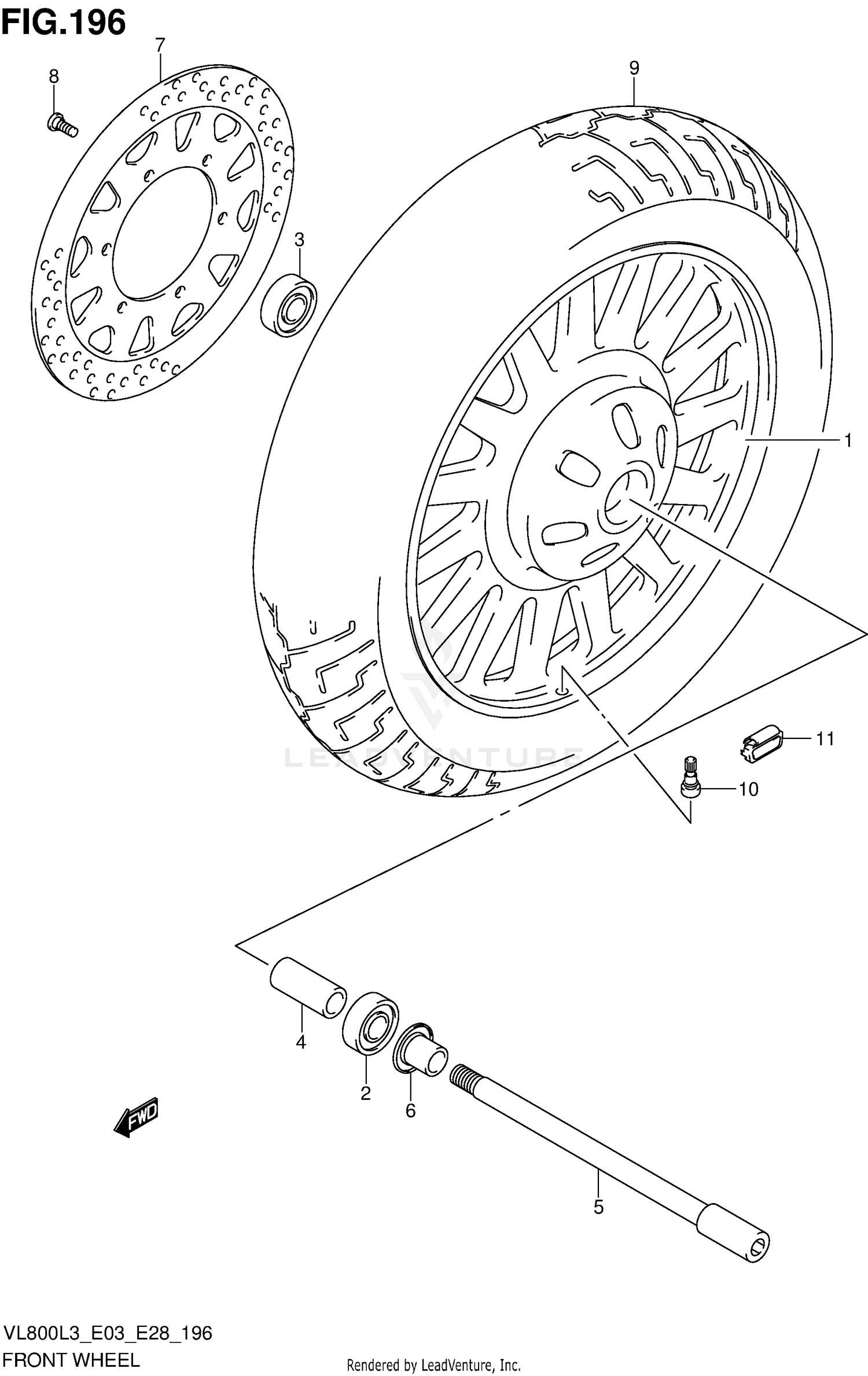

Front Wheel (vl800cl3 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, FRONT (16M/CXMT3.00)
54111-41F10-20H
|
$1,082.23 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
08133-62037
Superseded by 08133-6203B
|
$22.08 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
08143-62037
|
$23.17 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER (17.5X25X102)
09180-17080
|
$32.14 | ||
|
Available to order. Add to View Price |
|||
|
#5
AXLE, FRONT
54711-41F00
|
$124.32 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER,FRONT AXLE RH
54740-32C00
|
$20.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
DISC, FRONT BRAKE RH
59211-41F00
|
$402.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (8X21)
09106-08160
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#9
TIRE,FR(130/90
55110-41F20
Superseded by 55110-41F21
|
$242.77 | ||
|
Available to order. Add to View Price |
|||
|
#10
VALVE ASSY, WHEEL RIM (TR412)
43130-24A00
|
$11.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BALANCER, WHEEL NO.1
43222-73H10
|
$6.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BALANCER, WHEEL NO.2
43224-73H10
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#11
BALANCER, WHEEL NO.3
43226-73H10
|
$8.52 | ||
|
Available to order. Add to View Price |
|||
