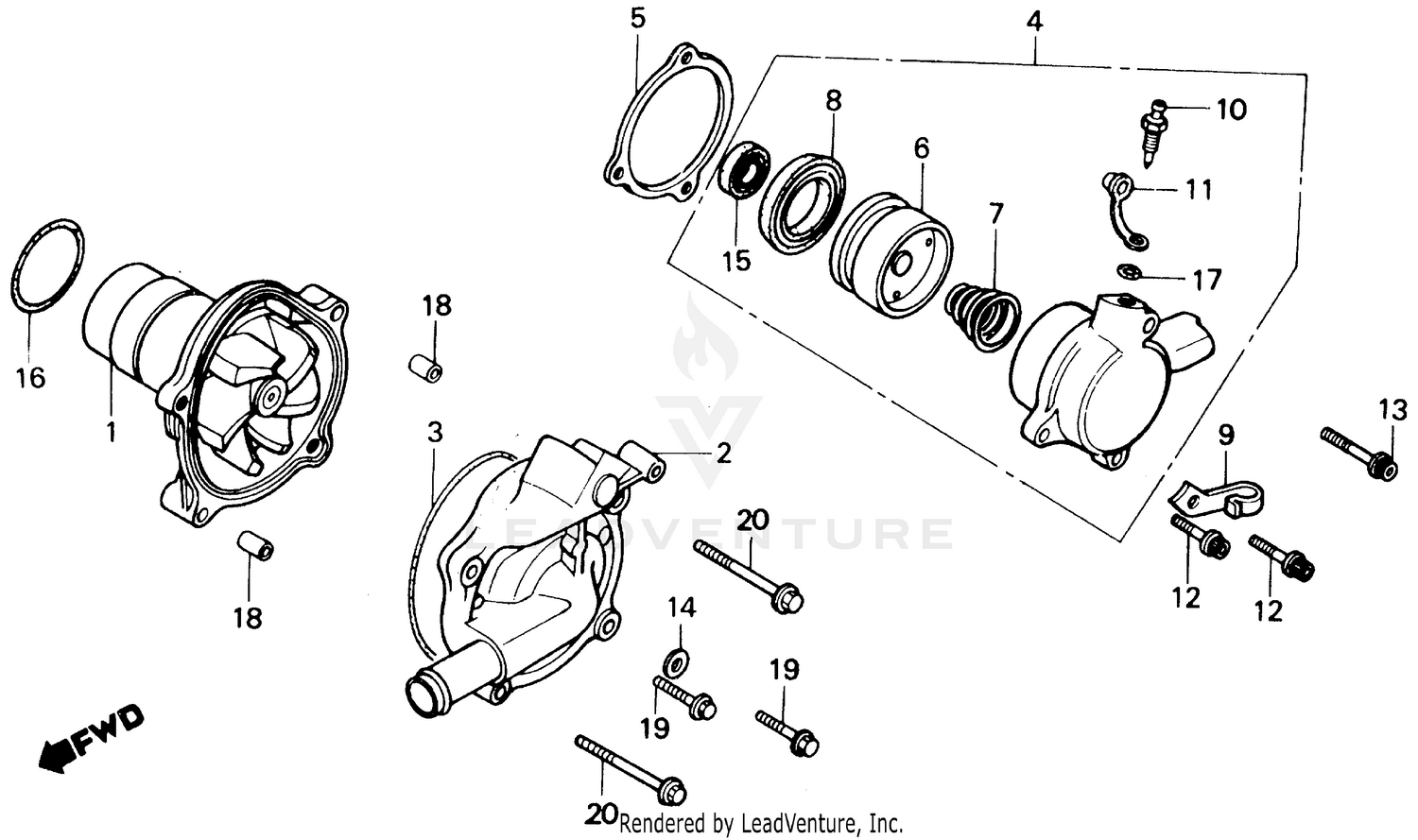

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WATER PUMP
19200-ME9-010
Superseded by 19200-ME9-040
|
$174.48 | ||
|
Unavailable |
|||
|
#1
WATER PUMP
19200-ME9-020
Superseded by 19200-ME9-040
|
$174.48 | ||
|
Unavailable |
|||
|
#1
WATER PUMP
19200-ME9-030
Superseded by 19200-ME9-040
|
$174.48 | ||
|
Unavailable |
|||
|
#1
WATER PUMP
19200-ME9-040
|
$174.48 | ||
|
Unavailable |
|||
|
#2
COVER, WATER PUMP
19221-MAA-000
|
$95.31 | ||
|
Unavailable |
|||
|
#2
COVER, WATER PUMP
19221-MK7-771
Superseded by 19221-MAA-000
|
$95.31 | ||
|
Unavailable |
|||
|
#2
COVER, WATER PUMP
19221-MK7-772
Superseded by 19221-MAA-000
|
$95.31 | ||
|
Unavailable |
|||
|
#3
GASKET, WATER PUMP COVER
19226-ME9-000
|
$7.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
CYLINDER ASSY., SLAVE
22860-MR6-670
|
$109.18 | ||
|
Unavailable |
|||
|
#5
INSULATOR, CLUTCH SLAVE CYLINDER
22862-MB0-000
|
$11.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
PISTON, SLAVE CYLINDER
22863-MB0-003
|
$38.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, SLAVE CYLINDER
22864-MB0-003
|
$7.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUP, PISTON
22865-MB0-003
|
$16.80 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP, CABLE
32111-MG8-000
|
$3.12 | ||
|
Unavailable |
|||
|
#10
SCREW, BLEEDER
43352-MG9-006
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, BLEEDER
43353-MG9-006
Superseded by 43353-461-771
|
$6.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
CAP, BLEEDER
43353-443-761
Superseded by 43353-461-771
|
$6.35 | ||
|
Unavailable |
|||
|
#11
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE SOCKET (6X25)
90080-MG8-000
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE SOCKET (6X35)
90081-MG8-000
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SEALING (6MM)
90441-706-000
|
$1.46 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
OIL SEAL (8X18X5) (NISSIN)
91209-MB0-003
|
$5.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
O-RING (32.95X2.62) (ARAI)
91302-MB0-013
|
$3.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
O-RING (5.8X1.9) (NISSIN)
91355-MG9-006
|
$3.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
PIN A, DOWEL (8X14) (YAMADA)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X45)
95701-06045-00
Superseded by 95701-06045-07
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X45)
95701-06045-07
|
$2.27 | ||
|
Unavailable |
|||
