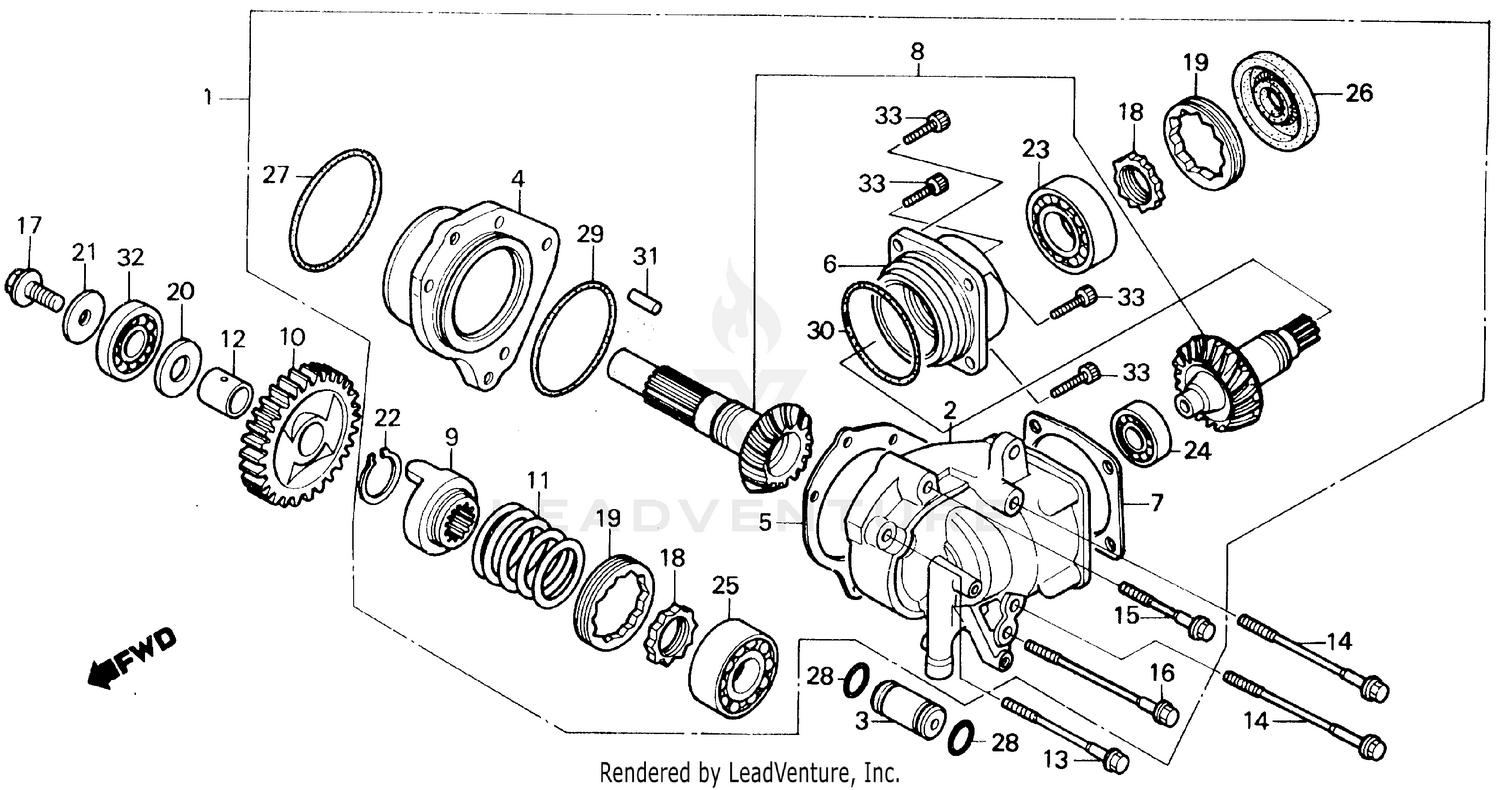

Cross Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE ASSY., SIDE GEAR
21100-MR6-670
|
$1,243.84 | ||
|
Unavailable |
|||
|
#2
CASE, SIDE GEAR
21200-MK7-670
|
$559.70 | ||
|
Unavailable |
|||
|
#3
ORIFICE, SIDE GEAR CASE
21215-ME9-000
|
$10.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER, FINAL DRIVESHAFT BEARING
21281-MK7-670
|
$108.81 | ||
|
Unavailable |
|||
|
#5
SHIM, FINAL DRIVESHAFT (0.40)
21311-MG8-000
|
$15.28 | ||
|
Unavailable |
|||
|
#5
SHIM, FINAL DRIVESHAFT (0.45)
21312-MG8-000
|
$16.47 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHIM, FINAL DRIVESHAFT (0.50)
21313-MG8-000
|
$16.14 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHIM, FINAL DRIVESHAFT (0.55)
21314-MG8-000
|
$15.59 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHIM, FINAL DRIVESHAFT (0.60)
21315-MG8-000
|
$15.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOLDER, CROSS SHAFT BEARING
21371-MB0-000
|
$126.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIM, CROSS SHAFT (0.20)
21377-MB0-770
|
$26.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIM, CROSS SHAFT (0.25)
21378-MB0-770
|
$25.27 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIM, CROSS SHAFT (0.30)
21379-MB0-770
|
$25.27 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIM, CROSS SHAFT (0.35)
21380-MB0-770
|
$25.27 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIM, CROSS SHAFT (0.40)
21381-MB0-770
|
$28.84 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIM, CROSS SHAFT (0.45)
21382-MB0-770
|
$28.84 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIM, CROSS SHAFT (0.50)
21383-MB0-770
|
$28.84 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIM, CROSS SHAFT (0.55)
21384-MB0-770
|
$28.84 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIM, CROSS SHAFT (0.60)
21385-MB0-770
|
$28.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT SET, CROSS (NOT AVAILABLE)
23200-MR6-670
|
$246.51 | ||
|
Unavailable |
|||
|
#9
LIFTER, DAMPER
23721-ME9-000
|
$87.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, DAMPER SHAFT (29T)
23726-MR6-670
|
$108.68 | ||
|
Unavailable |
|||
|
#11
SPRING, DAMPER
23732-MK7-670
|
$32.78 | ||
|
Unavailable |
|||
|
#12
COLLAR (20X24X18.5)
23733-ME9-000
|
$19.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, UBS (8X60)
90029-MG8-000
|
$4.47 | ||
|
Unavailable |
|||
|
#14
BOLT, UBS (8X105)
90030-MG8-000
|
$9.42 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, UBS (8X45)
90031-MG8-000
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, UBS (8X85)
90032-MG8-000
|
$5.31 | ||
|
Unavailable |
|||
|
#17
BOLT, SPECIAL (10MM)
90037-ME9-000
|
$8.27 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, LOCK (30MM)
90241-MB0-000
|
$25.56 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, LOCK (64MM)
90242-MB0-000
|
$39.40 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, THRUST (20MM)
90451-426-000
|
$5.84 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER (10.2MM)
90459-438-000
|
$7.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
CIRCLIP (OUTER) (28MM)
90602-463-000
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, RADIAL BALL (5206)
91008-300-008
Superseded by 91012-MG7-003
|
$108.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BEARING, BALL (6303) (KOYO)
91011-MB0-003
|
$35.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BEARING, BALL (6303) (KOYO)
91011-MB0-004
Superseded by 91011-MB0-003
|
$35.00 | ||
|
Unavailable |
|||
|
#25
BEARING, RADIAL BALL (5206)
91012-MG7-003
|
$108.78 | ||
|
Unavailable |
|||
|
#26
OIL SEAL (25X66X8.5) (ARAI)
91205-MG7-003
|
$22.75 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING (69.5X2.25) (ARAI)
91300-MG7-003
|
$11.51 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING (4.8X1.9) (NOK) O-RING (7.7X2.3) (ARAI)
91307-422-000
Superseded by 91313-MA6-005
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING (4.8X1.9) (NOK)
91313-MA6-005
|
$2.98 | ||
|
Unavailable |
|||
|
#29
O-RING (64.5X3) (ARAI)
91310-MG7-003
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-RING (69.5X3) (ARAI)
91314-MG7-003
|
$11.20 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN, DOWEL (10X20)
94302-10200
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING, RADIAL BALL (6304)
96100-63040-00
|
$17.45 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, SOCKET (8X22)
96700-08022-17
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
