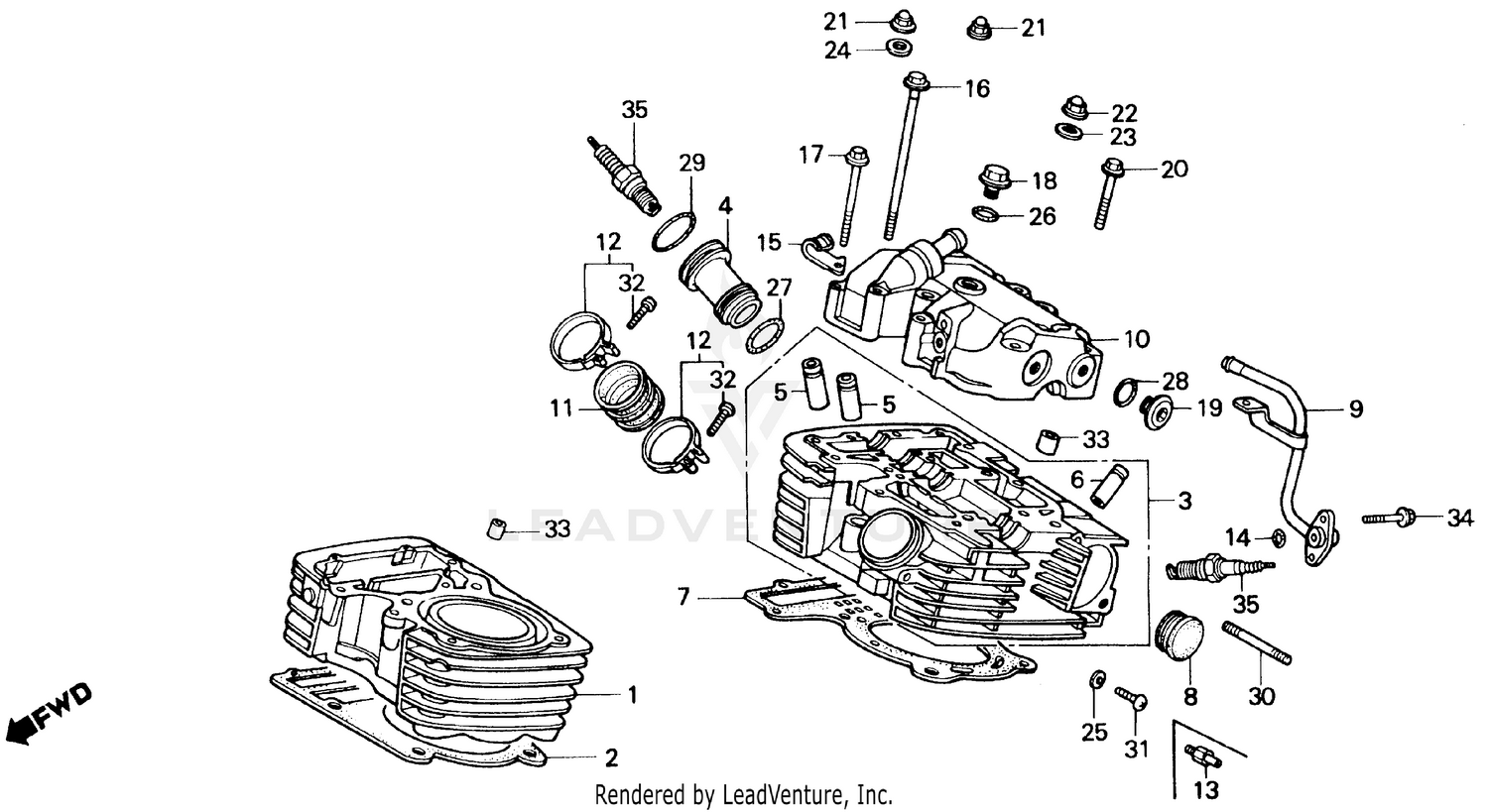

Rear Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER, RR.
12110-MR6-670
|
$483.41 | ||
|
Unavailable |
|||
|
#2
GASKET, CYLINDER
12191-MK7-671
|
$29.27 | ||
|
Unavailable |
|||
|
#3
CYLINDER HEAD, RR.
12220-MR6-670
|
$656.53 | ||
|
Unavailable |
|||
|
#4
SLEEVE, PLUG
12225-ME9-000
|
$37.35 | ||
|
Unavailable |
|||
|
#5
GUIDE, VALVE
12231-MG8-305
|
$24.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUIDE, IN VALVE
12233-MG8-305
Superseded by 12233-MG8-405
|
$20.26 | ||
|
Unavailable |
|||
|
#6
GUIDE, IN VALVE
12233-MG8-405
|
$20.26 | ||
|
Unavailable |
|||
|
#7
GASKET, CYLINDER HEAD
12251-ML5-003
Superseded by 12251-MR5-670
|
$29.24 | ||
|
Unavailable |
|||
|
#7
GASKET, CYLINDER HEAD
12251-MR5-670
|
$29.24 | ||
|
Unavailable |
|||
|
#8
PLUG, CAMSHAFT
12312-ME9-750
|
$12.27 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, RR. CYLINDER HEAD
12320-MR6-670
|
$233.10 | ||
|
Unavailable |
|||
|
#11
INSULATOR, CARBURETOR (NOT AVAILABLE)
16211-MK7-770
|
$11.71 | ||
|
Unavailable |
|||
|
#12
BAND, INSULATOR
16219-ME9-000
|
$12.56 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP, IGNITION WIRE
32921-MR6-000
|
$3.86 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE (8X150)
90015-MG8-000
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (8X150)
90015-MR6-670
Superseded by 90015-MG8-000
|
$7.62 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE (6X55)
90017-MR6-670
|
$3.59 | ||
|
Unavailable |
|||
|
#18
BOLT, SEALING (14MM)
90047-MR6-670
|
$12.62 | ||
|
Unavailable |
|||
|
#19
BOLT, SEALING (22MM)
90048-MR6-670
|
$10.25 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE (8X55)
90051-ME9-000
Superseded by 95701-08055-00
|
$2.57 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE (8X55)
95701-08055-00
|
$2.57 | ||
|
Unavailable |
|||
|
#21
NUT, FLANGE CAP (8MM)
90208-438-000
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, CAP (10MM)
90210-438-000
Superseded by 90201-HA0-000
|
$8.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WASHER (10MM)
90403-ML4-610
Superseded by 90403-ML4-611
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SEALING (8MM)
90441-MG8-000
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SEALING (5MM)
90452-323-000
|
$1.91 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING (13.8X1.9)
91301-KJ9-000
Superseded by 91301-PC0-003
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING (13.8X1.9)
91301-PC0-003
|
$3.04 | ||
|
Unavailable |
|||
|
#27
O-RING (27.4X2.4) (ARAI)
91304-MG7-003
|
$8.09 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING (21.5X2)
91310-MB0-003
|
$3.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
O-RING (35.3X2.4) (NOK)
91351-MG7-004
|
$10.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BOLT 2, STUD (8X35)
92900-08035-0B
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT 2, STUD (8X35)
92900-08035-0E
Superseded by 92900-08035-0B
|
$2.57 | ||
|
Unavailable |
|||
|
#31
SCREW, PAN (5X8)
93500-05008-0A
|
$0.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
SCREW, PAN (5X25)
93500-05025-0G
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN A, DOWEL (14X20)
94301-14200
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
SPARK PLUG (DPR6EA-9) (NGK)
98069-56916
|
$2.91 | ||
|
Unavailable |
|||
|
#35
SPARK PLUG (X20EPR-U9) (DENSO)
98069-56926
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#35
SPARK PLUG (DPR7EA-9) (NGK)
98069-57916
|
$2.91 | ||
|
Unavailable |
|||
|
#35
SPARK PLUG (X22EPR-U9) (DENSO)
98069-57926
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#35
SPARK PLUG (DPR8EA-9) (NGK)
98069-58916
|
$2.91 | ||
|
Unavailable |
|||
|
#35
SPARK PLUG (X24EPR-U9) (DENSO)
98069-58926
|
$2.80 | ||
|
Unavailable |
|||
